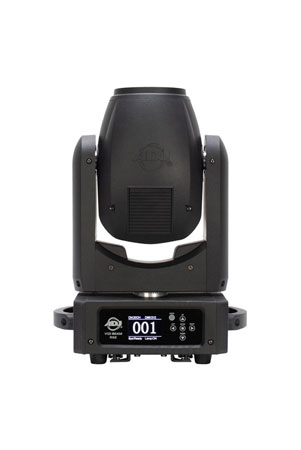

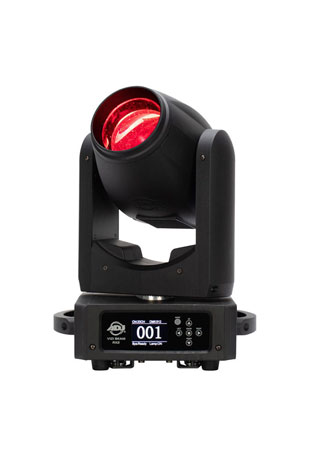

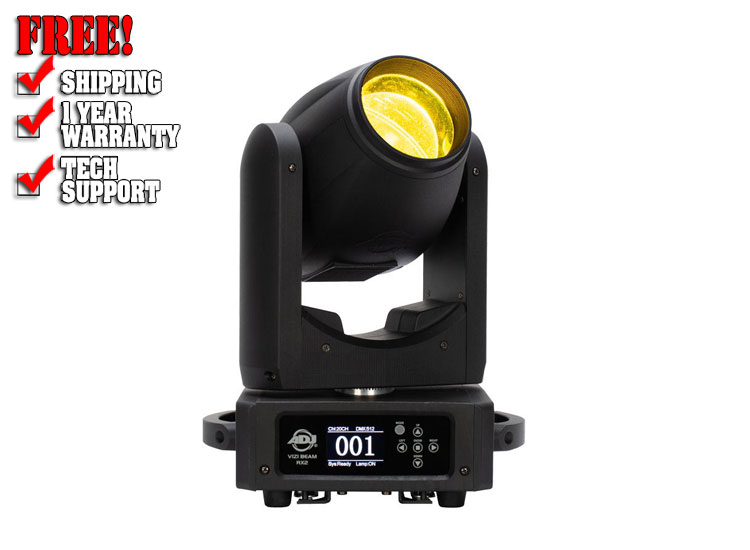

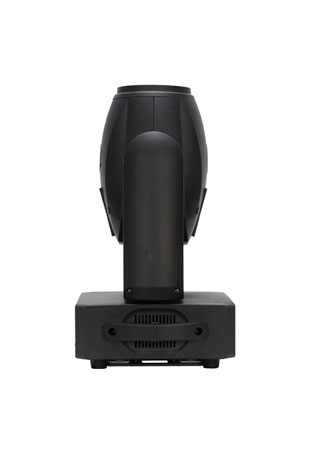

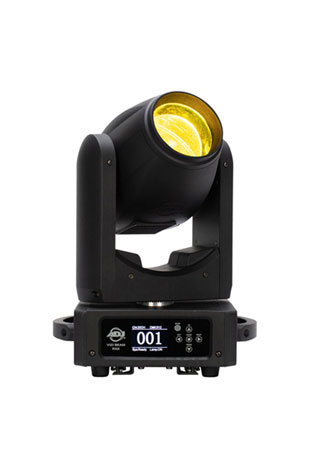

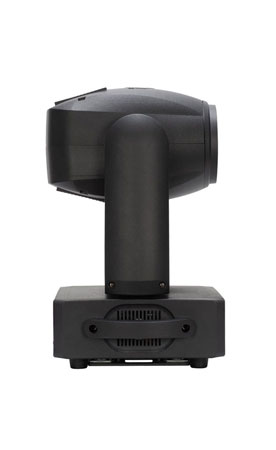

ADJ Vizi Beam RX2

The ADJ Lighting Vizi Beam RX2 RX2 is a compact, high-performance moving head beam fixture that features a 100W Osram Sirius HRI discharge lamp, a razor-sharp 2-degree beam, two prism effects, and a host of high-performance features for the modern lighting professional.

Specification

Light Source:

• OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
• Color temperature: 9000K (+/- 300K)

Features:

• On-Board Wireless DMX
• Motorized Focus + 16-bit fine focus
• 2-degree beam angle
• Frost Filter to create wash effect
• High quality glass lens
• 2 Rotating prisms:
• 0-100% smooth dimming
• Various strobe speeds
• OTA, wireless, firmware updates
• Fan cooled

Color Wheel:

• 14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) & UV)
• Indexable color wheel for split colors

GOBO Wheel:

• 15 static GOBOs + open (3 GOBOs are beam reducers)
• GOBO Shake Effect

Prism Wheels:

• 2 Rotating prisms
• 16 facet circular and 4 facet linear prisms

Control:

• Protocols: DMX512 & RDM
• Control Mode: DMX512 & Manual (On-board Controls)
• 2 DMX Channel Modes: 12/16 Channels
• Color LCD display with 4-button function menu
• 0-100% smooth dimming
• Various strobe speeds
• With Wired Digital Communication Network

Pan/Tilt:

• Pan: 540 degrees (plus 16-bit fine pan)
• Tilt: 270 degrees (plus 16-bit fine tilt)
• 3 Phase, High Speed, Pan/Tilt motors

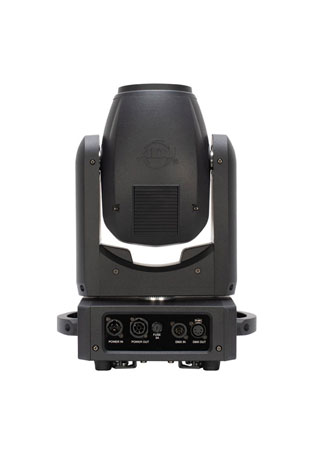

Connections:

• DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
• Power Connections: Outdoor locking In/Out connections to daisy chain power

Electrical:

• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 168W (@120V), 157W (@230V)
• Fuze Protected: 3.15A

Dimensions & Weight:

• Dimension: 9" (L) x 12" (W) x 16.3" (H) (230 x 304 x 416mm)
• Weight: 16.5 lbs. / 7.5 kg.

Approvals / Ratings

• CE
• cETLus (Pending)

What's Included:

• 2x Omega Brackets (107 Type)
• 2M, outdoor locking 14AWG power cord
