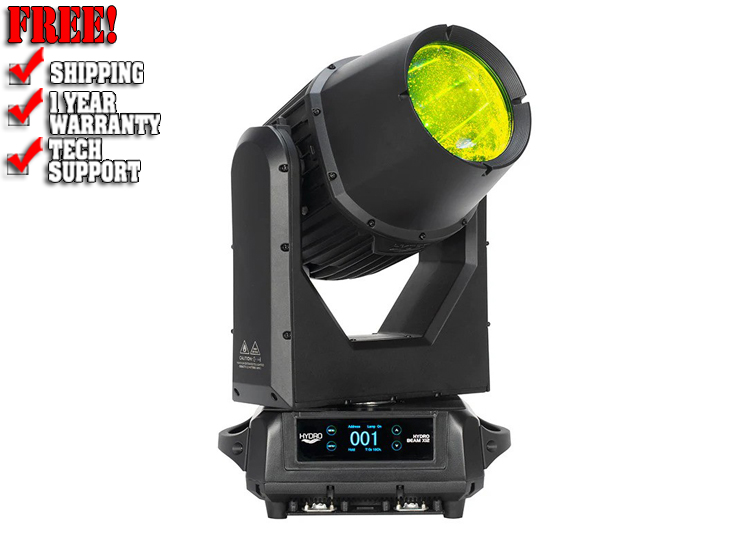

ADJ Hydro Beam X12

Motorized zoom allows the fixture's beam angle to be altered between a tight 8-degrees and wide 41-degrees, while two frost filters can also be applied to soften the beam edges and further widen the beam angle. The medium frost filter is designed to lightly blur the edges of GOBO/prism effects, while the heavy frost filter allows the fixture to be used for wash lighting duties. An almost limitless spectrum of colors can be generated by the fixture thanks to CMY color mixing, while a separate variable CTO flag allows for color-corrected white light output. In addition, a color wheel is also provided with seven dichroic color filters, including CTB and High CRI options.

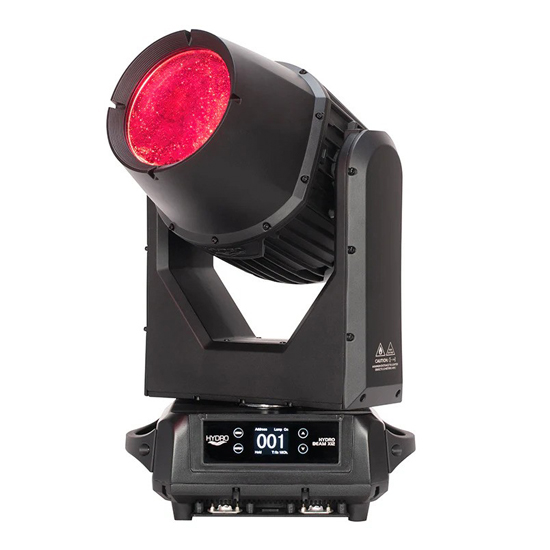

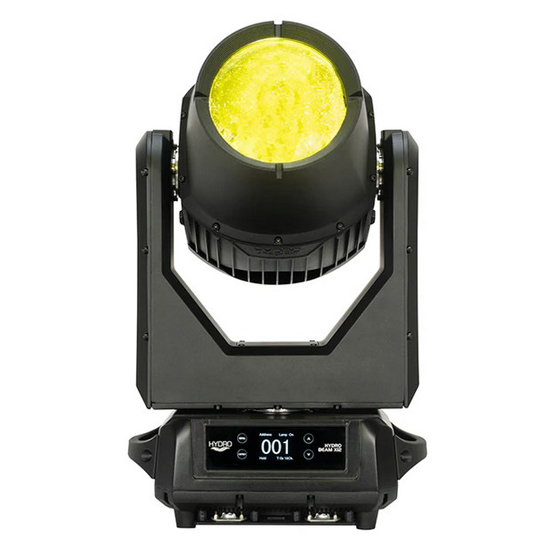

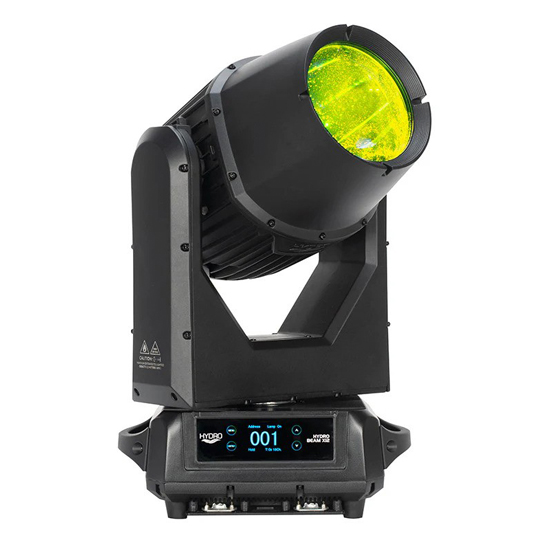

Designed to create stunning aerial effects both inside and outdoors, the ADJ Hydro Beam X12 is a powerful and feature-packed moving head beam fixture with an IP65 'outdoor' rating. Harnessing the power of the latest Philips® Platinum 12R LL MSD Discharge Lamp technology, focussed through high quality optics, it creates a piercing beam of light with a tight 2-degree beam angle.

Designed for both indoor and outdoor use, the Hydro Beam X12 has a robust construction and an IP65-rating. Its durable casing protects it from dust, sand, moisture, and liquids, making it ideal for use in all situations from sandy beach parties to rainy festival fields. Perfect for all kinds of outdoor events, as well as installation in open-air clubs and other outside entertainment spaces, this ground-breaking fixture also offers an extended operational life and reduced maintenance requirement when installed indoors, due to its sealed casing design.

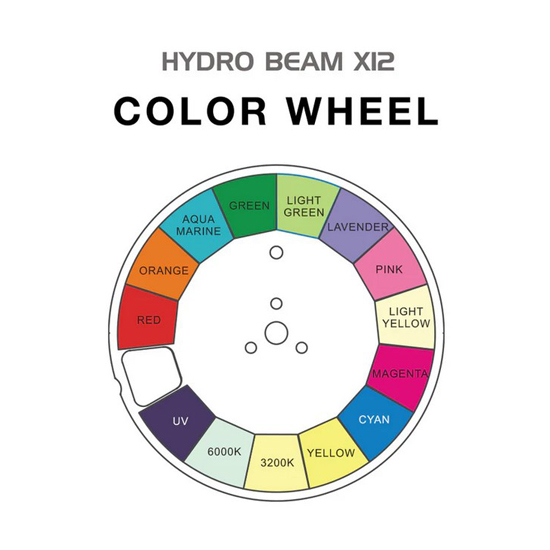

The Hydro Beam X12's carefully curated selection of beam-shaping tools deliver the functionality that lighting designers need, while allowing the fixture to remain compact and agile. It features 14 colors + white, including UV, CTO (3200K) and CTB (6000K), with support for split colors and bidirectional scrolling. A static GOBO wheel features 16 patterns (plus open) optimized for aerial effects, including four beam reducers, and offers GOBO shake and bidirectional GOBO scrolling effects. The fixture also includes motorized focus, a Frost Filter to create a wash effect, and two rotating prisms (6-facet linear and 24-facet circular).

Features:

• SKU: HYD120
• DMX512 RDM compatible
• 2° beam angle
• High quality, optical glass lens
• Motorized Focus + 16-bit fine focus
• Frost Filter to create wash effect
• 2 Rotating prisms: 6-facet Linear and 24-facet Circular
• 0-100% smooth dimming
• Various strobe effects with speed control
• Wifly EXR, wireless DMX onboard
• USB firmware update port
• Fan cooled

Specification

• Light Source:
  • Philips, 260W, MSD Platinum 12R LL Discharge Lamp (6,000 hours)
  • Color temperature: 7200K
  • LUX: 357,728 @10M

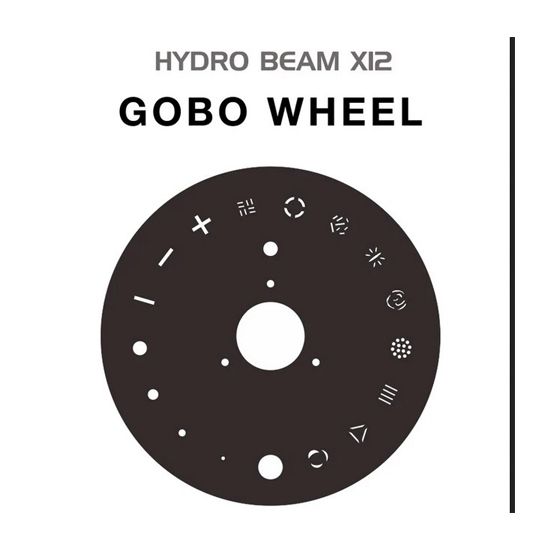

• GOBO Wheel:
  • 16 static GOBOs + open (4 GOBOs are beam reducers)
  • GOBO Shake Effect
  • Bidirectional GOBO wheel scrolling
• Prisms:
  • 6-facet linear and 24-facet circular
  • Bidirectional prism rotation for each prism
  • Prisms can be overlayed
• Control:
  • Configurable via RDM
  • Controllable via DMX512 (hardwire or Wifly EXR wireless, sold separately)
  • 2 DMX Channel Modes: 14 / 18 Channels
  • Color LCD display with 4-button function menu
  • 5 Dimmer Curves
  • 0-100% smooth dimming
  • Various strobe effects with speed control
  • USB firmware update port
  • With Wired Digital Communication Network
• Pan/Tilt:
  • Pan: 540° (plus 16-bit fine pan)
  • Tilt: 270° (plus 16-bit fine tilt)

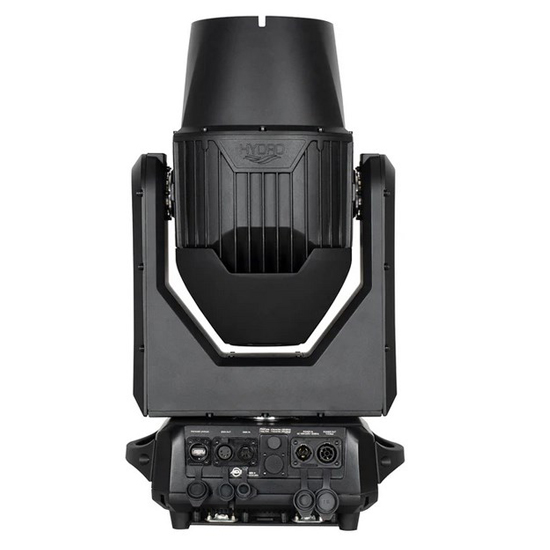

• Connections:
  • DMX: 5-pin DMX In/Out
  • Power: IP65 Locking Power In/Out
• Electrical:
  • Multi-voltage: 100-240V, 50/60Hz
  • Max power consumption: 412W (@120V), 405W (@230V)
  • Ambient Temperature Range: -10°C ~ 40°C
• Dimensions & Weight:
  • Dimensions: 14" (L) x 9.4" (W) x 24.4" (H) / 356 x 240 x 621mm
  • Weight: 48 lbs. / 21.8 kg
• What's Included:
  • Omega Brackets for hanging
  • 4.92ft. / 1.5m IP65 Locking power cable
• Optional Road Cases:
  • DRC MHX: two Hydro Beam X12 fit in the DRC MHX Road Case
• Approvals / Ratings:
  • cETLus (Control #4000358)
  • CE Certified
  • IP65 Rated
