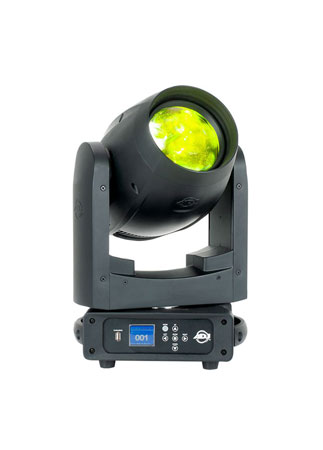

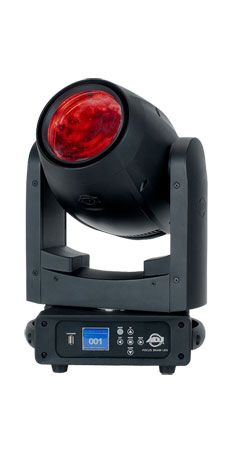

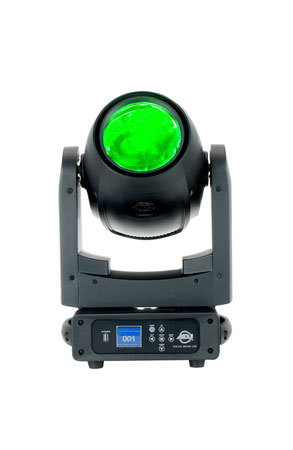

ADJ Focus Beam LED

80W LED Beam moving head with a sharp 2.5-degree beam, motorized focus, two prims wheels and a built-in frost filter for wash effects.

Specification

Light Source:

• 1x 80W Cool White LED Engine
• 2.5° Beam Angle
• Color Temperature: 7400K
• 50,000 Hour Average LED Life

Features:

• Control Protocol: DMX & RDM (Remote Device Management)
• DMX Modes: 2 (16 & 18)
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Dim Speed control (0.1~10 Seconds)
• Dimming: 0 - 100%
• Strobe & pulse control
• Motorized Focus
• Linear Frost 0-100% (Wash effect)
• 2 Prisms: 6 & 8 Facet, Indexable and Rotatable
• USB firmware update port
• Adjustable LED Refresh Rates (900~25k Hz)
• Adjustable Gamma Settings (1.0-2.8)
• With Wired Digital Communication Network
• Display: Touch display with 5-button touch menu

Color Wheel:

• 13 dichroic colors + white

GOBO Wheel:

• Metal wheel with 15 fixed GOBOs + Open
• GOBO shake effect

Prism Wheels:

• Prism Wheel 1: Rotatable 8-facet Circular
• Prism Wheel 2: Rotatable 6-facet Linear
• Prism Indexing with overlay feature

Control:

• Control Modes: DMX512, RDM (Remote Device Management)
• & Stand Alone Internal Programs
• 2 DMX Channel Modes: 16 & 18 channels
• 16-Bit Pan, Tilt & Dimmer control

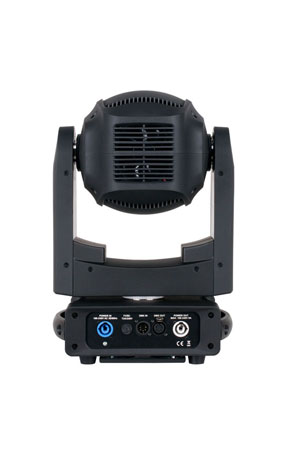

Connections:

• DMX Connections: 5-pin Locking XLR In & Out
• Power Connections: Seetronic Locking Power In & Out

Pan/Tilt:

• Pan & Pan Fine: 630 degrees
• Tilt & Tilt Fine: 270 degrees

Electrical:

• Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)
• Maximum Power Consumption: 136W @ 120V
• Daisy chain: 15 units @ 120V; 30 units @ 230V

Dimensions & Weight:

• Dimensions (LxWxH): 10.96" x 7.55" x 17.61" / 278x191x447mm
• Weight: 27 lbs. (12.25 kg)

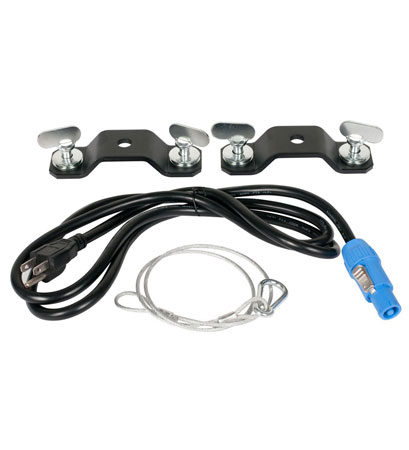

What's Included:

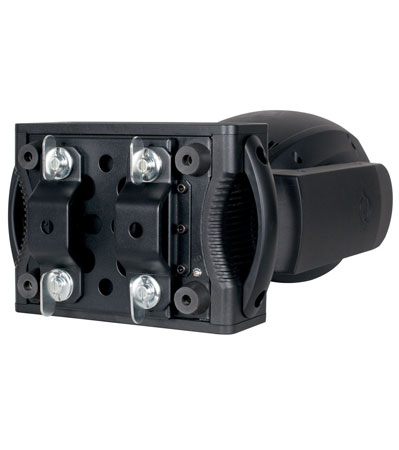

• 2x Omega Brackets
• 1x Seetronic Power Locking Power Cable

Optional Road Cases:

• DRC MH: 2 Focus Beam LED fit in the DRC MH Road Case
• QRC MH: 4 Focus Beam LED Pearl fit in the QRC MH Road Case
