Chauvet 3 Stage Pack

Overview

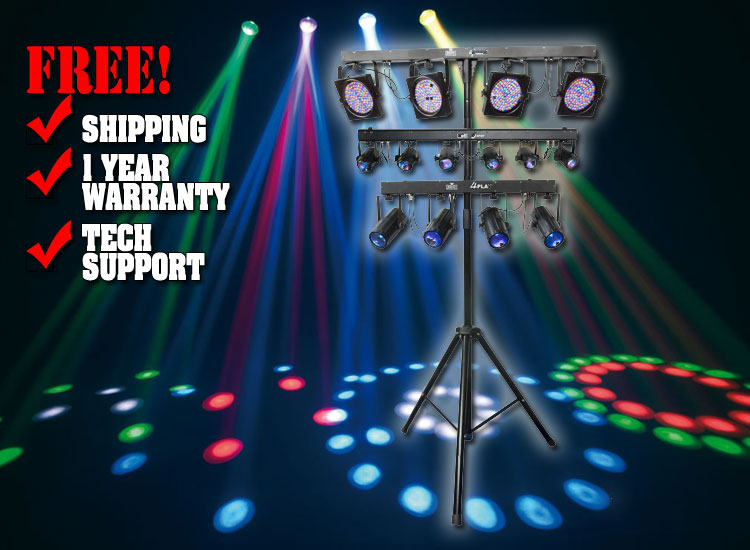

Stage system featuring three of Chauvet's most popular LED lights.

The 4BAR is a pack-and-go must have for DJs, bands and other performers who want a complete LED wash light system. This 15-channel DMX system includes a foot switch, adjustable tripod, packing bag and transport case. Each of the four low-profile lights can be positioned independently. With 108 red, green and blue LEDs per light, the 4BAR offers built-in automated and sound activated programs accessible with or without the foot switch.

Features:

• 15-channel DMX-512 LED wash light system
• RGB control of 4 separate lights
• Built-in automated programs via DMX
• Built-in sound activated programs DMX
• Includes footswitch, tripod with bag and transport case for lights
• Independent positioning of each light
• Low-profile lights are 1.7in deep
• Adjustable stand from 56in to 91in

Control Features (Footswitch):

• Trigger built-in static or automated programs (includes RGB fades)
• Instantly set any program to sound active
• Instantly blackout any program

Specifications:

• Beam angle: 21° (per light)
• Field angle: 33° (per light)
• Lux: 980 @ 1m (per light)
• Light source: 432 (144 red, 144 green, 144 blue) 10mm LEDs (108 per light)
• Power and current: 120V, 60Hz: 48W, 0.4A operating, 0.8A inrush
• AC power: Autoswitching 100-240V 50/60Hz
• Weight: 29lbs (13.2kg) (includes footswitch)
• Size: 47in x 91in (1193mm x 2311mm)



The 4PLAY™ provides a ready-to-go light bar for the entertainer on the go. The bar is fitted with four LED moonflowers each containing 57 red, green, blue and white diodes to produce razor-sharp rotating beams. The unit features 6-channels of DMX control with built-in automated and sound-activated programs. The 4PLAY™ fits onto most standard tripods, including speaker stands and the 4BAR™ tripod. And, it comes with a free travel bag.

• 6-channel DMX-512 LED beam effect system
• Individual control of red, green, blue and white LEDs within each light (4 total)
• Adjustable strobe speed
• Built-in automated programs via DMX
• Built-in sound activated programs via master/slave or DMX
• Fits onto most standard tripods
• Safely mounts to truss with clamps (sold separately)
• Razor-sharp rotating beams
• Independent positioning of each light
• Low-profile lights are 2.2in deep
• Additional power output: max 30 units @ 120V (see manual for details)
• Coverage angle: 25°
• Light source: 228 (48 red, 72 green, 72 blue, 36 white) (57 per light)
• Power and current: 120V, 60Hz: 12W, 0.2A operating, 0.2A inrush
• AC power: Autoswitching 100V-240V 50/60Hz
• Weight: 12.7lbs (5.7kg)
• Size: 33in x 3.5in x 12.5in / 838mm x 89mm x 318mm



The 6Spot is an LED powered, color-changer system complete with its own travel bag. Six individually controllable and positionable heads each contain a high-power tri-color LED that creates 7 popular colors. The unit can be controlled via DMX or by running automatic or sound-activated programs. The fixture easily slides onto most standard tripod stands or can be mounted onto truss.

• Complete, portable LED spot lighting solution with high-intensity, tri-color LEDs
• Six, independently-positional heads allow total room or stage coverage
• Low-profile spots are 3.6in deep and can fit almost anywhere
• Set-up and teardown in minutes with the included carry bag
• High-powered, tri-colored LEDs mix to instantly create 7 popular colors
• Safely mount to truss using the built-in bolts for increased flexibility and mounting options
• Works in master/slave with the Sweeper™ LED for large, coordinated light shows
• Power link up to 20 units which saves time running cables and extension cords
• Easily mountable to the popular 4BAR™ system or almost any universal tripod
• Awesome sound-activated programs dance to the beat of the music
• Easy-access to built-in automated programs generate a synchronized show in master/slave mode
• DMX channels: 8
• Light source: 6 3W (375mA x3) tri-color LEDs 50,000hrs
• Strobe rate: 0-30Hz
• Beam angle: 11° (per light)
• Lux: 814 @ 1m (per light)
• Power and current: 120V, 60Hz: 52W, 0.4A operating
• Power and current: 230V, 50Hz: 57W, 0.2A operating
• AC power: Autoswitching 100-240VAC 50/60Hz
• Power linking: max 20 units @ 120V (see manual for details)
• Weight: 10.1lbs (4.6kg)
• Size: 35.5 x 2.2 x 6.5in (902 x 56 x 165mm)
