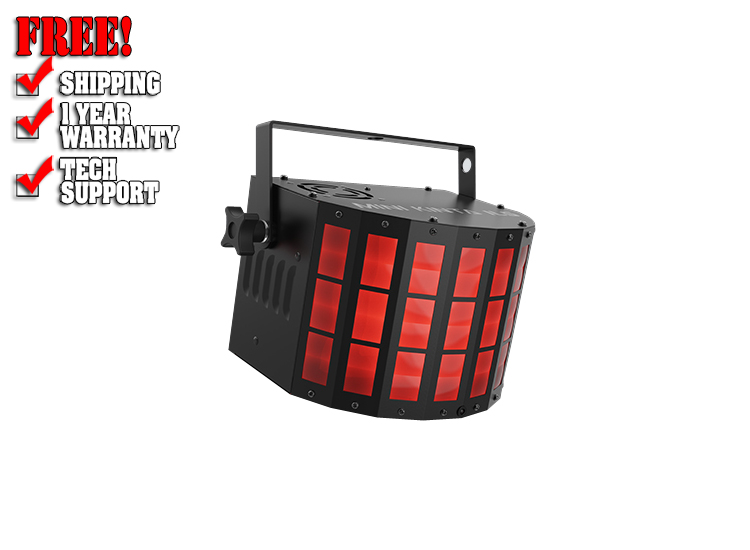

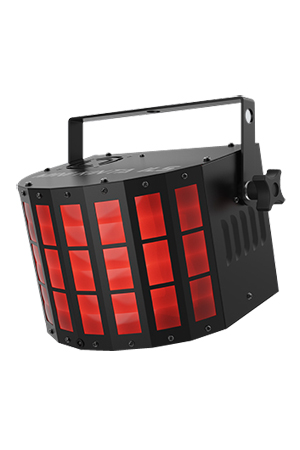

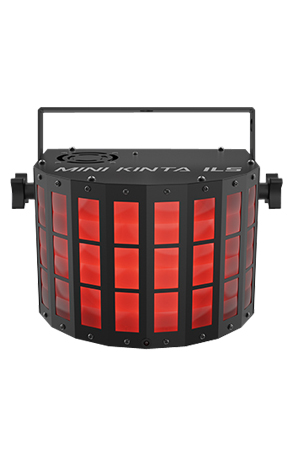

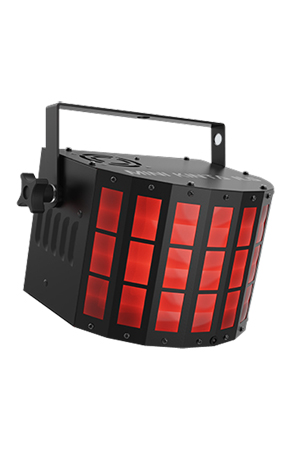

Chauvet Mini Kinta ILS

Small but mighty, Mini Kinta ILS packs a punch with countless beams of multicolor light bright, colorful beams using high-power red, green, blue, and white LEDs and fills the room with eye-catching effects as light shines through 48 lenses. Mini Kinta ILS also has ILS compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Trigger built-in automated and sound-activated programs in Master/Slave or DMX mode or take advantage of simple wireless, non-DMX control from an optional IRC6 remote. Mini Kinta ILS lets you match the mood at any event by controlling the motor speed in DMX mode.

Highlights

• Compact LED effect light projects countless beams of multicolor light
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Simple wireless, non-DMX control from an optional IRC6 remote
• Projects bright, colorful beams using high-power red, green, blue, and white LEDs
• Trigger built-in automated and sound-activated programs in Master/Slave or DMX mode
• Fills the room with eye-catching effects as light shines through 48 lenses
• Match the mood at any event by controlling the motor speed in DMX mode
• Save time running cables and extension cords by power linking multiple units

Specifications

• DMX Channels: 4 or 8
• DMX Connectors: 3-pin XLR
• Light Source: 4 LEDs (1 red, 1 green, 1 blue, 1 white) 3 W, (980 mA), 50,000 hours life expectancy
• Coverage Angle: 135°
• Power Linking: 33 units @ 120 V; 54 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 19 W, 0.3 A @ 120 V, 60 Hz
  18 W, 0.2 A @ 230 V, 50 Hz
• Weight: 3.6 lb (1.7 kg)
• Size: 7.5 x 10.1 x 7.2 in (190 x 258 x 182 mm)
• Approvals: CE, RoHS, UKCA
• Optional Controllers: IRC6

WHAT'S INCLUDED

• Mini Kinta ILS
• Power cord
• Quick Reference Guide
