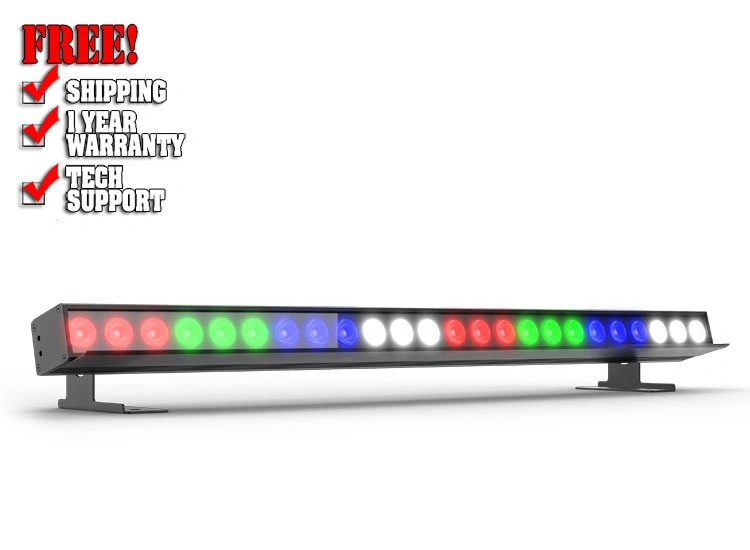

Chauvet DJ EVE B-160Q RGBW LED linear batten fixture

Put color in motion across 8 zones of control, pick the perfect warm or cool white from color temperature presets, or mix custom colors with this versatile full-color RGBW LED batten designed to consistently match the colors of the EVE range of fresnels, ellipsoidals and PARs.

Highlights

• Full-color linear batten designed for mobile and installation applications
• Up to 8 controllable zones allow for dynamic chase effects
• Pre-set color temperature ranges eliminate the need for manual color blending
• Flicker-free operation suitable for on-camera use
• D-Fi USB compatibility for wireless master/slave or DMX control
• PowerCON®-compatible power input/output connections for power linking

Specifications:

• DMX Channels:3, 4, 11, or 39
• DMX Connectors:3- and 5-pin XLR
• Light Source:24 LEDs (quad-color RGBW) 6.5W, (3.2A) 50,000 hours life expectancy
• Strobe Rate:0 to 20 Hz
• Beam Angle:15°
• Field Angle:30°
• Illuminance:8,300 lux @ 2 m
• Lumens:3,909
• Power Linking:7 units @ 120 V; 11 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:105 W, 1.6 A @ 120 V, 60 Hz
• Power and Current:102 W, 1.0 A @ 230 V, 50 Hz
• Weight:10.4 lb (4.7 kg)
• Size:39.4 x 5.9 x 7.6 in (1000 x 151 x 194 mm)
• Approvals:CE, MET, RoHS
• Beam Angle (w/ filter): 24°
• Field Angle (w/ filter): 52°
• Cable Length: 5 ft (1.524 m)

What's in the Box:

• EVE B-160Q
• Power cord
• Quick Reference Guide

  What is the Chauvet DJ EVE B-160Q used for?
A: The EVE B-160Q is designed for stage washes, wall washing, uplighting, truss warming, theater productions, and architectural lighting applications.

  Does the EVE B-160Q support wireless DMX?
A: Yes. It is compatible with D-Fi USB for wireless DMX communication.

  How many LEDs does the EVE B-160Q have?
A: The fixture features 24 quad-color RGBW LEDs rated at 6.5 watts each.

  Can the LEDs be controlled in zones?
A: Yes. The fixture offers up to 8 controllable zones for dynamic chase and pixel effects.

  Is the EVE B-160Q suitable for video recording?
A: Yes. Its flicker-free operation makes it ideal for broadcast, livestreaming, and video production environments.

<
