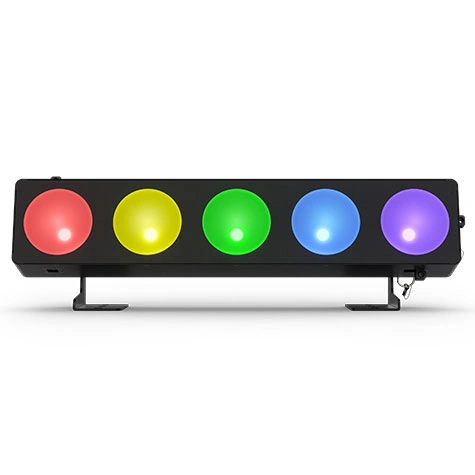

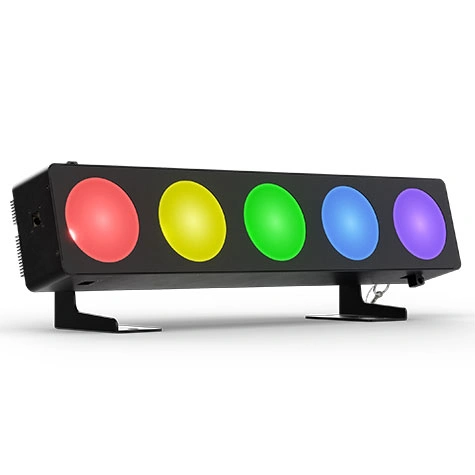

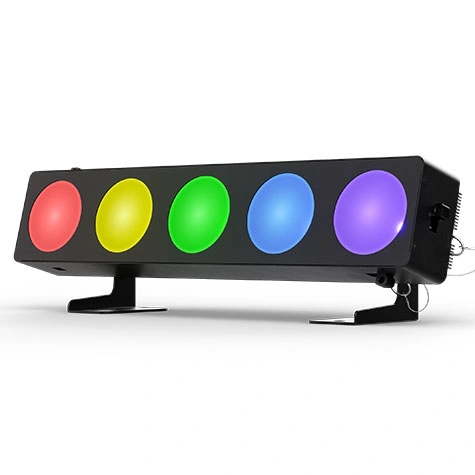

Chauvet DJ Core 5X1 ILS RGB+WW COB LED Wash Light

Core 5×1 ILS projects smoothly saturated color with COB technology and a large reflector design ideal for bringing the most natural color tones to live setups. Create custom shapes with built-in tool-free connecting hardware. Add a D-Fi™ USB (sold separately) to wirelessly sync Core 5×1 ILS with multiple ILS fixtures of different types. Floor mount for a perfect uplight or attach multiple fixtures together for high-impact pixel-mapped looks, runway chase effects, blinder bursts or color washes.

Highlights

• Multi-purpose effect light functions as a pixel-mapping effect, chase effect, blinder, or wash light.
• Attach multiple fixtures together using the built-in, toolless connecting hardware
• ILS compatibility for use in the ILS ecosystem (D-Fi™ USB sold separately)

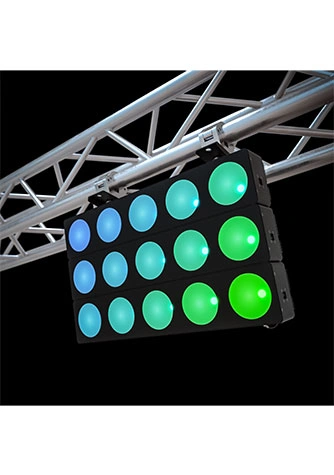

• Connect up to 6 fixtures together vertically using the toolless linking hardware
• Generates a broad spectrum of colors and achieves natural-looking color temperatures with COB technology
• Withstand the harshness of traveling from gig to gig with a robust housing
• Offers multiple control options, including stand-alone, DMX, ILS, RF, or master/slave

Specifications:

• DMX Channels:4, 8, or 22
• DMX Connectors:3- and 5-pin XLR
• Light Source:5 LEDs (quad-color RGB+WW) 35W, (1.2A) 50,000 hours life expectancy
• Strobe Rate:0 to 20 Hz
• Beam Angle:54°
• Field Angle:75°
• Illuminance:953 lux @ 2 m
• Lumens:2,875
• Power Linking:6 units @ 120 V; 10 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:120 W, 1.8 A @ 120 V, 60 Hz
• Power and Current:113 W, 1.1 A @ 230 V, 50 Hz
• Weight:11 lbs (5 kg)
• Size:23.6 x 3.1 x 4.7 in (600 x 79 x 120 mm)
• Approvals:CE, RoHS
• Cable Length: 5 ft (1.52 m)
• Bracket Mounting Hole: 13 mm
• Optional Controllers: ILS Command, RFC, RFC-XL

What's in the Box:

• CORE 5X1 ILS
• Power cord
• Quick Reference Guide

  What is the Chauvet DJ Core 5X1 ILS used for?
A: The Chauvet DJ Core 5X1 ILS is designed for wash lighting, blinder effects, pixel mapping, uplighting, and chase effects for DJs, live events, clubs, stages, and mobile productions.

  Does the Core 5X1 ILS support wireless control?
A: Yes. It supports the Chauvet ILS ecosystem and can operate wirelessly when used with a D-Fi USB transmitter.

  How many LEDs does the fixture have?
A: It features 5 high-output 35W RGB+Warm White COB LEDs.

  Can multiple Core 5X1 ILS fixtures be linked together?
A: Yes. The fixtures include a tool-free linking system that allows multiple units to connect vertically for expanded lighting effects.

  Does it support DMX control?
A: Yes. It supports multiple DMX personalities including 4, 8, and 22-channel modes through both 3-pin and 5-pin XLR connections.

<
