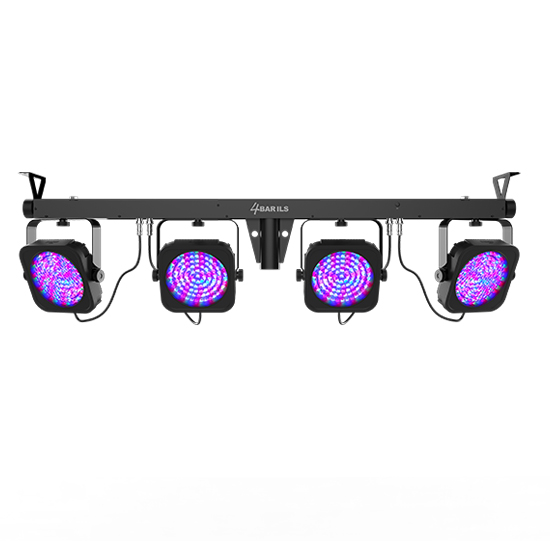

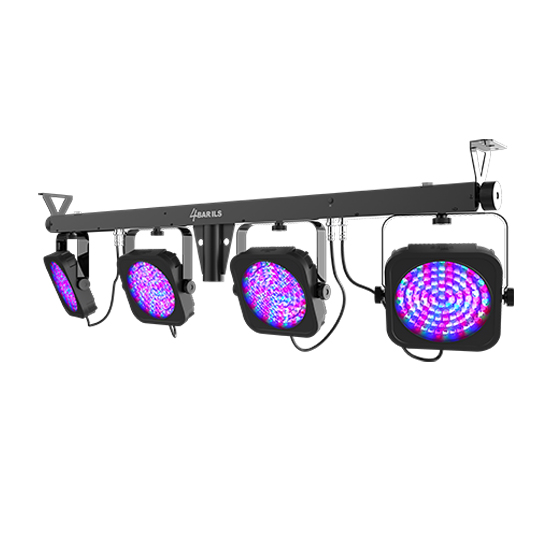

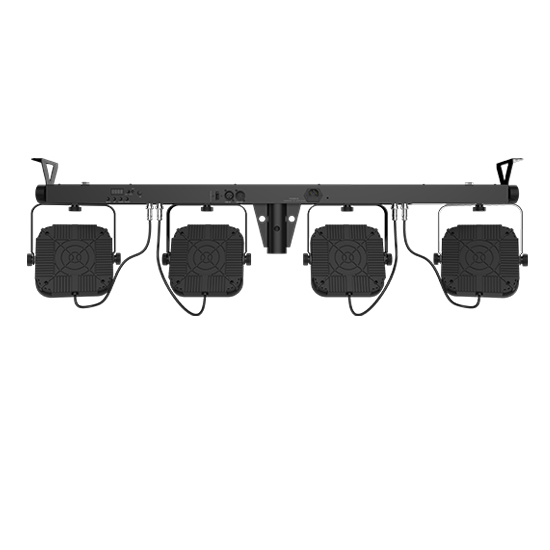

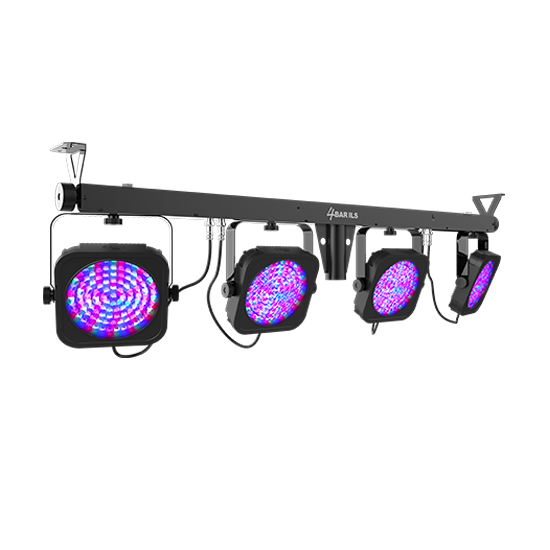

Chauvet DJ 4BAR ILS

Highlights

• Complete wash lighting solution designed for mobile entertainers
• ILS compatibility for use in the ILS ecosystem
• Achieve total room or stage coverage with 4 individually adjustable heads
• D-Fi USB compatibility for wireless master/slave or DMX control

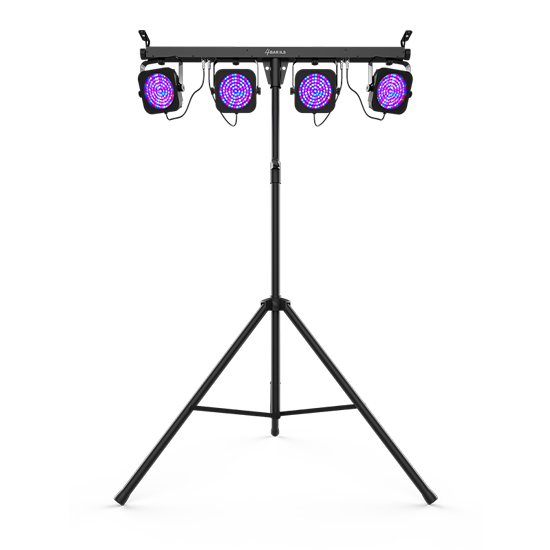

• Easily set-up and tear down in minutes using the included tripod, wireless footswitch and carry bags
• Increase mounting options by safely mounting to truss using the built-in bolts
• Create large, coordinated light shows with other 4BAR fixtures in master/slave mode
• Sound-activated programs dance to the beat of the music
• Easily control static colors and automated programs with the optional IRC-6 remote
• Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs

Specifications

• DMX Channels: 3, 5 or 15
• DMX Connectors: 3-pin XLR
• Light Source: 432 LEDs (144 red, 144 green, 144 blue) 0.25 W, (20 mA), 100,000 hours life expectancy.
• Strobe Rate: 0 to 19.9 Hz
• Beam Angle: 17°
• Field Angle: 24°
• Illuminance: 786 lux @ 2 m (per pod)
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  • 29 W, 0.4 A @ 120 V, 60 Hz
  • 27 W, 0.2 A @ 230 V, 50 Hz
• Weight: 11 lb (5.0 kg)
• Size: 43.3 x 2 x 10.5 in (1,100 x 50 x 267 mm)
• Approvals: CE, RoHS, UKCA
• Stand Height: 7 ft 4 in (2.2 m)
• Fits Tripod Sizes: 1.37 in (35 mm)
• Weight (Controller): 1.2 lb (0.6 kg)
• Size (Controller): 12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)
• Optional Controllers: IRC-6, D-Fi USB
• Chauvet DJ 4BAR ILS Quick Reference Guide
• 4BAR ILS - User Manual

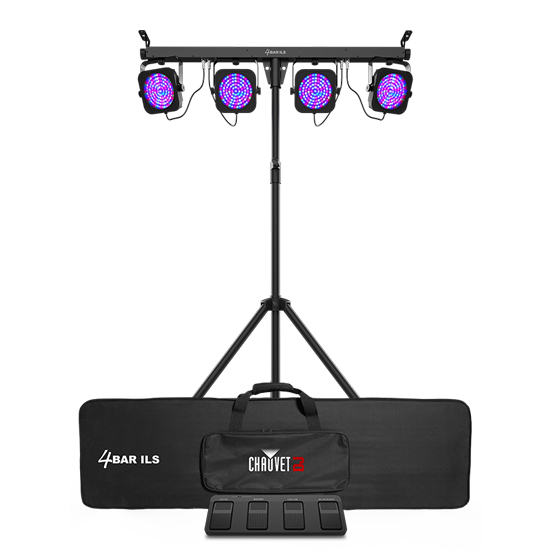

What's Included

• 4BAR ILS
• Power cord
• Carrying bag
• Tripod
• Tripod Carry bag
• Wireless Footswitch
• Quick Reference Guide
