ADJ Penta Pix

Description

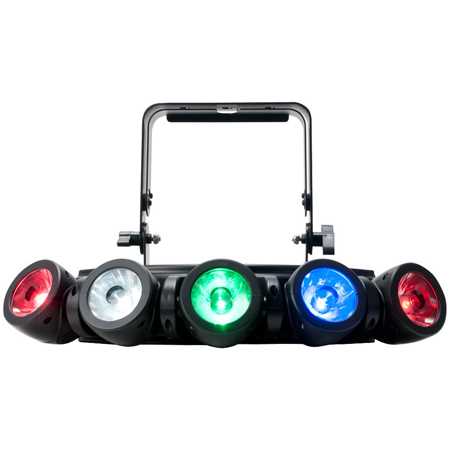

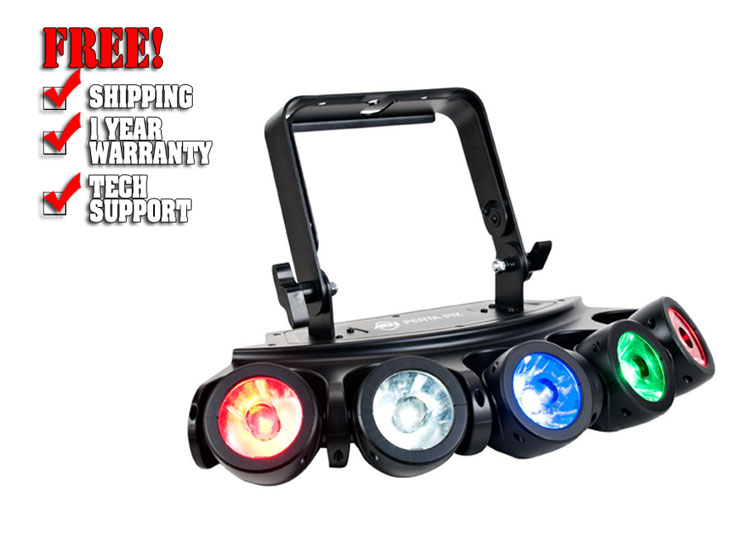

The ADJ Penta Pix is a 5-head beam effect with pixel zone control. Create quick chasing sharp beam effects from its five 15W 4-IN-1 RGBW LEDs with new ACL lens (Advanced Collimator Optic Lens) for crisp, sharp beams. Each head may be manually positioned on a X axis.

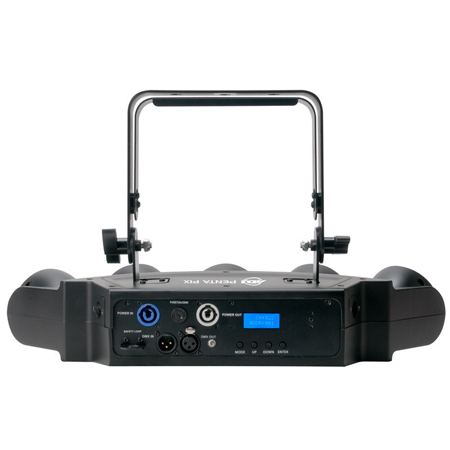

The Penta Pix features 63 color macros, 5 DMX channel modes, 5 selectable dimming curves and 15 exciting built-in lightshows. It has a 4-button DMX menu, 3-pin DMX In/Out, powerCON In/Out and a scissor yoke.

Specifications:

• 5x 15-Watt 4-in-1 RGBW Quad LEDs
• Refresh Rate: 3.6KHz
• 5 Operational modes: Sound Active, Auto Run, RGBW Dimmer Mode, Color Macro Mode, & DMX Control
• 63 Preset Color Macros
• 5 DMX Channel modes: 4/8/11/20/27 DMX channels
• 3-Pin DMX In/Out connections
• Strobe speed (Controlled via DMX)
• 0-100% electronic dimming (Controlled via DMX)
• Power Consumption: 77W maximum
• AC Connection: PowerCON IN/OUT; Daisy chain powerl
• Multi-voltage operation: AC 100-240V 50/60Hz
• Dimensions (LxWxH): 21" x 11" x 10.25" / 530 x 280 x 260mm
• Weight: 12 lbs. / 5.4 kg.

Features:

• New ACL (Advanced Collimator optic Lens) for razor sharp 6-degree beams
• 5-Zone Pixel Control
• 15 exciting built-in Lightshows with sound active control
• Runs extremely cool! - NO Duty Cycles! — Run all night!
• 5 selectable Dimmer Curves
• Includes scissor yoke + safety hook on rear panel
• 4-Button DMX LED Display
