ADJ Ultra HEX Bar 6

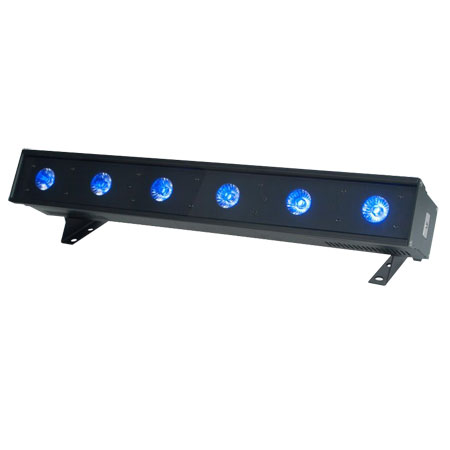

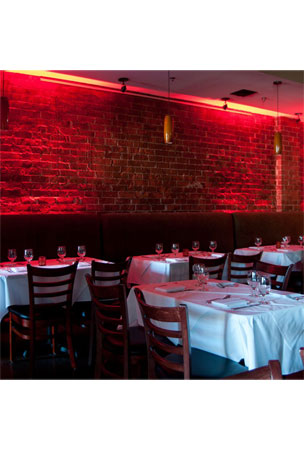

The ADJ Ultra HEX Bar 6 is a versatile LED Linear fixture with 6x 10-Watt , 6-IN-1 HEX LEDs. With a 40-degree beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Bar great for lighting stages and dance floors, but with its patent pending, intelligently designed, power and DMX connectors, it's great for uplighting a venue.

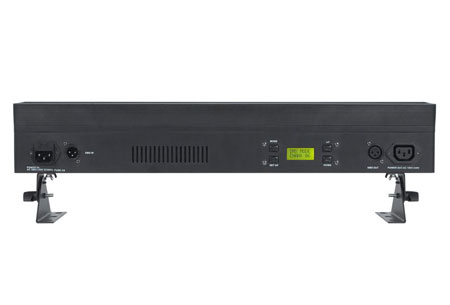

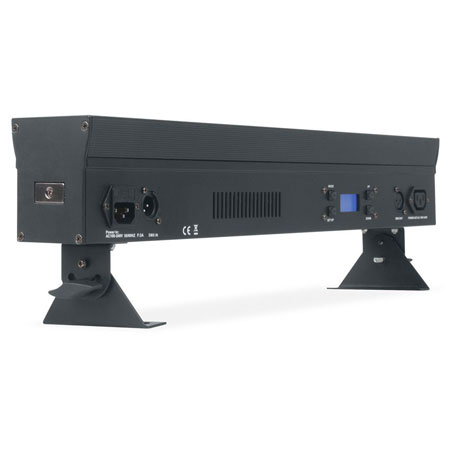

Ultra HEX Bar 6 professional features include: 5 DMX modes (6, 7, 8, 12 & 18 channel), 6 operational modes, 5 dimming curves, flicker free operation a 4-Button DMX menu with digital display, plus ADJ's patent pending magnetic "Quick Align" end locking allows for a seamless output of light with no breaks of color. Daisy chain up to 12 units together via the fixtures built-in IEC In/Out power connectors.

The Ultra HEX Bar 6 is compatible with the ADJ RFC, easy-to-use, wireless remote. Alternatively the fixture may be operated via a DMX controller or the units built-in programs.

Specifications

• Ultra bright, 23-inch (.5 meter) indoor Linear Bar with 6 x 10W Ultra bright HEX (RGBWA + UV: 6-IN-1) LEDs
• Smooth RGBAW + UV color mixing

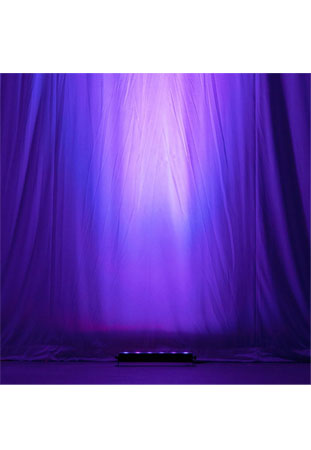

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• 5 DMX Channel Modes: 6, 7, 8 ,12 or 18 channels
• 6 operational modes: Auto Run, Program Mode, Sound Active, RGBWA + UV Dimmer, Static Color and DMX-512 Mode
• Patent Pending Quick Align (Magnetic)
• Beam Angle: 40 degrees
• Flicker Free operation (No flickering on camera)
• Refresh Rate:2.88KHz
• 64 built-in Color Macros
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• LED pulse and strobe effect
• 2x8 Character LCD Display
• Electronic Dimming: 0-100%
• Includes mounting brackets to mount on a wall or set on the ground
• Compatible with the ADJ RFC remote with RF control up to 30 ft./ 10M (sold separately)
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• Light output: 1172 LUX @ 2M; 310 LUX @ 4M (40-degree beam)
• Power Draw: 55W
• Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 12 Ultra Hex Bar 6 fixtures)
• With Wired Digital Communication Network
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power cable length: 1.8 meter (IEC)
• Dimensions (LxWxH): 23" x 4.5" x 6.5"/ 585 x 110 x 165mm
• Weight: 6 lbs./ 2.82 kg
