Chauvet DJ 4BAR USB

Overview

4BAR USB is a complete washlighting solution for mobile entertainers. D–Fi USB compatible for wireless master/slave or DMX control, it also includes a wireless footswitch that can control multiple units. Create synchronized light shows using built-in automated programs with the optional IRC–6 remote.

Highlights

• Complete wash lighting solution designed for mobile entertainers
• Out of the box wireless control with included footswitch that controls multiple units
• Achieve total room or stage coverage with 4 individually adjustable heads
• D-Fi USB compatibility for wireless master/slave or DMX control
• Easily set-up and tear down in minutes using the included tripod, wireless footswitch and carry bags
• Increase mounting options by safely mounting to truss using the built-in bolts
• Create large, coordinated light shows with other 4BAR fixtures in master/slave mode
• Sound-activated programs dance to the beat of the music
• Easily control static colors and automated programs with the optional IRC-6 remote
• Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs

Specifications

• DMX Channels :  3 or 15
• DMX Connectors :  3-pin XLR
• Light Source :  432 LEDs (144 red, 144 green, 144 blue) 0.25 W, (20 mA), 100,000 hours life expectancy
• Strobe Rate :  0 to 20 Hz
• PWM Frequency :  1.2 kHz
• Beam Angle :  21°
• Field Angle :  33°
• Illuminance :  725 lux @ 2 m (per pod)
• Input Voltage :  100 to 240 VAC, 50/60 Hz (auto–ranging)
• Power and Current :  36 W, 0.6 A @ 120 V, 60 Hz
  36 W, 0.3 A @ 230 V, 50 Hz
• Weight :  10.8 lb (4.9 kg)
  (Controller): 0.8 lb (1.8 kg)
• Size:  47.4 x 2 x 11 in (1,205 x 50 x 285 mm)
  (Controller): 12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)
• Approvals :  CE
• Optional Controllers :  IRC–6, D–Fi USB
• Stand Height :  7 ft 4 in (2.2 m)

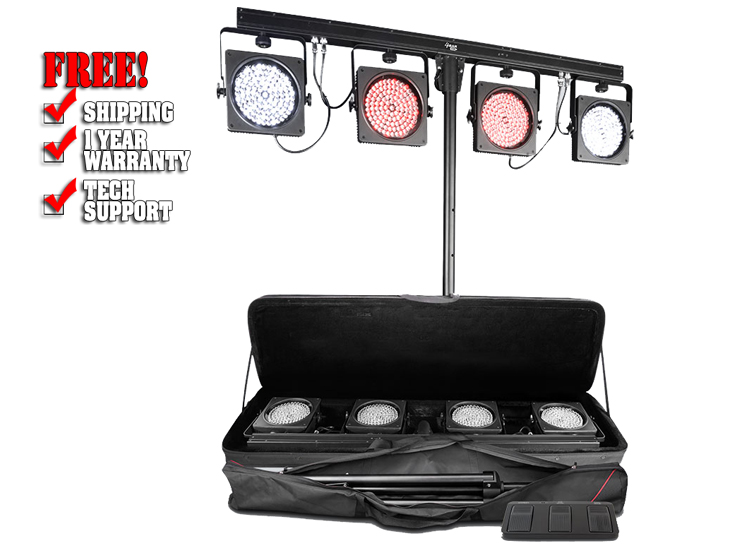

What's Included

• Power cord
• 4BAR and Stand carry bag
• Tripod
• Wireless Footswitch
• Quick Reference Guide / Warranty card
