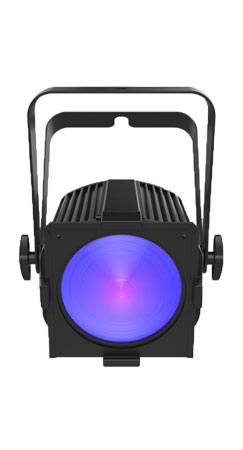

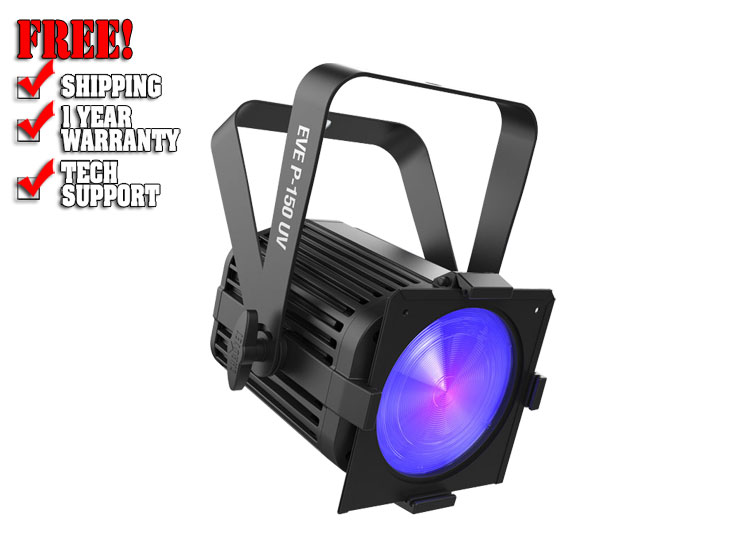

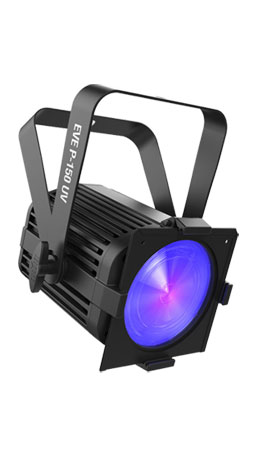

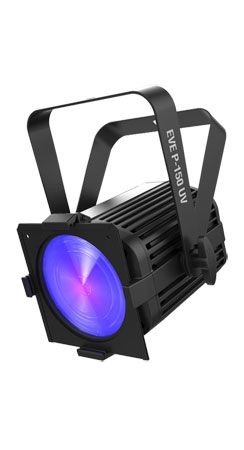

Chauvet DJ EVE P-150 UV

EVE P-150 UV is a brawny blacklight cannon fitted with 40 UV LEDs emitting 150 watts of blacklight power. The unit is designed without a fan and its silent operation combined with its flicker-free output make it ideal for video use. EVE P-150 UV is D-Fi USB compatible giving users the option to control the light wirelessly in master/slave mode or wireless DMX control. Magnetic lenses to adjust the beam are included along with a gel frame holder and accessory slot for optional barn doors. PowerCON compatible power input/output connections are on board for secure power linking. EVE P-150 is also fitted with both 3-pin and 5-pin DMX connectors.

Highlights

• Robust blacklight cannon designed for mobile lighting professionals
• Included interchangeable magnetic lenses alter the beam to desired angles
• Built-in gel frame holder and 6¼-inch accessory slot to hold barn doors

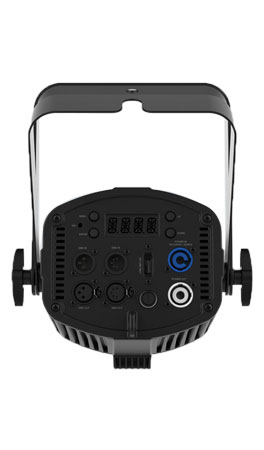

• powerCON®-compatible power input/output connections for power linking
• Fanless design ensures 100% silent operation
• Flexible control options with onboard 3- and 5-pin DMX connectors
• Flicker-free on video due to the high-frequency LED dimming
• D-Fi USB compatibility for wireless master/slave or DMX control
• Cast aluminum housing provides extra strength without the weight
• Fits best in the CHS-40 VIP gear bag

Specifications

• DMX Channels: 1 or 5
• DMX Connectors: 3- and 5-pin XLR
• Light Source: 40 LEDs (UV) 150 W total, (2 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 34 Hz
• PWM Frequency: 2 kHz
• Coverage Angle: (lens 1): 35°
  (no lens): 41°
  (lens 2): 55°
• Power Linking: 8 units @ 120 V; 16 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 122 W, 1.2 A @ 120 V, 60 Hz
  111 W, 0.5 A @ 230 V, 50 Hz
• Weight: 7.6 lbs (3.5 kg)
• Size: 8.6 x 9.65 x 12 in (220 x 245 x 305 mm)
• Approvals: CE, MET
• Wavelength: 395 nm
• Optional Controllers: D-Fi USB
• Accessory Holder/Gel Frame Size: 6.25 in (159 mm)

WHAT'S INCLUDED

• Eve P-150 UV
• Lens 1 and Lens 2
• Gel frame
• Power cord
• User Manual
• Quick Reference Guide
