Chauvet Obey 8

Description

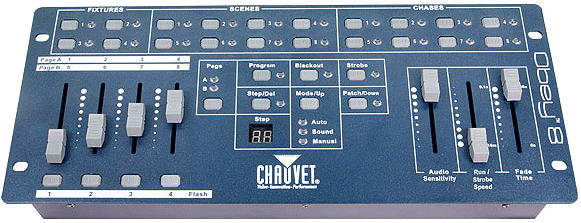

The Obey™ 8 is a compact 32-channel DMX controller that is ideal for LED fixtures. It can control up to four, eight-channel fixtures and store eight sets of chases containing up to 99 steps each. Additional features include the ability to stack/layer scenes, a speed/fade slider that allows fading between scenes at user discretion and adjustable blackout. The Obey™ 8 also features flash buttons that provide 100 percent output when buttons are held.

Features:

• PDF Manual
• Universal DMX-512 compact controller ideal for LED fixtures
• Controls up to 4 intelligent lights of up to 8 channels each
• 32 DMX channels of control
• 8 sets of chases containing up to 99 steps each (200 steps max)
• Playback options include automatic, sound-activated or manual
• 4 fader flash buttons for momentary on
• Adjustable blackout allows fixtures to fade out
• Adjustable audio sensitivity
• Includes 2 extension plates for rack mounting
• Sequential linking of chases
• Grab any fixture on the fly
• DMX polarity selector
• Power: 12VDC 500mA (external power supply: 100-240VAC 50/60Hz)
• Weight: 3.9lbs (1.8kg)
• Size: 14.7in x 6.1in x 2.2in / 373mm x 156mm x 56mm
