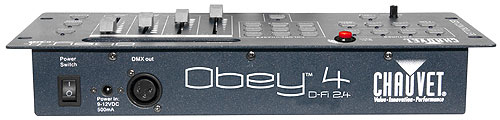

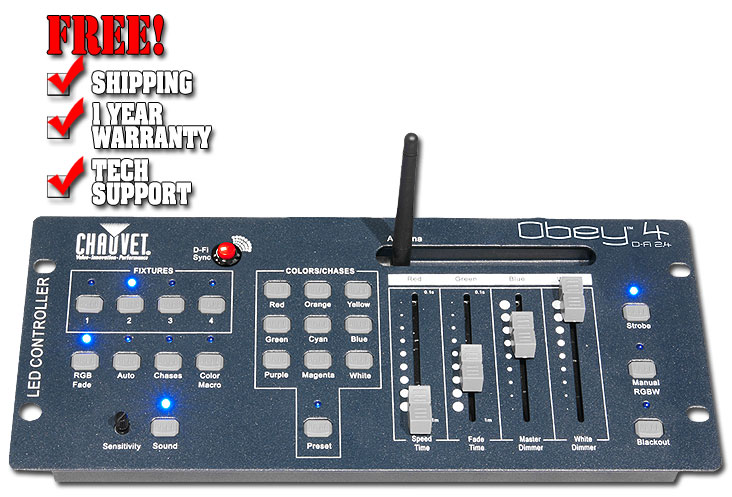

Chauvet Obey 4 D-Fi 2.4

Description

Obey™ 4 D-Fi 2.4GHz combines two popular control products into one, easy-to-use controller. The perfect solution to easily control the Freedom™ series of 100% true wireless fixtures, this controller allows you to run an entire system around a ballroom without ever running a single DMX cable. For color mixing or selecting pre-mixed colors, easily connect any 4-channel LED fixture and easily set your desired color with the touch of a button.

Features:

• Compact, easy-to-use wireless DMX controller for LED fixtures (up to 4-channels)
• Built-in D-Fi™ 2.4Ghz transmitter sends wireless DMX signals across the room
• Controls an unlimited number of Freedom™-series fixtures
• Compatible with all CHAUVET® D-Fi™ systems that operate on 2.4Ghz
• Controls up to 4 separate fixture addresses for maximum control during playback
• Each fixture can be in different playback modes simultaneously
• Playback options include automated, sound-activated or manual RGBW/RGBA
• Playback modes:
  • Preset: 9 built-in colors
  • Chases: manually trigger automated programs
  • Color macro: manually scroll through the color spectrum
  • RGB fade: automatically scroll through the color spectrum
  • RGB fade delay: automatically scroll through the color spectrum with a small delay to each fixture
  • Auto: randomly selects different colors for each fixture
• Variable fade times for all playback modes
• Variable strobing on the fly
• Adjustable blackout allows fixtures to fade in and out
• Adjustable audio sensitivity
• DMX connectors: 3-pin
• TX Refresh rate: 15 Hz
• DMX refresh rate: 40 Hz
• Max unobstructed distance: 656 ft (200 m)
• Operating frequency: 2.433 - 2.481 GHz

• RF output: 18.5 dBm
• Antenna connection: RP-SMA
• Input voltage: 12 VDC 500 mA (external power supply: 100-240 VAC 50/60 Hz)
• Weight: 3 lbs (1.4 kg)
• Size: 12.8 x 5.5 x 2.1 in (325 x 140 x 52 mm)
• Approvals: CE, FCC
