LightJockey 2

Overview

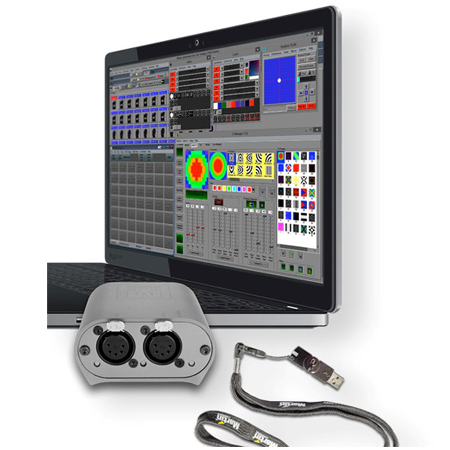

LightJockey 2™ is a flexible, easy-to-use Windows-based controller package that includes a Martin™ M-DMX USB Interface Box.

One of the industry's most popular PC-based controllers for well over a decade, LightJockey 2™ offers lighting designers greater flexibility, spontaneity and ease of use in a user-focused control package. LightJockey™ software can be downloaded here

Control of up to 100 fixtures, 2048 DMX channels

Large fixture library and user-configurable editor

Martin™ M-DMX interface with 2 x 512 channels DMX In/Out

Features

• Windows 7 and higher lighting controller software
• Free Martin ShowDesigner 6 Lite™ 3D Visualizer one-year license
• Supports MP3, audio CD, SMPTE and MIDI timecode
• Control of up to 100 fixtures, 2048 DMX channels
• Graphical representation of all fixture functions
• Add-on LightJockey Manager, free downloadable software for scheduling events
• LED-Trix plug-in included for programming color-mixing fixtures

Specifications

Physical

• Martin™ M-DMX Interface Box
• Length: 92 mm (3.6 in.)
• Width: 82 mm (3.2 in.)
• Height: 41 mm (1.6 in.)
• Weight: 245 g (0.54 lbs.)
• Ambient temperature: 0° – 50° C (32° – 122° F)
• Protection rating: IP20

Control and Programming

• Trig sources: Manual, auto, audio input with FFT analyzer, DMX in, MIDI, Light Jockey Manager Cue list time code synchronization (CLTCS) options
• Internal timer, including 24-hour clock
• Audio CD time code from CD-ROM drive
• Digital Audio (MP3, WAV, etc.) time code using built-in media player
• MIDI Time code, SMPTE with suitable SMPTE/MTC interface

Programming

• Number of fixtures: Up to 100, or 680 RGB fixtures
• Number of DMX Universes: 4
• Fixture library: All Martin (DMX) fixtures, user-definable profiles for non-Martin fixtures, generic DMX profiles
• Control: Graphical control of all fixture parameters
• Visualization: Real-time realistic 3D visualizer MSD 6 Lite™ for off-site programming (One-Year version)
• Macros: Pan and tilt, relative or absolute movement, shape generator with different shapes and delay styles

Playback

• Cue contains 12 sequences with global or individual fade time adjustment
• Master intensity control + 8 configurable intensity groups
• Manual override with direct access to all functions
• Independent background cue with 5 parallel sequences
• Blackout and fade out function
• Go button for manual cue lists
• Assignable keyboard hotkeys for faster access
• Smoke control independent from programming
• Follow spot function
• Cue list for synchronization with timer, digital audio or Audio CD-ROM timecode
• Audio analyzer for trigging sequences by audio
• Function and DMX channel override via DMX IN (M-DMX output can be converted to input in software)

System Requirements

• 1 GB RAM
• Intel Core i3 or better
• Monitor resolution of 1024x768
• USB 2.0 port for DMX interface hardware
• 500 MB drive space available
• Windows 7, 8, 10

Included Items

• Included in M-PC Pro™, LightJockey 2™ and Martin™ M-DMX package, P/N 90737060
• Martin One-Key™ USB dongle with 64-universe M-PC™ and 4-universe LightJockey 2™ licenses
• Martin™ M-DMX USB-DMX Interface Box
• Martin™ USB cable
• Martin ShowDesigner 6 Lite™ 3D Visualizer one-year license
• Software download instructions

Accessories

• Martin™ M-PC 2U / M-DMX: P/N 90737070

Ordering Information

• Martin M-PC Pro-64 / LJ-4 Controller kit: P/N 90737060
• Martin M-PC Pro-64 / LJ-4 License: P/N 39808015
• Martin One-Key with M-PC Pro-64 /LJ-4 License: P/N 70758460
• For an additional Martin M-DMX interface Box, order M-PC 2U™ and M-DMX package: P/N 90737070
