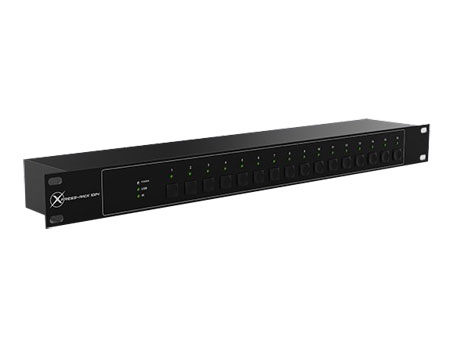

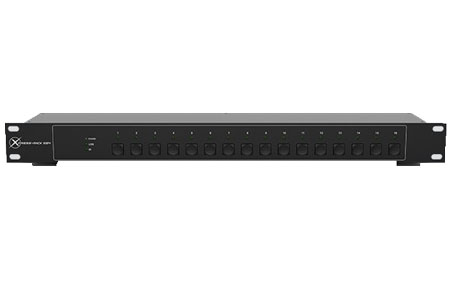

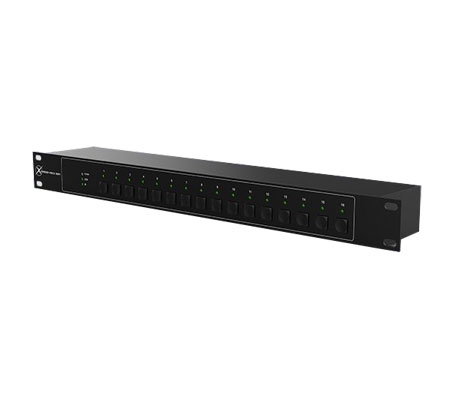

Chauvet Xpress-Rack 1024

Xpress-Rack 1024 is a rackmount DMX interface for ShowXpress™ software. The unit controls 2 DMX universes and unlocks an additional ArtNet universe (3 universes total). Easily store and play back 16 shows without a computer using onboard buttons or included remote. Trigger up to 8 scenes remotely using the Phoenix contacts. Xpress-Rack 1024 features a built-in clock and calendar which triggers scenes automatically. Xpress-Rack 1024 is hot-swappable and automatically re-connects within seconds. Compatible with Windows® and Mac OS X systems. Connect multiple interfaces to control additional universes. Both outputs are electrically and optically isolated.

Highlights

• Rackmount DMX interface for ShowXpress™ software
• Controls 2 DMX universes and unlocks 1 additional ArtNet universe (3 universes total)
• Easily store and play back 16 shows without a computer using on onboard buttons or included remote
• Trigger up to 8 scenes remotely using the Phoenix contacts
• Built-in clock and calendar triggers scenes automatically
• Hot-swappable and automatically re-connects within seconds
• Compatible with Windows® and Mac OS X systems
• Connect multiple interfaces to control additional universes
• Both outputs are electrically and optically isolated

Specifications

• DMX Channels: 1024 + 512 via ArtNet

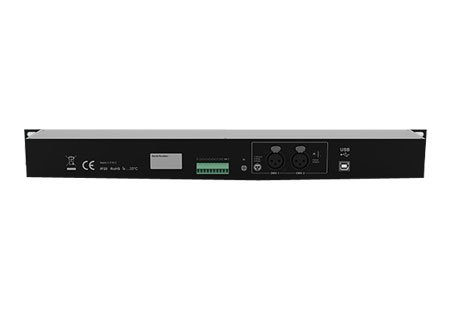

• DMX Connectors: 3-pin XLR
• Rackmount: 1U
• Input Voltage: 5 V USB
• Weight: 2.8 lbs (1.3 kg)
• Dimensions: 19 x 3 x 1.75 in (483 x 76 x 44 mm)
• Approvals: CE
• DMX Refresh Rate: 40 Hz

WHAT'S INCLUDED

• Xpress-Rack 1024
• USB cable
• IR extension cable
• IR remote
