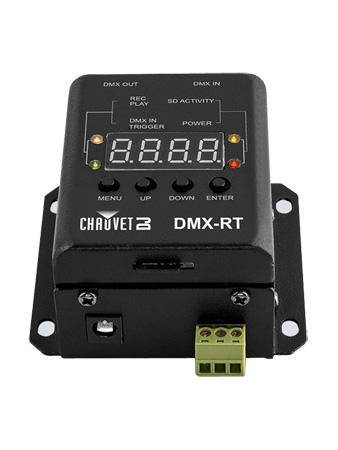

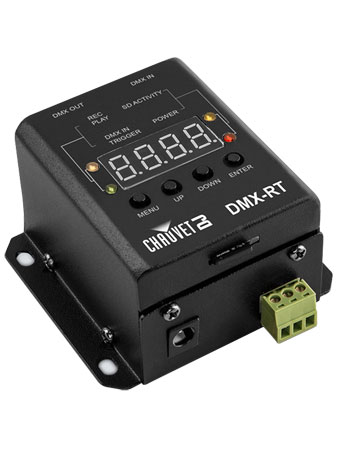

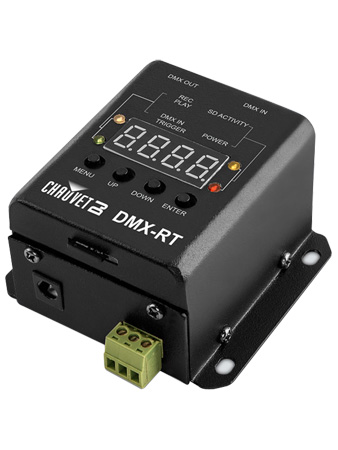

Chauvet DMX-RT

Description

DMX-RT is a rugged and compact DMX recording device with triggerable playback from DMX or the phoenix connectors. Copy, backup and transfer show files with a micro SD card (not included). The unit comes with a mounting bracket for convenient mounting options. The digital display is easy to navigate and lets you easily trigger scenes.

Features:

• DMX recording device with triggerable playback from DMX or the phoenix connectors
• Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors
• Easily navigate and trigger scene using the digital display
• Copy, backup and transfer show files with a micro SD card (not included)
• Integrated mounting bracket to quickly install into any location.
• Supplies DC voltage through terminal block to power specific triggers

Specifications

• DMX Connectors: 3-pin XLR
• Input Voltage: 12 VDC, 1 A (external power supply: 100 to 240 VAC, 50/60 Hz)
• Power and Current: 1 W, 0.03 A @ 120 V, 60 Hz
  1 W, 0.03 A @ 230 V, 50 Hz
• Weight: 0.4 lb (0.2 kg)
• Size: 3 x 2.9 x 1.7 in (77 x 73 x 43 mm)
• Approvals: CE
• Programmable Scenes: 999
• Trigger Type: N/O or N/C
• Terminal Block output: 12 VDC, 100 mA
• Micro SD: 32 GB
  Speed: Class 10 (or higher)
  Format: FAT32

WHAT'S INCLUDED

• Power adapter
• Warranty card
• Quick Reference Guide
