ADJ Stage Pak 1

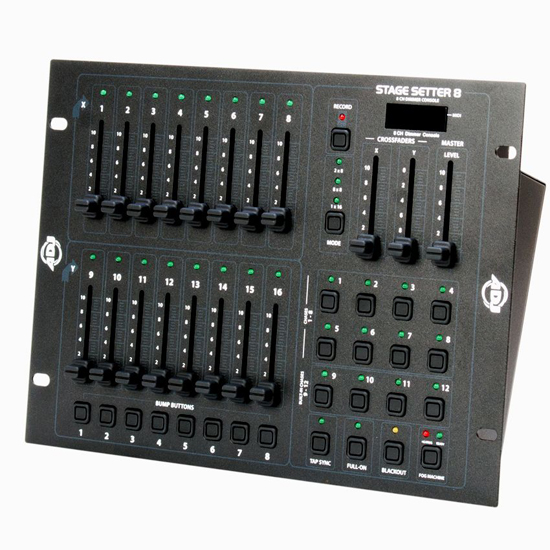

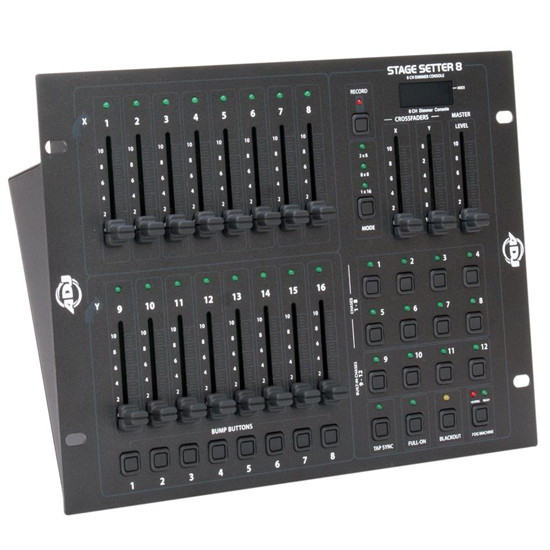

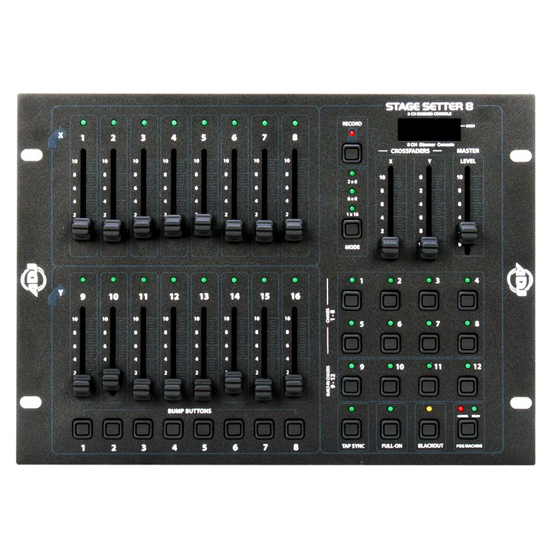

Stage Setter 8 Description

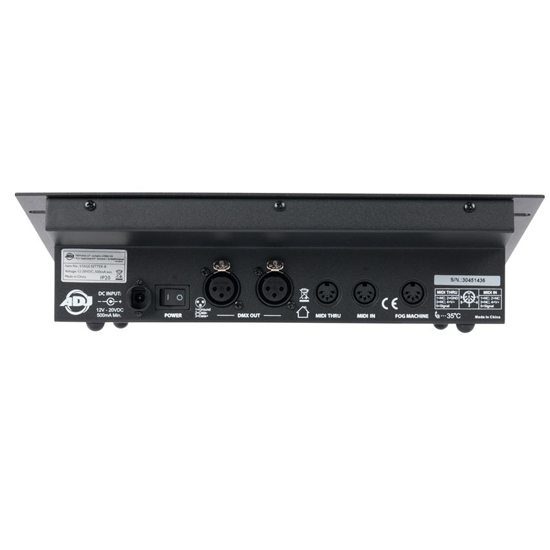

For the effective control of par cans via dimmer packs the Stage Setter 8 from ADJ offers versatility of operation through 3 different operating modes, four build-in programs, and eight user programmable programs. It operates using standard DMX-512 protocol, is MIDI compatible, and includes a fog machine output control.

Complete your par can setup with by tying it all together with the Stage Setter 8 DMX Controller by Elation Control Systems and offered by ADJ. This quality constructed DMX controller offers you the ability to fully control the dimming and on/off of your par can setup via dimmer packs. Operating in 3 separate modes and offering a range of customization and built-in programs, the Stage Setter 8 is an essential component of any par can lighting production. Functioning on standard DMX-512 protocol as well as MIDI compatible and including fog machine output control, the Scene Setter 8 can be tied into your entire production system with ease. This portable device is perfect for any size stage production, permanent or mobile. Manage your lighting like a true professional, get the Scene Setter 8 from ADJ today.

Specifications

• Three different operating modes; 2 x 8 (two banks of 8 channels), 8 x 8 (eight channels), 1 x 16 (one bank - 16 channels)
• 8 or 16 channel DMX operation
• Four built-in programs
• Eight user programmable programs
• Fog machine output control (compatible with ADJ Vaporizer, Stallion, MB-700, and others)
• XLR polarity switch
• Standard DMX-512 protocol
• MIDI compatible

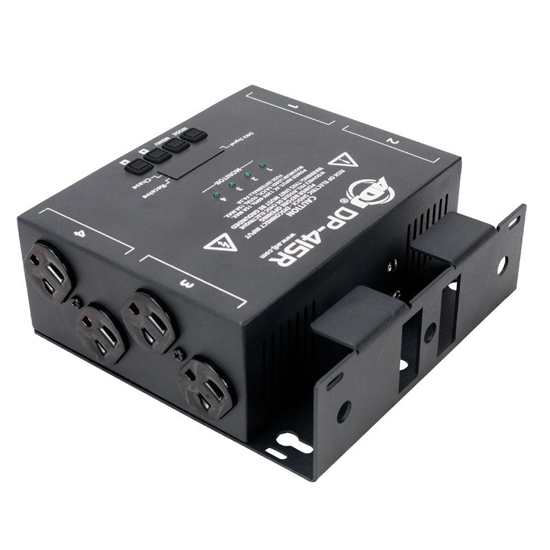

DP 415R

ADJ's DP-415R is a versatile 4-channel dimmer/switch pack. Control up to 8 fixtures. Now with a 4-button digital display menu and is RDM (Remote Device Management) compliant. The built-in hanging bracket is reversible to hang on truss or can be used with a clamp.

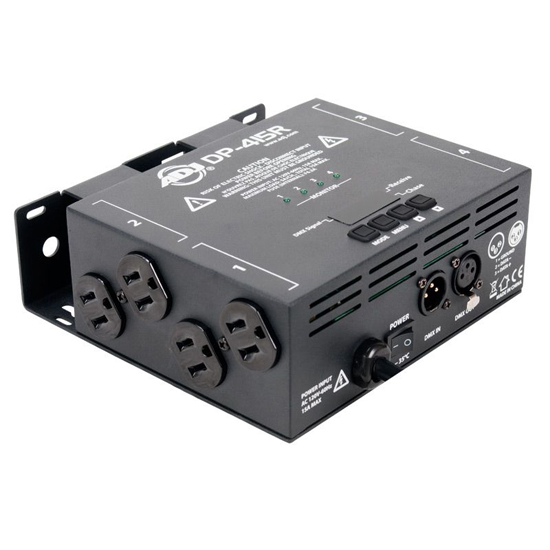

The ADJ DP-415R is a compact, portable 4-channel DMX dimmer/switch pack that has eight 3-prong 15 Amp Edison socket (2 for each channel) allowing you to be able to control up to 8 fixtures. The pack has a 4-button digital display menu and is RDM (Remote Device Management) compliant.

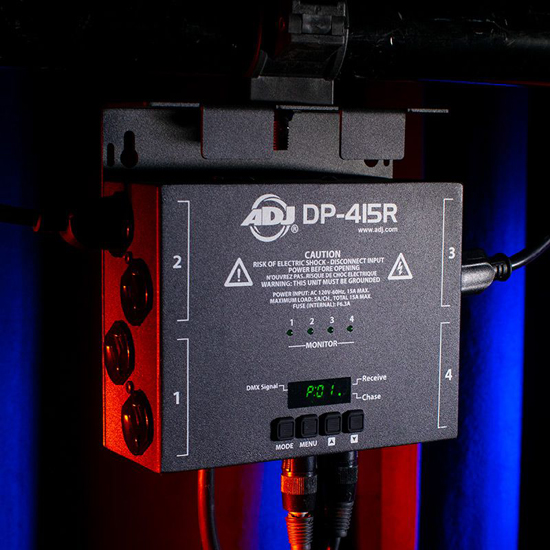

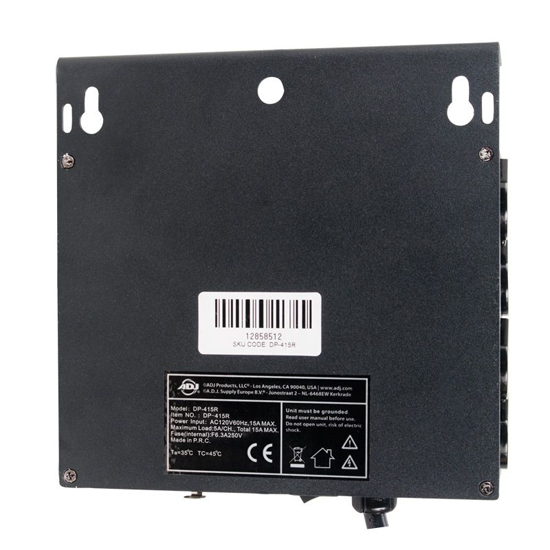

The hanging bracket is reversible to give you flexibility when installing this product to either a hanging bracket or on a truss and it can also be used with a clamp. It is also wall mountable. Also to make this product easier to use we incorporated LED "ON" indicators and a DMX signal indicator LED is also incorporated so that when DMX signal is present, the LED illuminates.

Specifications:

• Compact 4-Channel DMX Dimmer/Switch Pack
• 2x 3-prong Edison plugs per channel (8 total plugs)
• On/Off power switch
• 3-pin DMX In/Out

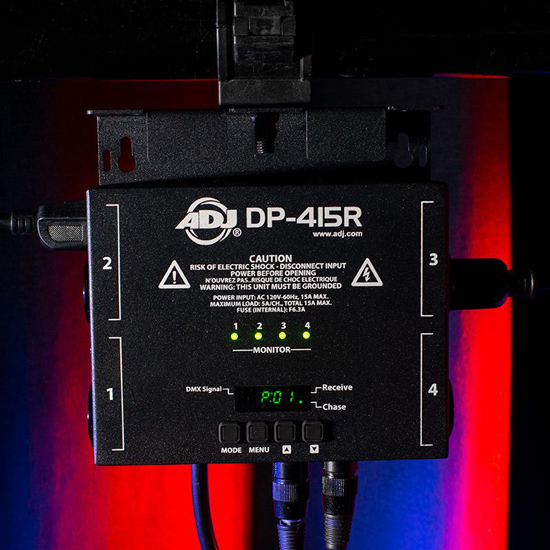

• Digital Display with 4 Menu Control Buttons
• Supports RDM (Remote Device Management)
• Assign as a dimmer pack or switch pack

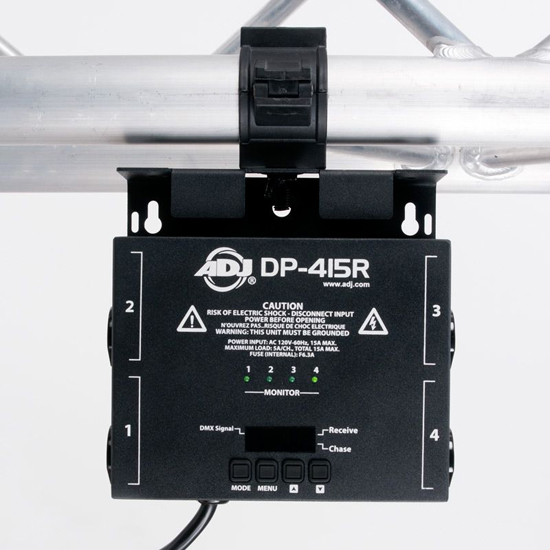

• Changeable hanging bracket to hang on truss
• Wall mountable
• LED "On" indications
• Max Power: 15A Total, 5A per channel  (120V)
• Dimensions (LxWxH): 10.25" x 8.25" x 3" / 260x209x76mm
• Weight: 6 lbs./2.72 kgs.

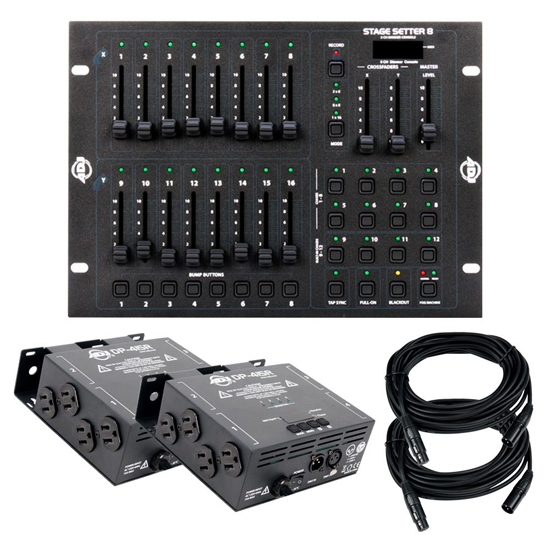

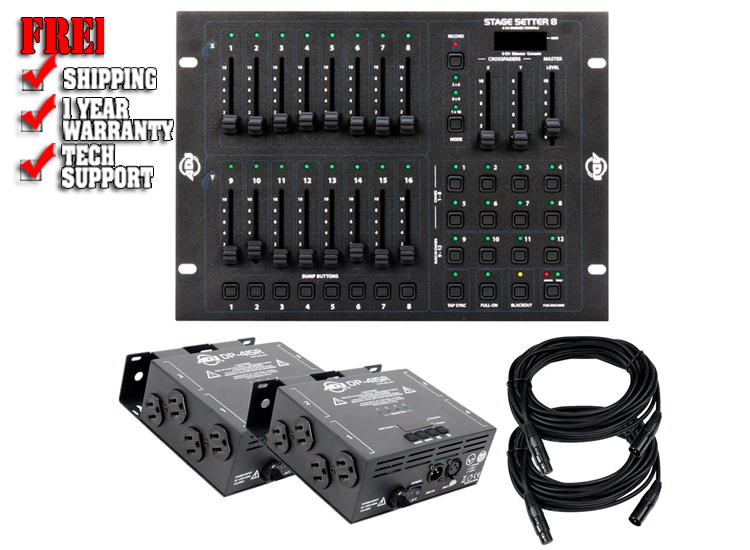

This Package Includes

• 1x Stage Setter 8
• 2x Dp-415R Dimmer Packs
• 2x DMX cables
