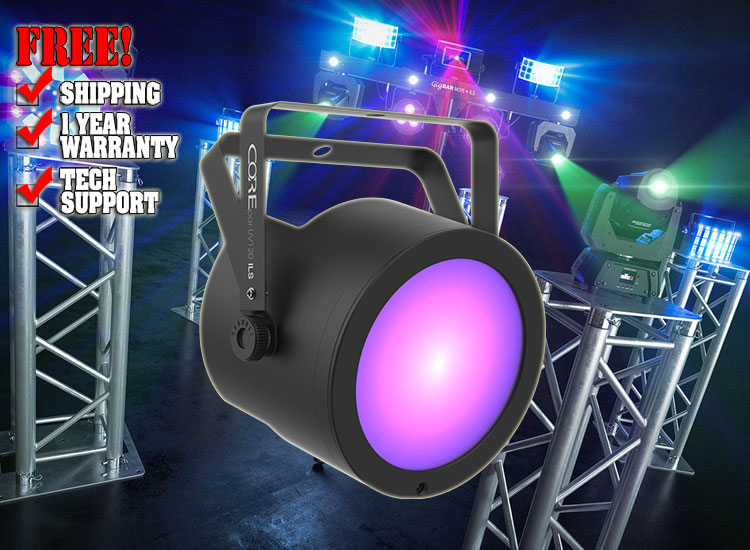

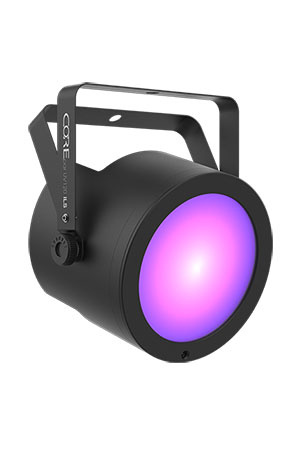

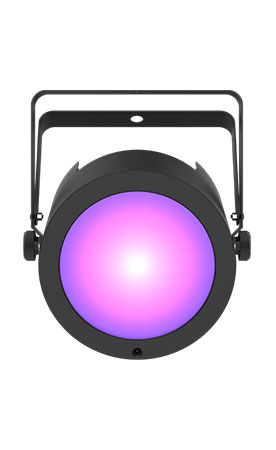

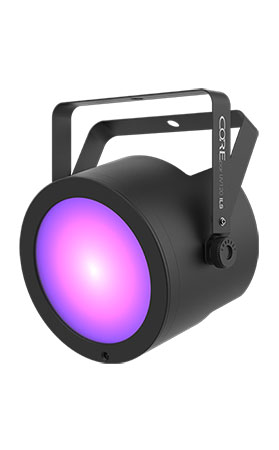

Chauvet COREpar UV 120 ILS

Highlights

• Compact ultra-wide UV wash with COB (Chip-on-Board) technology
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds
• Withstand the harshness of traveling from gig to gig with a robust housing

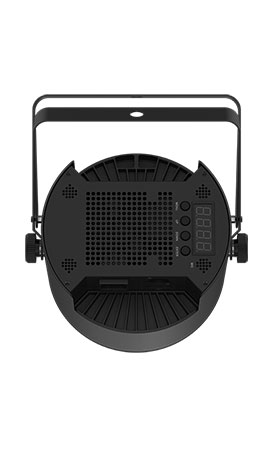

• Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
• Achieve flicker-free video operation with high-frequency LED dimming
• Save time running cables and extension cords by power linking multiple units
• Point-and-shoot operation of sound-activated and automated programs with the optional IRC-6 remote
• Fits best in the CHS-40 VIP Gear Bag

Specifications

• DMX Channels: 1 or 5
• DMX Connectors: 3-pin XLR
• Light Source: 1 COB LED (UV) 120 W, (3.34A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: (with lens): 21°
  (without lens): 44°
• Field Angle: (with lens): 34°
  (without lens): 94°
• Power Linking: 5 units @ 120 V; 9 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 119 W, 1.5 A @ 120 V, 60 Hz
  118 W, 0.9 A @ 230 V, 50 Hz
• Weight: 4.6 lb (2.1 kg)
• Size: 8.9 x 7.4 x 9 in (225 x 185 x 228 mm)
• Approvals: CE, RoHS, UKCA
• Optional Controllers: IRC-6, D-Fi USB

WHAT'S INCLUDED

• Fixture
• Power cord
• Magnetic Lens
• Quick Reference Guide
