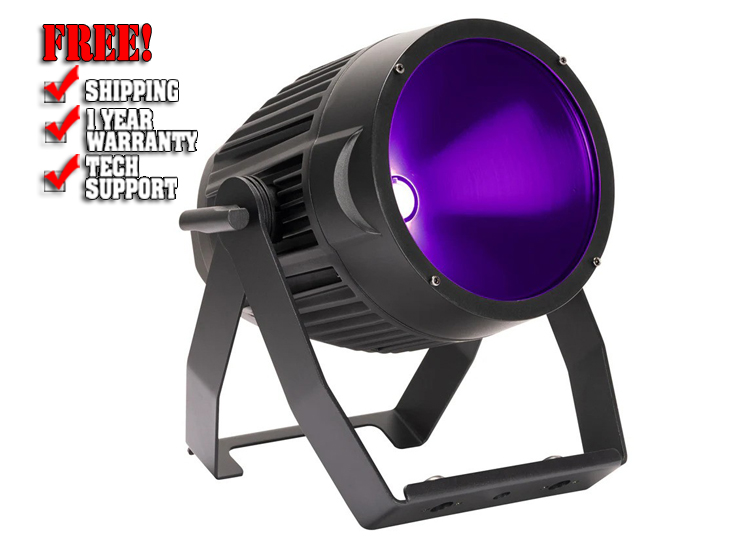

ADJ UV Par 100IP

The UV PAR 100IP is a robust IP65-rated ultraviolet LED fixture that features a 100-Watt C.O.B. (Chip On Board) UV LED. It provides a massive 120-degree beam angle and operates in the 390-399nm wavelength range, delivering vibrant and consistent UV lighting.

The UV PAR 100IP is a robust and adaptable ultraviolet LED fixture, perfect for professional lighting stages and venues that require a strong black light effect. Its IP65 rating ensures dependable protection from dust, sand, and moisture, making it suitable for both indoor and outdoor environments. Featuring a 100-Watt C.O.B. (Chip On Board) UV LED, it provides a massive 120-degree beam angle and operates in the 390-399nm wavelength range, delivering vibrant and consistent UV lighting.

Designed for ultimate control, the UV PAR 100IP supports DMX and RDM protocols, offering a range of dimming modes and curves for tailored lighting. It provides a full 0-100% dimming range and comes with linear, pulse, and random strobe effects. Adjustable LED refresh rates from 900Hz to 25kHz guarantee flicker-free performance, even for video and camera applications. The OLED display with a 4-button touch interface ensures easy operation. Additionally, the UV Par 100IP is equipped with the Aria X2 wireless management system.

Durable and designed for tough environments, the UV PAR 100IP features IP65-rated DMX and power locking inputs. It's all metal housing includes a scissor yoke with Omega bracket receivers for flexible mounting options. CE, FCC, and cETLus certified, this fixture is both safe and dependable for professional use.

Specifications

Light Source:

• 1x 100W C.O.B. Ultraviolet LED
• 120° Beam Angle
• Wavelength: 390-399nm
• 30,000 Hour Average LED Life

Features:

• Aria X2 Wireless Management System
• Control Protocol: DMX amp; RDM
• DMX Modes: 4 (1, 2, 3, amp; 6 Channel Modes)
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre amp; Stage 2)
• Dim Curves: 4 Presets (Square, Linear, Inv. Curve amp; S-Curve)
• Dim Speed control (0.1~10 Seconds)
• Dimming: 0 - 100%
• Linear, Pulse and Random Strobe control
• Adjustable LED Refresh Rates (900~25k Hz)
• With Wired Digital Communication Network
• Display: OLED display with 4-button touch menu

Connections:

• Data Input: IP65 rated 5pin DMX In/Out
• Power Input: IP65 power locking In/Out (with protective rubber caps)

Electrical:

• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: ?W

Physical:

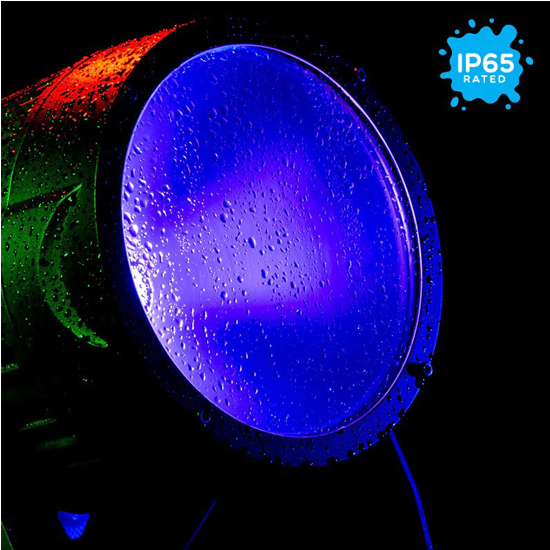

• Outdoor Rated, IP65: protects from dust, sand, moisture, liquid. 6 (Protection against Dust); 5 (Protection against Water)
• Please note: you must use IP65 data and power cables in order for this fixture to be IP65 outdoor rated.
• Safety Cable Loop

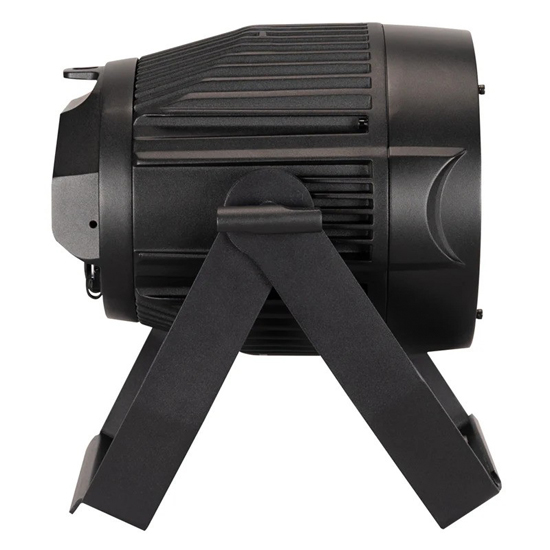

• Scissor yoke with Omega bracket receivers (Omega Bracket sold separately)

Dimensions / Weight:

• Length: 14.4" (367mm)
• Width: 12.4" (316mm)
• Height: 8.7" (111mm)
• Weight: 14.11lbs. (6.4kg)

What's Included:

• 1x IP65, 6' locking power cable (1.83m)

Approvals:

• cETLus (Control # 4010765)
• CE Compliant
• FCC Compliant
