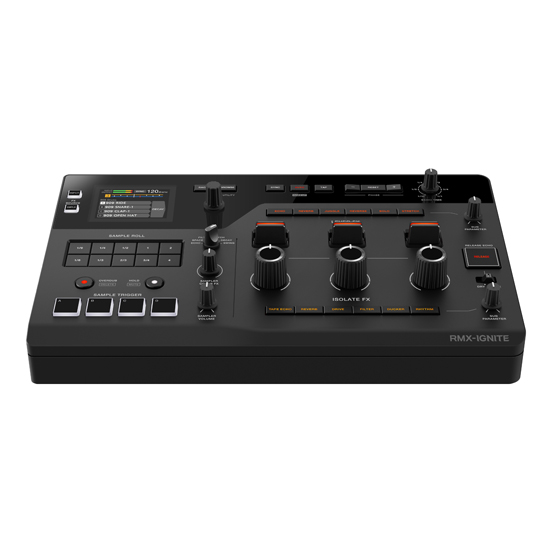

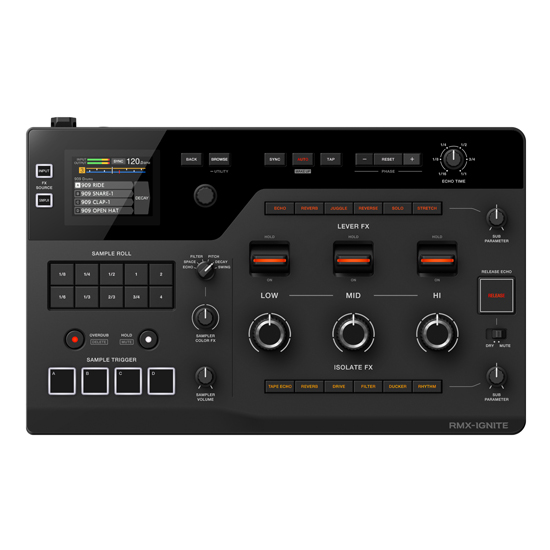

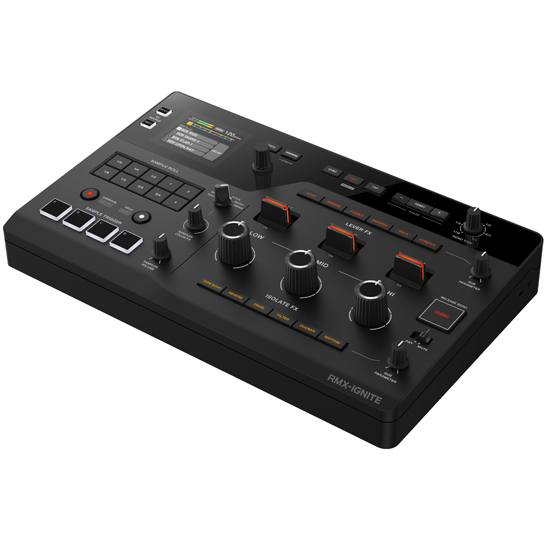

AlphaTheta RMX-IGNITE Professional DJ Effector

High-Fidelity Design

Built around a studio-quality 96 kHz / 64-bit DSP engine and ESS 32-bit AD/DA converters, this system delivers exceptional clarity, depth, and dynamic range. Every component is carefully tuned to let the original sound breathe, capturing subtle detail, nuance, and expression. What you hear remains true to the source, the moment, and your touch.

ADC
ESS ES9821Q (32-bit, 120 dB dynamic range)

DAC
ESS ES9017S (32-bit, 120 dB dynamic range, 4-channel summing up to 124 dB)

DSP Mixing
96 kHz / 64-bit high-resolution internal processing

Features

• 3-Band FX: Includes Lever FX and Isolate FX, allowing effects to be applied independently to high, mid, or low frequency bands. Combining both effect types with sub-parameter knobs enables refined tonal control for rich, expressive performances.
• Lever FX: Three large levers provide instant, dramatic effects including Echo, Reverb, Juggle, Reverse, Solo, and Stretch.
• Isolate FX: Three large knobs offer smooth, dynamic control of Tape Echo, Reverb, Drive, Filter, Ducker, and Rhythm effects.
• Release Echo: A single button instantly clears effects and samples, smoothly returning to the original track with an echo tail.
• Sample Trigger Pad: Four responsive pads allow intuitive triggering of 20 built-in Loopmasters samples. Overdub mode enables looping of 1-bar phrases and layering samples to create dynamic progressions.
• Sample Roll: Samples triggered via the pads can be rolled in 10 patterns. Groove Roll allows multiple buttons to be pressed simultaneously for accented, flowing rolls that add energy and individuality to buildups.
• Sampler Color FX: Control six dedicated effects-Echo, Space, Filter, Pitch, Decay, and Swing-with a single knob to instantly reshape samples with added depth and groove.

Specifications

• Power Requirements: AC 100 V - 240 V, 50 Hz / 60 Hz
• Power Consumption: DC 15 V, 3.0 A
• Power Consumption (OFF): 0.3 W
• Max. External Dimensions (W x D x H): 340.0 x 213.3 x 72.8 mm / 13.4? x 8.4? x 2.9?
• Main Unit Weight: 2.3 kg / 5.1 lbs.
• Operating Temperature: +5 °C - +35 °C
• Operating Humidity: 5% - 85% (no condensation)

Audio

• Sampling Rate: 96 kHz
• A/D, D/A Converter: 32-bit
• Frequency Response: 20 Hz - 40 kHz
• S/N Ratio (Rated Output, A-weighted):
  • CONNECTION switch (MST): 115 dB
  • CONNECTION switch (SEND/RETURN): 114 dB
  • CONNECTION switch (CDJ): 108 dB
• Total Harmonic Distortion (20 Hz - 20 kHz BW): 0.0018%

• Standard Input / Output Level:
  • MST: +4 dBu / +4 dBu
  • SEND/RETURN: -7.8 dBu / -7.8 dBu
  • CDJ: -6 dBu / -12 dBu
• Input Impedance: 47 kO
• Output Impedance: 680 O or less
• Rated Output Level / Load Impedance:
  • MST: 21 dBu / 10 kO
  • SEND/RETURN: 12 dBu / 10 kO
  • CDJ: 3 dBu / 10 kO

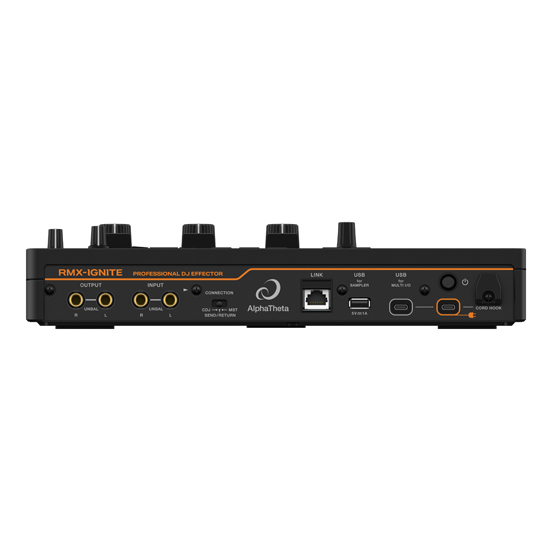

Input/Output Terminals

• Input: 1/4? TS jack x 1
• Output: 1/4? TS jack x 1
• USB Type-A (for SAMPLER): 1 set (5 V / 1 A or less)
• USB Type-C (for MULTI I/O, AC adapter): 2 sets
• LINK: LAN (100BASE-TX) x 1

• Supported Audio Formats:
  • WAV: 16-bit / 24-bit, 44.1 / 48 / 88.2 / 96 kHz
  • AIFF: 16-bit / 24-bit, 44.1 / 48 / 88.2 / 96 kHz
