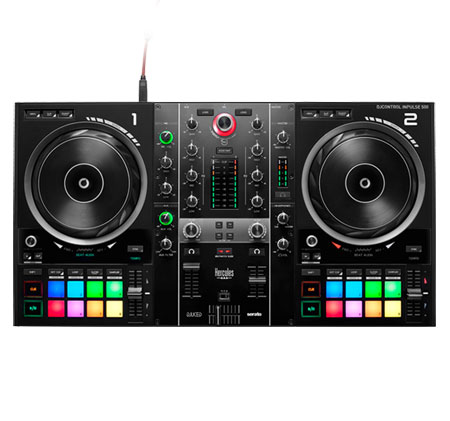

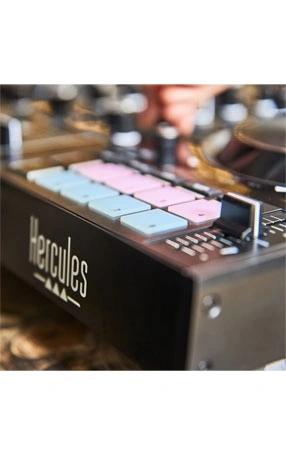

Hercules DJControl Inpulse 500

MIX A BACKUP EXTERNAL SOURCE

Input hardware mixer: the "AUX filter" knob lets you add a filter effect onto an external audio source (smartphone, media player...) - independently of the software!

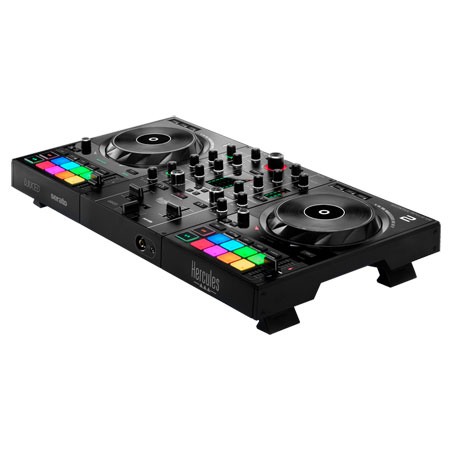

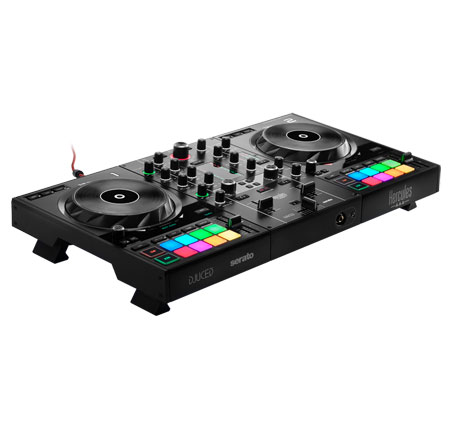

SOLID RETRACTABLE FEET

DJControl Inpulse 500 is 3.1" / 8 cm tall with its feet extended. Elevate your mixing: run wires underneath, and protect the controller from spilled drinks. The base is backlit when the feet are extended (i.e. folded out).

GET SET UP QUICKLY

Powered via USB, DJControl Inpulse 500 has the master outputs you need to connect your speakers (2 x 1/4" / 6.35 mm jack + 2 x RCA), plus two headphones connectors (1/8" / 3.5 mm stereo mini-jack + 1/4" / 6.35 mm stereo jack).

SYNC YOUR TRACKS MANUALLY

It's easy to manually mix one track into another with the BEATMATCH GUIDE light guides, which are supported by both DJUCED and Serato DJ Lite.

CONNECT YOUR MICROPHONE

Connect your microphone to the balanced input, and use the High EQ knob and Low EQ knob to adjust your voice so that you can be heard clearly wherever you're performing.

ASSISTANT

The Intelligent Music Assistant (IMA) in DJUCED suggests well-suited upcoming tracks to be played from your music library, and in Beatport LINK and Beatsource LINK as well. Enable the Assistant to launch Autoplay in Serato DJ Lite.

ADJUST YOUR CROSSFADER

Easily adjust the amplitude of the crossfader according to your style of music. Use the curve switch to change the crossfader curve directly on the controller (mix, scratch or off)!

Specification

Audio

• Built-in audio interface
• Built-in Velvet Sound DSP from AKM: processing audio inputs and outputs
• Master output (speakers): 2 x 1/4" / 6.35 mm jack + 2 x RCA
• Headphones output: 1/8" / 3.5 mm stereo mini-jack + 1/4" / 6.35 mm stereo jack
• Auxiliary input: 2 x RCA + 1/8" / 3.5 mm stereo mini-jack
• Microphone input: balanced 1/4" / 6.35 mm jack
• Audio resolution: 44.1 kHz / 24-bit

Controls Per Deck

• Control per deck:
• Play, Cue, Shift, Sync
• 2 x 8 soft pads with RGB backlighting
• 8 pads x 8 modes (hot cue, loop, slicer...)
• jog wheels with touch detection (diameter of jog wheels: 5.5" )
• Loop: In / Out + loop encoder
• Modes: Vinyl, (+ Slip and Quantize in DJUCED and in Serato DJ Pro)
• Beatmatch guide

Controls On Mixer

General:

• 1 crossfader with curve adjustment
• Master volume knob, headphones volume knob and Cue/Mix knob
• Microphone volume knob with High EQ knob and Low EQ knob
• Auxiliary volume knob and filter knob
• 2 VU-meters + Master VU meter
• Filter/effects rack with 4 effects buttons and 2 filter knobs

Per deck :

• 1 filter knob
• 3 EQ knobs
• 1 gain knob
• 1 volume fader
• 1 VU meter
• Music library controls: Rotary encoder + 2 Load buttons + Assistant button

Beatmatch Guide

• Tempo guide: light guide alongside each tempo fader
• Beat Align guide: light guide underneath each jog wheel

IMA

• IMA (Intelligent Music Assistant)
• The Assistant in DJUCED suggests well-suited upcoming tracks to be played from your music library, and in Beatport LINK and Beatsource LINK as well. Enable the Assistant to launch Autoplay in Serato DJ Lite.
• The Energy feature in DJUCED helps you select tracks according to the energy level for your party

What's in the Box:

• DJControl Inpulse 500
• Body: 21.3 x 11.7 x 2.8" / 54.2 x 29.6 x 7 cm
• Weight: 7 lb / 3.2 kg

• Braided USB cable
• Quick start guide with warranty information
• Serato® DJ Lite and DJUCED® licenses
