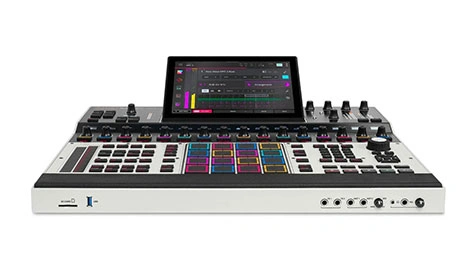

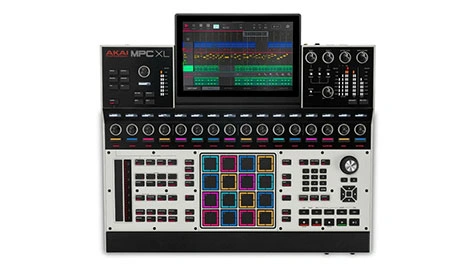

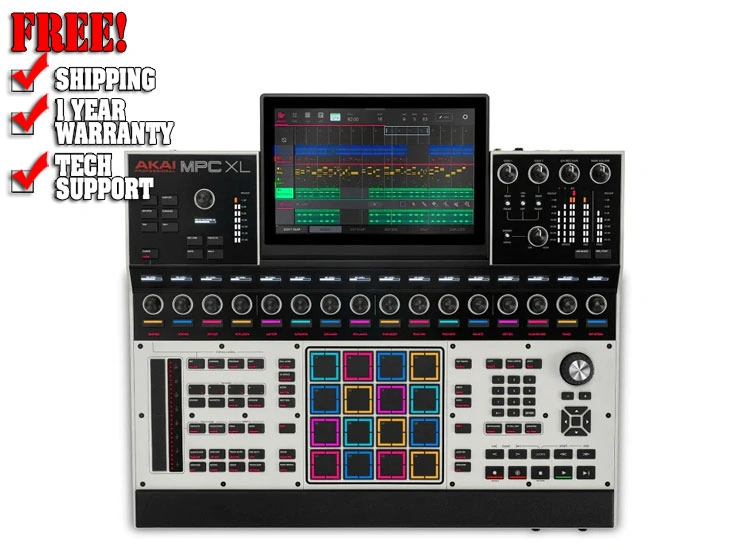

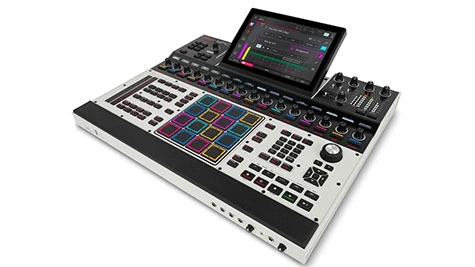

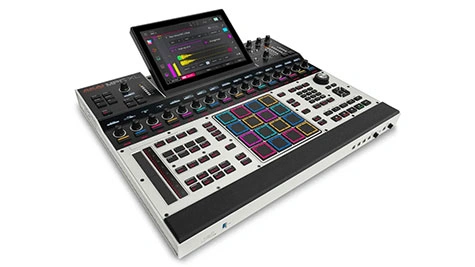

Akai MPC XL Flagship Standalone Workstation

MPC XL puts the power of a full studio right at your fingertips. The most advanced MPC yet, this all-in-one production hub is made for more than sampling and sequencing alone. It’s designed to give you complete creative freedom over every sound, loop, sample, sequence, or idea for your next best beat. It’s your entire workflow—made to work for you.

THE FLAGSHIP OF ALL STANDALONES

MPC XL has everything you need for pro-level music making. It features ultra-responsive MPCe pads, a dedicated step sequencer, touch-sensitive Q-Links with OLED displays, a next-gen 8-core processor, 16 GB RAM, hands-on performance controls, advanced sequencing tools, deep I/O connectivity, and so much more. Integrated with MPC3 OS, this system supports up to 32 plugin instruments, 16 audio tracks, and 256 voices, making it a studio-grade workhorse.

A Complete
Studio CenterpiecE

The flagship of all standalone music production systems, MPC XL is an all-in-one studio hub. Produce your entire album, drive your external hardware, and command your setup from one powerful instrument—no computer required.

Powerful Processing

Powered by a new Gen 2 8-core processor with 16GB of RAM, MPC XL delivers four times the performance of previous MPCs. Load multiple plugin instruments, run complex sessions, and navigate your projects without interruption.

CREATIVE CONTROL AT YOUR FINGERTIPS

MPCe pads with 3D-sensing technology brings a new level of expression to beatmaking and production. Each pad features four distinct quadrants, enabling advanced X/Y control, sound morphing, looping, layering, and modulation for the most dynamic playing experience.

MADE TO WORK WITH YOUR WORKFLOW

Easily view and access every element of your production with this system’s 10.1" HD multi-gesture touchscreen with tilt. MPC XL has 16 Q-Link knobs, each with its own OLED display, providing clear visual feedback for mixing, editing, and sound design. XL Channel Command offers instant access to levels, sends, outputs, and recording parameters with a dedicated OLED and encoder for fast, intuitive navigation. An assignable performance touch-strip adds tactile control over FX, note repeats, faders, and more.

Performance-Ready Sequencing

Build, edit, and perform ideas with the integrated 16-step RGB function button sequencer. Whether you’re crafting complex beats, sequencing external synths, or arranging clips, the system gives you complete control over your entire workflow.

Connect Your
Entire Studio

Professional-grade I/O options allow for convenient connectivity with external gear: dual XLR/TRS combo inputs with mic preamps and phantom power, dedicated instrument inputs for guitars and keyboards, eight individual line outputs for routing and mixing, and eight stereo 1/8” CV/Gate outputs providing 16 total CV channels. USB-C delivers 24 channels of audio I/O, 32 channels of MIDI, and seamless sampling from smart devices.

Storage and Setup That Scales with You

A 256GB internal SSD gives you plenty of space for projects, samples, instruments, and presets. With no computer needed and instant one-to-one function buttons for every major MPC XL feature, you can stay focused on creating instead of menu diving.

Loaded with Inspiration

Jump straight into production with an extensive library of premium plugin instruments, effects, and samples. MPC XL’s included software package offers a deep toolbox of inspiration for beatmakers, producers, finger drummers, DAWless performers, synthesists, and songwriters alike.

EXPLORE THE MPC XL WITH ANDY MAC

In this video, we join Andy Mac for a deep dive into the powerful new features of the MPC XL, exploring what’s new, what’s possible, and how it all comes together to supercharge your creative workflow

KEY FEATURES

• Standalone hardware with MPC3 OS for a streamlined workflow
• Gen 2 8-core processor with 4x the processing power of previous MPCs
• 16GB RAM for running multiple plugins simultaneously
• 256GB internal SSD storage for saving projects, plug-in instruments, samples, and presets
• Expressive MPCe pads with 3D-sensing technology with 4 quadrants per pad
• Assignable performance touch-strip for tactile control of Performance FX, note repeats, Channel faders, and more
• Step sequencer with 16 RGB function buttons
• 16 Q-Link knobs with performance-control OLEDs for immediate visual feedback

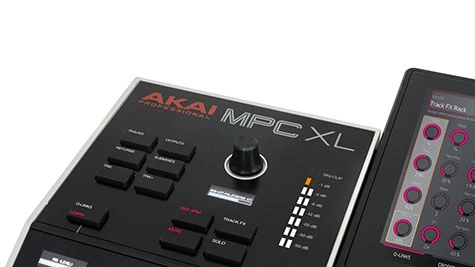

• XL Channel Command allows for quick access to mixing and recording parameters (including level, sends, and outputs) at the touch of a button—with a dedicated OLED display and encoder for parameter control and visual feedback
• One-to-one function buttons for immediate access to every feature

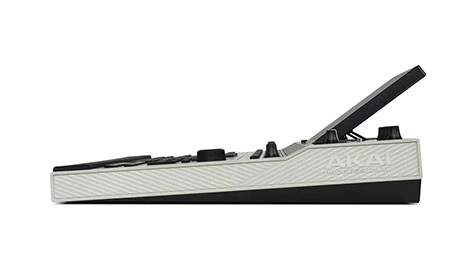

• 10.1” HD multi-gesture touchscreen with tilt
• 2 XLR/TRS combo inputs with mic preamps and phantom power for crystal-clear recordings
• 2 dedicated instrument inputs for recording guitars and keyboards
• 8 separate line outputs for external routing and mixing
• USB-C connectivity for 24 channels of audio I/O, 32 channels of MIDI IO, and easy connectivity to sample from smart devices
• 8 stereo 1/8” CV/Gate outputs for a total of 16 CV outs
• Wi-Fi and Bluetooth To enable wireless collaboration and file transfer
• MPC Pro Pack. Powered by next-gen MPC3 OS and enhanced with new MPC Pro Pack features like studio-grade time-stretch, clip-launching, expanded CV control, and new pro plugins
• Clip Matrix. Clip launch workflow for enhanced song arranging and performance

Technical Specifications

Digital Audio System

• ADCs: 24-bit @ 44.1, 48, or 96 kHz
• DACs: 24-bit @ 44.1, 48, 88.2, or 96 kHz
• Digital Signal Processing: 32-bit floating point

Mic Inputs 1–2

• (2) balanced XLR+1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.19 / -0.16 dB)
• Dynamic Range: 109.8 dB (A-weighted)
• SNR: 109.3 dB (1 kHz, +4 dBu, A-weighted)
• THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
• Preamp EIN: -134 dBu (max gain, 40 Ω source, A-weighted)
  -129 dBu (max gain, 150 Ω source, unweighted)
• Maximum Input Level: +12.7 dBu
• Sensitivity: -45.5 dBu
• Gain Range: 58.2 dB

Line Inputs 1–2

• (2) balanced XLR+1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.09 / -0.05 dB)
• Dynamic Range: 109.8 dB (A-weighted)
• SNR: 109.4 dB (1 kHz, +4 dBu, A-weighted)
• THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
• Maximum Input Level: +20.1 dBu
• Sensitivity: -9.6 dBu
• Gain Range: 29.7 dB

Line Inputs 3–4

• (2) balanced XLR+1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.09 / -0.05 dB)
• Dynamic Range: 110.8 dB (A-weighted)
• SNR: 109.4 dB (1 kHz, +4 dBu, A-weighted)
• THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
• Maximum Input Level: +20.3 dBu
• Sensitivity: -10.3 dBu
• Gain Range: 30.6 dB

Instrument Inputs 1–2

• (2) balanced XLR+1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.15 / -0.05 dB)
• Dynamic Range: 111.0 dB (A-weighted)
• SNR: 109.6 dB (1 kHz, +0 dBu, A-weighted)
• THD+N: 0.0013% (1 kHz, +0 dBu, -1 dBFS)
• Maximum Input Level: +10.1 dBu
• Sensitivity: -19.6 dBu
• Gain Range: 29.7 dB

Phono Inputs

• (2) unbalanced RCA
• Dynamic Range: 103.3 dB (A-weighted, 65 mVrms @ 1 kHz, -1 dBFS, 20 Ω source)
• SNR: 97 dB (A-weighted, 4 mVrms @ 1 kHz, 20 Ω source)
• THD+N: 0.036% (1 kHz, -46 dBu, -1 dBFS)
• Maximum Input Level: 65 mVrms (1 kHz)
• Sensitivity: 2 mVrms (1 kHz)

Main Outputs 1–2

• (2) impedance-balanced 1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.31 dB)
• Dynamic Range: 115.6 dB (A-weighted)
• THD+N: 0.003% (1 kHz, -1 dBFS)
• Maximum Output Level: +20.3 dBu
• Output Impedance: 100 Ω

Line Outputs 3–8

• (6) impedance-balanced 1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.24 dB)
• Dynamic Range: 116.3 dB (A-weighted)
• THD+N: 0.005% (1 kHz, -1 dBFS)
• Maximum Output Level: +20.4 dBu
• Output Impedance: 100 Ω

Headphone Output

• (1) 1/4” (6.35 mm) stereo headphone
• (1) 1/8” (3.5 mm) stereo headphone
• Dynamic Range: 100.6 dB (A-weighted)
• THD+N: .025% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω headphones)
• Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.31 dB)
• Maximum Power Delivered: 260 mW (< 1% THD, 32 Ω headphones)
• Maximum Output Level: +20.4 dBu
• Output Impedance: 32 Ω

Pads

• (16) velocity- and pressure-sensitive pas with 3D-sensing technology
  (8) banks (selectable via Pad Bank buttons)
• Knobs: (17) 360° touch-sensitive Q-Link knobs
  1) 360° encoder with push
  (7) 270° knobs (gain, mix, level)
• Buttons: (105) dedicated buttons : (36) single-color LED , (43) dual-color LED , (1) dual color + red , (17) RGB LED , (8) unlit
• Display: (1) 1280×800 full-color, optically bonded, multi-touch display (10.1” / 256.5 mm)
  (17) monochrome 128×32 OLED displays

CPU

• Processor: 8-core processor
• RAM: 16 GB
• Storage: 256 GB internal NVMe SSD + SATA expansion bay

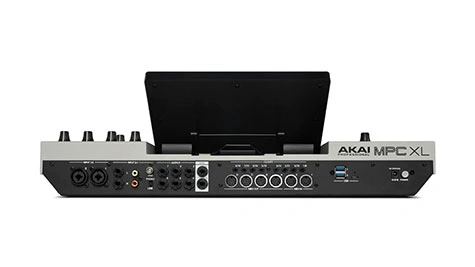

Connections

• (2) 1/4” (6.35 mm) combo XLR/TRS inputs (stereo pair)
• (2) 1/4” (6.35 mm) TRS line inputs (stereo pair)
• (2) RCA phono inputs (stereo pair)
• (2) 1/4” (6.35 mm) instrument inputs
• (2) 1/4” (6.35 mm) TS footswitch inputs
• (8) 1/4” (6.35 mm) TRS outputs (4 stereo pairs)
• (1) 1/4” (6.35 mm) stereo headphone output
• (1) 1/8” (3.5 mm) stereo headphone output
• (4) 5-pin MIDI outputs
• (2) 5-pin MIDI inputs
• (8) stereo 1/8” (3.5 mm) CV/Gate outputs
• (1) USB Type-C port
• (3) USB Type-A ports
• (1) SD card slot
• (1) power adapter input
• (1) drive bay for 2.5” SATA drive

Wireless

• Wi-Fi
• Bluetooth

Power

• via power adapter: 19 V, 3.42 A, center-positive (adapter included)

Dimensions

• 21.4” × 19.2” × 3.7”
• 543 × 488 × 94 mm

Weight

• 15.87 lbs
• 7.2 kg

  What makes the MPC XL different from older MPCs?
A:

• It has a Gen-2 8-core processor (≈4× more powerful)
• 16GB RAM vs 4GB on older models
• 256GB internal storage + ~30GB sounds

  Is the MPC XL standalone or does it need a computer?
A: Fully standalone (no computer needed). Can connect to a computer for:

• Controller mode
• Audio interface use
• File transfer

  Can I upgrade storage?
A: Yes. It supports:

• Internal SATA drive
• SD card slot
• USB storage devices

  How many pads and controls?
A:

• 16 MPCe pads (3D sensing / expressive)
• 16 Q-Link knobs with OLED displays
• 16 RGB step sequencer buttons
• Touch strip + encoder knobs

  Can I expand plugins and instruments?
A: Yes.

• Supports 32 plugin instruments simultaneously
• Includes built-in synths like Hype, Fabric, Jura
