Marantz Professional PMD-100CD

DENON PROFESSIONAL'S VERSATILE DN-500BDMKII BLU-RAY PLAYER

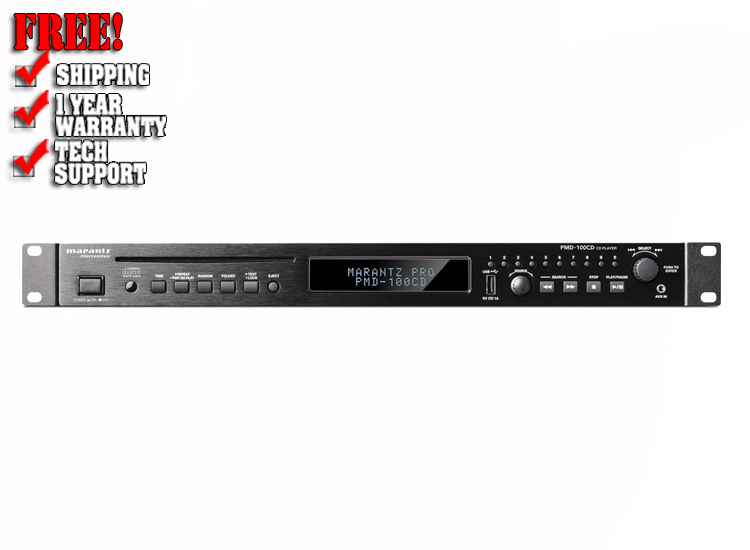

The Marantz Professional PMD-100CD is a professional CD/USB media player which can play audio from CDs, CD-ROM, and removable USB drives. The unit features a front-accessible 3.5mm auxiliary input for compatible devices and a Type-A USB port for thumb drives. With such a wide array of connection possibilities, the unit is suitable both for home audio and commercial applications—including dance and fitness centers, retail settings, education scenarios, and more.

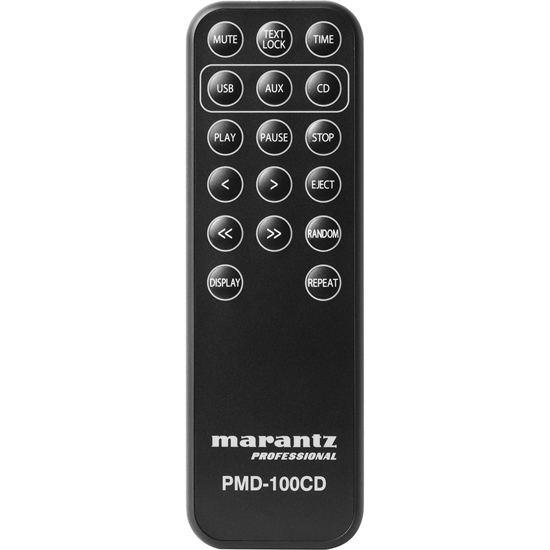

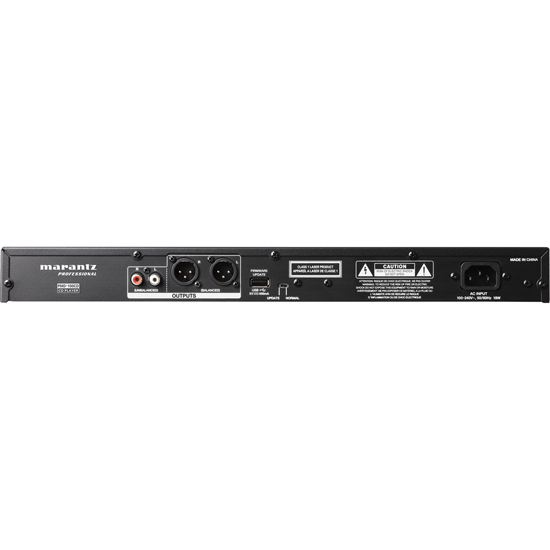

The CD player offers a superfast, slot-in CD mechanism, while the 10-key direct-track access buttons and random, repeat, and power-on-play playback modes provide a wide variety of options for easy operation. The rear panel sports a pair of balanced XLR and stereo RCA connectors ensuring compatibility with most sound systems. A USB port is also available on the back with a dedicated switch offering normal use or an update setting for firmware upgrades. The PMD-100CD includes a wireless IR remote and ships with rack ears, a power cord, and a stereo RCA cable.

Features:

• Plays CD media and digital audio files
• Superfast loading, slot-in CD mechanism
• Random, repeat, and power-on-play playback modes
• Supports removable USB thumb drive
• 3.5mm AUX input for playback of other audio devices
• 10-key direct-track access buttons
• IR remote included
• Balanced XLR and unbalanced RCA line outputs

Specifications

• Performance
  • Frequency Range 20 Hz to 20 kHz ± 1 dB
  • Dynamic Range >85 dB
  • Max Output Level +4 dBu (Balanced)
  • I/O Impedance Input:10 kOhms , Output:10 kOhms
  • Signal to Noise Ratio >95 dBA
  • Max Sample Rate/Resolution 44.1 kHz
  • Total Harmonic Distortion (THD)
  • Bit Rates 32 to 320 kb/s + VBR
• Connectivity
  • Audio Ports: 1 x 1/8" / 3.5 mm TRS Input, 1 x 2RCA Unbalanced, 2 x XLR Balanced
  • Video Ports None
  • USB Ports 1 x USB Type-A (External Memory), 1 x USB Type-A (Service)
  • Network I/O None
  • Control Ports None
  • Bluetooth None
• Compatibility
  • Supported Disc Types CD-DA, CD-R, CD-ROM
  • Audio File Formats MP3, WAV
  • Max Supported Storage Capacity 2 TB
  • Supported File Systems FAT16, FAT32
  • Digital Media Slot None
• General
  • Power Consumption 19 W
  • AC Input Power 120 VAC, 60 Hz
  • Operating Temperature 41 to 95°F / 5 to 35°C
  • Operating Humidity 25 to 85%
  • Dimensions 19.0 x 13.6 x 1.7" / 482.6 x 345.4 x 43.2 mm (Including Rack Ears) 17.0 x 13.6 x 1.7" / 431.8 x 345.4 x 43.2 mm
  • Weight 7.94 lb / 3.6 kg
• Packaging Info
  • Package Weight 9.18 lb
  • Box Dimensions (LxWxH) 23 x 13.25 x 4.25"
