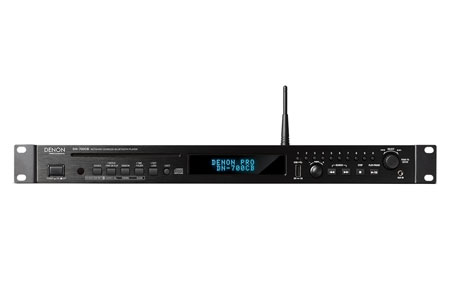

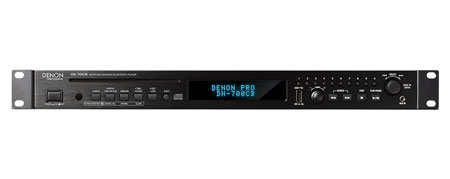

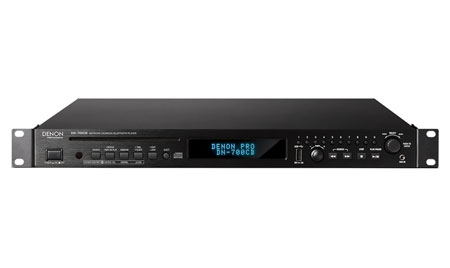

Denon DN-700CB

Network CD/Media Bluetooth® Player

The DN-700CB is a highly-versatile media player with the added functionality of RS-232C and full network control. The DN-700CB plays files from CD, USB, Bluetooth-enabled devices and files on a local network - along with a 3.5mm AUX input for connecting external playback devices. Perfect for retail, house-of-worship, education and hotel/conference applications, its intuitive web-based interface gives the user full control of the DN-700CB from setup menus and transport control to hot-start playback.

Features:

• Media player with Network and RS-232C control
• Intuitive Web Browser and Infrared user interface
• File playback from CD, USB, Network Audio, Bluetooth and AUX
• Tempo control for CD and USB
• 10-track hot start buttons for CD, USB and NET playback

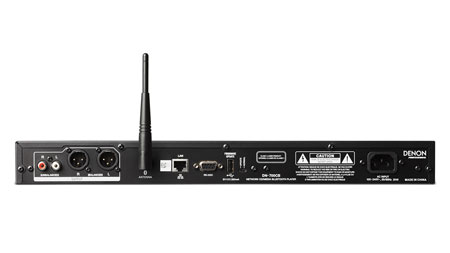

• Two Bluetooth antennas included

Specification:

• System: Media player

Compatible Media

• CD
• 3.5mm auxiliary device
• Type A USB device (mass storage class)
• Network-connected device (via Ethernet port)
• Bluetooth audio

Supported Device Formats, File Systems

• CD: CD-DA, CD-ROM (ISO9660), CD-R
• USB: FAT16, FAT32

Supported File Formats (for CDs, USB devices and network-connected devices)

CD-DA: Sample rate: 44.1/48kHz

• Bit rate: 16/24 bit
• File extension: .cda

WAV: Sample rate: 44.1/48kHz

• Bit rate: 16/24 bit
• Format: stereo/mono
• File extension: .wav

MP3: Sample rate: 44.1kHz

• Bit rate: 32 kbps to 320 kbps, CBR and VBR
• Format: MPEG1 Audio Layer 3
• File extension: .mp3

• Number of Channels: 2 (stereo)
• Audio Frequency Range: 10 Hz - 20 kHz (± 1.0db)
• Signal-to-Noise Ratio: > 90dB (A-weighted)
• Total Harmonic Distortion: < 0.01%
• Dynamic Range: > 85dB
• Channel Separation: > 80dB
• Bluetooth
• Bluetooth Version: 4.0
• Output Class: Class 2
• Supported Bluetooth Profiles: A2DP, AVRCP (1.3/1.4)
• Supported Bluetooth Codecs: SBC, MP3
• Bluetooth Range: 82 ft. / 25 m

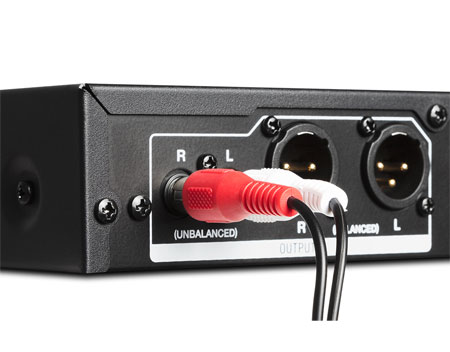

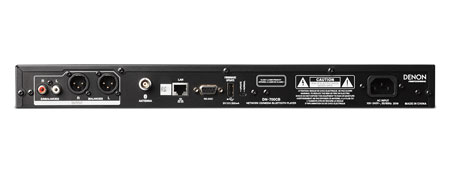

Outputs

• Analog Out L/R (unbalanced)
• Type: RCA terminal
• Load impedance: > 10 kΩ
• Output level: 2 Vrms @ 10 kΩ load
• Analog Out L/R (balanced)
• Type: XLR
• Load impedance: > 10 kΩ
• Output level: +4 dBu

Inputs

• Aux in
• Type: 1/8" (3.5mm) TRS terminal
• Input Impedance: > 10 kΩ
• Maximum input level: 1 Vrms

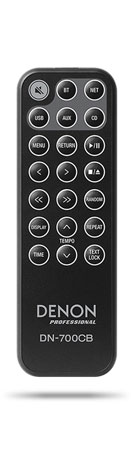

Remote Control

• Included Remote
• Infrared protocol: NEC format
• Transmit output level: > 200mVp-p

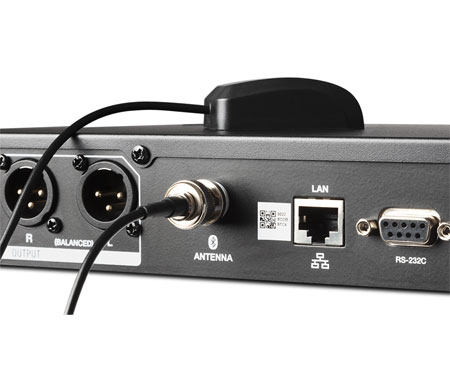

Serial Remote (D-sub 9-pin Female; RS-232C), Not Included

• Mode: Full Duplex
• Baud Rate: 9600/38400/115200 b/s
• Data: 8 bits (Start Bit: 1 bit; Stop Bit: 1 bit)
• Parity: None; Flow Control: None

• IP Control: Web API: HTTP

Other / General

• File Folder Limits
• Storage capacity: up to 2TB
• File size: up to 2GB
• File name length: up to 255 characters
• Number of files: up to 999 (for 1 folder)
• Number of folders: up to 999 folders (including the root directory)
• Number of folder levels: up to 8 (including the root directory)
• Folder name length: up to 255 characters

• Power: 100-230 VAC, 50/60 Hz; Power consumption: < 30W
• Environmental Conditions
• Operating temperature: 41 - 95°F (5 -35°C)
• Operating humidity: 25 - 85%, no condensation

Dimensions (width x depth x height)

• 18.98" x 1.69" x 7.87" (482 x 43 x 200mm) with rack ears
• 16.93" x 1.69" x 7.87" (430 x 43 x 200mm) without rack ears

• Weight: 5.5 lb (2.5 kg)
