PreSonus DigiMax D8 Eight-Channel Preamp with 48 kHz ADAT Output

Description

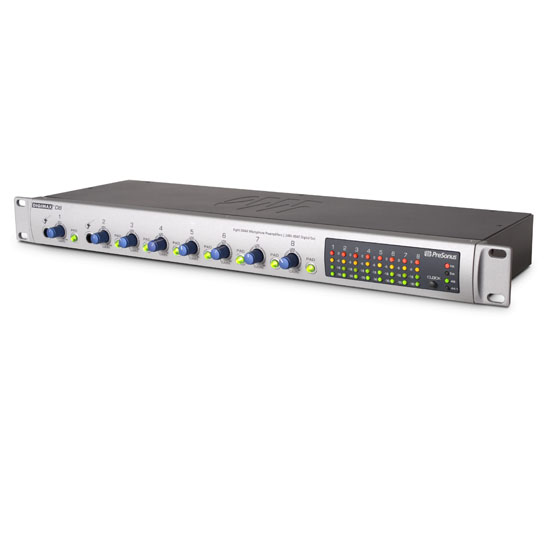

The DigiMax D8 from Presonus is an eight-channel microphone preamplifier, featuring eight Class-A XMAX microphone preamps, coupled with eight-channels of analog-to-digital conversion via an ADAT digital output. Each of the preamps include a direct output (in addition to the digital output), a variable trim control, LED metering, a 20dB pad and +48V phantom power (switchable in pairs).

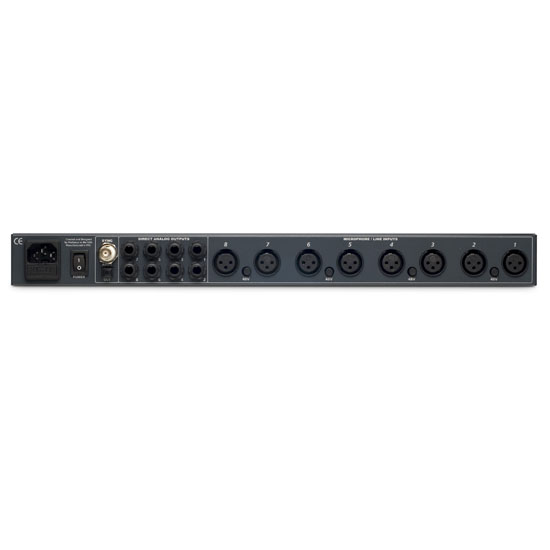

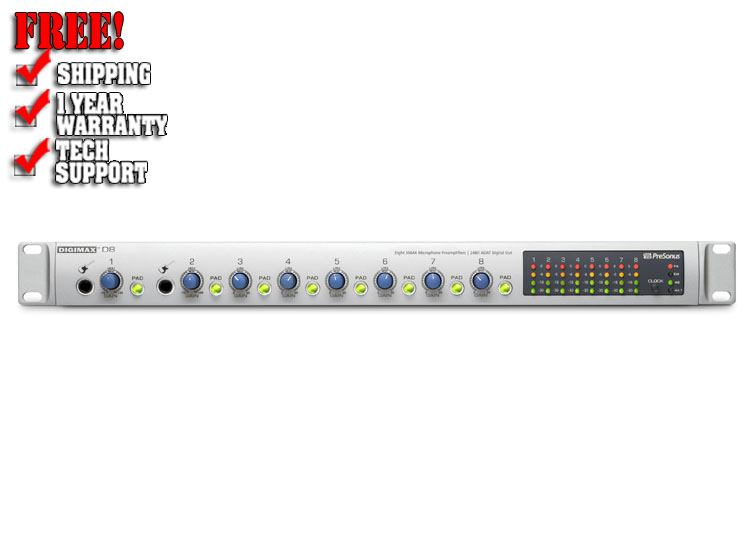

The front panel features two 1/4", Hi-Z instrument inputs for plugging-in electric guitars. The balanced 1/4" TRS outputs on the real panel allow the unit to be used as a standalone microphone preamp with any analog mixing console. The unit also includes Wordclock sync input for ultra-low jitter and robust synchronization, making the DigiMax D8 a perfect front-end solution for any DAW with an ADAT optical input.

Features

• Microphone/line front-end with ADAT output for DAW systems
• Eight, XMAX Class-A microphone preamps with trim controls
• Two Hi-Z instrument inputs on the front panel
• Eight, line level direct outputs
• -20dB pad on every channel
• 24-bit ADAT digital output
• 44.1 and 48kHz internal sampling rates
• External sync via BNC Wordclock input
• LED input metering per channel

Specifications:

• Number of Channels : 8
• Inputs : 8 x XLR Microphone/Line, 2 x 1/4" TS phone Instrument (front panel)
• Output : 8 x 1/4" TRS phone Line
• Phantom Power : +48V, switchable in pairs
• Multi Function : A/D conversion
• Gain Range : -4dB to 50dB
• Maximum Output Leve : Not specified by manufacturer
• Frequency Response : 20Hz to 150kHz, +/-3.0dB
• Noise : SNR: >101dB (unweighted, reference +4dBu, unity gain, 20Hz to 22kHz)
• Dimensions (WxDxH) : 1U 19" rackmount chassis
• Weight : 6 lbs (2.7 kg)
• Specialties : 44.1 and 48kHz internal sampling frequency selection for analog-to-digital converter BNC Wordclock input for external sync
• Package Weight : 6.5 lb
• Box Dimensions (LxWxH) : 23.5 x 12.4 x 5.1"
