JBL EON ONE PRO

Description

All-In-One, Rechargeable, PA System

Get that world-renowned JBL Professional sound, anytime, anywhere with the new JBL EON ONE PRO, the first, portable, battery-powered, linear-array PA system in its class. With a lighter, more compact design and up to six hours of play time, you can now take your performances to places you’ve only dreamed of.

Take Your Performance to New Places

The EON ONE PRO empowers you to give your fans incredible live experiences, wherever your inspiration takes you—on a mountain or the beach, subway or streetside—even where there's no power outlet.

Cut the Cord

Perform for up to 6 hours without recharging, courtesy of its extended-life lithium-ion battery. Leave the generator at home.

Legendary JBL Professional Sound

The culmination of over 70 years of professional audio innovation, the EON ONE PRO provides superior sound quality so you can sound great no matter where you play.

Sound Coverage Across All Angles

EON ONE PRO optimizes sound dispersion so your audience can hear your performance from all angles—even from behind. EON ONE PRO even recalibrates its sound depending on the number of high-frequency height spacers you choose when setting up

Bass You Can Feel   Even without power, you can still sound powerful. The EON ONE PRO houses an 8” subwoofer that delivers low-end response that your audience can really feel.

One-Hand, Easy-to-Carry Design

EON ONE PRO’s lightweight and versatile design is easy-to-carry—at just 37.5 pounds, you only need one hand. Plus, it fully collapses into the base, no shoulder bags or multiple trips required.

Keep The Party Going Stream music from any Bluetooth-enabled device. With built-in USB, you won’t need to worry about keeping it charged—just plug it in. There’s even a built-in tablet stand so your device is always in reach.

Capture Your Performance or Set the Vibe The EON ONE PRO features an accessory mount located at the top of the line-array speakers—simply attach a camera and you’re ready to record. You can also add a lighting element to set the perfect vibe.

• Battery : lithium-ion rechargeable, 6-hour play time
• Max SPL : 118 dB (peak)
• Bass : 8” LF bass unit
• Driver : 6 x 2” HF drivers

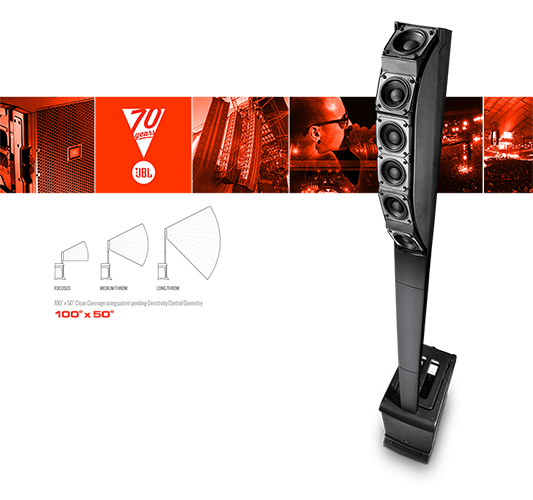

• 100° x 50° Clean Coverage using patent-pending Directivity Control Geometry

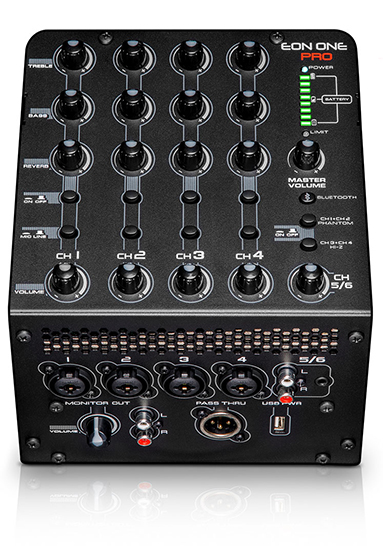

• Seven-channel mixer with Bluetooth streaming audio, +48V phantom power, Hi-Z, and a pass-thru XLR connector
• USB charging port and tablet stand

System
System Type	Battery-operated portable line array with powered mixer
Maximum SPL	118 dB peak system output (pink noise)

Battery
Type	Extended-life lithium-ion
Charge Time	5 hours
Run Time	Up to 6 hours

Amplifier
Design	Class-D
System Power	System Power Rating: 250 W LF/HF

Mixer
Input Connectors	6 inputs (4 x mono mic/line, 1 x stereo)
Channels	1-4: XLR-1/4" / 6.35 mm combo connectors (XLR = mic-level input, 1/4" = line-level input) (Enabling the CH3+CH4 HI-Z button switches 1/4" inputs on channels 3-4 to accept high-impedance signals from instruments) 5-6: 3.5 mm stereo jack or stereo RCA connectors
Input Impedance	Ch 1-4 combo XLR: 40 KOhms balanced Ch 1-2 Combo TRS: 40 KOhms balanced Ch 3-4 Combo TRS (CH3+CH4 HI-Z button disabled): 40 kOhms balanced Ch 3-4 Combo TRS (CH3+CH4 HI-Z button enabled): 40 kOhms unbalanced Ch 5-6 RCA: 5 kOhms unbalanced Ch 5-6 3.5 mm: 10 kOhms unbalanced
Phantom Power	48 V (CH 1-4 XLR inputs)
Bluetooth	2-channel Bluetooth audio input streaming (stereo signal is fed to the Monitor Out jacks while mono-summed signal is fed to the line array speakers)
Output Connectors	3 outputs (1 x stereo RCA monitor output 1 x mono pass thru output)
Output Impedance	RCA Monitor Outputs: 100 Ohms unbalanced XLR Pass Thru Output: 37 Ohms balanced
Signal Indicator	Limit: Yellow LED indicates limiter active condition
EQ Section	Individual channel Bass and Treble controls, center detent, ±12 dB cut and boost
Limiter	System Limiter: On-board DSP limiting and tuning

Speaker
LF Driver	LF: 1 x 8.0" / 203.2 mm woofer
HF Driver	HF: 6 x 2.0" / 50.8 mm drivers
Coverage Pattern	80º x 60º (H x V)
Enclosure	Polypropylene
Grille	Powder-coated perforated steel

Physical Specifications
Dimensions (H x W x D)	15.8 x 10.5 x 23.4" / 401.3 x 266.7 x 594.4 mm
Weight	37.5 lb / 17.0 kg

Packaging Info
Package Weight	49.0 lb
Box Dimensions (LxWxH)	26.5 x 21.0 x 16.5"
