QSC TouchMix-8 Compact Digital Mixer with Touchscreen + (2) QSC K12 Speakers with Stands and Cables

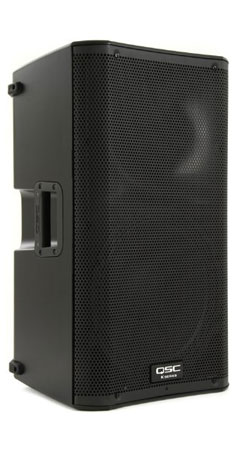

QSC K12 SPEAKERS:
1,000 watt, efficient and lightweight class-D power module
Lightweight (41 lb.)
Professional appearance and rugged construction
Directivity Matched Transition (DMT) and Intrinsic Correction DSP tuning for accurate, undistorted performance across the entire sound field
GuardRail technology discreetly protects the system from damaging overload
DEEP mode for enhanced low-frequency extension without a subwoofer
Locking IEC power cable
XLR and 1/4" connectors
Phone Mic/Line and Line inputs with Loop-thru connectors and independent level controls.
Phono (RCA) inputs
Three 2-way models—each with coverage pattern optimized to match the LF driver
Front mounted LED may be switched off or indicate "LIMIT" or AC Power On
Dual angle, 35 mm pole socket with Tilt-Direct allows the speaker to be angled down to put the energy on the audience instead of the back wall
1-3/4" voice-coil compression driver
High Pass Filter for use with subwoofers
1,000 watt subwoofer, efficient and light-weight Class D power module
Threaded pole socket for solid, secure pole mounting

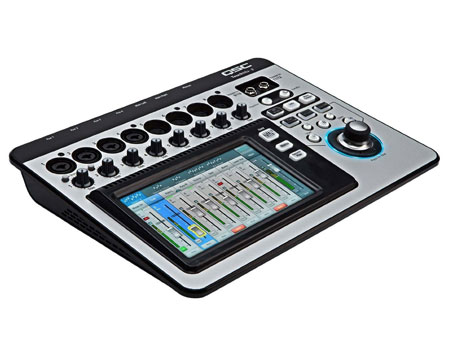

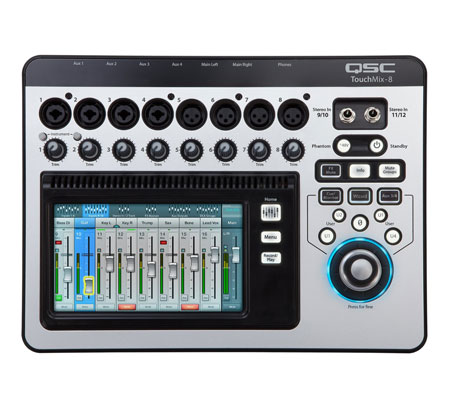

QSC TOUCHMIX 8:
Professional Results Made Easy
Simple Mode makes getting great results easy and fast (similar to the “Auto” function on a DSLR camera)
Advanced Mode gives pro users total control over all mixer parameters
Wizards and preset libraries created specifically for live sound reinforcement assist the user with channel setup, effects selection and more
Built-in color touchscreen combined with hardware controls for fast and intuitive operation
“Big Mixer” Features and Specifications
4-band full parametric EQ and variable high-pass filter on all input channels.
Gate and compressor on all input channels
Four premium stereo DSP’s with a full selection of professional digital effects
1/3 octave graphic EQ, notch filters, limiters and delay on main and aux. outputs, DCA’s and mute groups High Quality microphone preamps Channel-selectable phantom power
Multiple monitor mixes including ability to drive in-ears directly
Multitrack direct to disk recording/playback via external USB hard drive (not included.) No computer required. TouchMix delivers all the processing power and features that a professional live sound engineer could want.
Compact and Complete
Approximately the size and weight of a small laptop computer
Operation via internal color touch-screen and rotary dial, mobile device or both simultaneously
USB Wi-Fi adapter included. No additional network hardware required for remote control
Includes padded carrying case for protection and easy transport

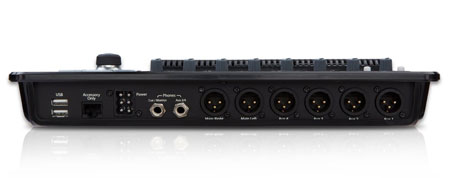

12 total inputs: 8 mic, (four with XLR/TRS combo connector) and two stereo line
Stereo Main L/R outputs (XLR)
Four mono auxiliary mixes (XLR).
Mono auxiliaries may be linked for stereo use.
Auxes 3/4 can also drive wired in-ear monitors (IEM) directly.
Superb sound quality
Class-A microphone pre-amps
32-bit floating point processing
24-bit AD & DA convertors
Input channels are fully-featured:
Four-band full parametric EQ
Variable high-cut and low-cut filters
Compressor (with de-esser)
Main and auxiliary outputs feature:
1/3-octave graphic EQ
Four professional quality stereo DSP effects. Choose from:
Two types of reverb
A pitch correct processor is assignable to any input channel.
Eight DCA and eight mute groups.
Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.
Great results and easy to use
Input channel preset library features over 100 presets developed by experienced concert engineers specifically for live sound applications.
Wizards assist with input gain adjustment and effects selection and routing.
On board Info system gives you instant access to the user manual.
Save your own channel presets and complete mixer scenes to internal memory or USB device.
Capturing live performance to multi-track has never been easier. Record 14 tracks (all inputs plus a stereo mix) directly to USB hard-drive. Mix down on TouchMix or import into your favorite DAW.
Remote control via iPad®.
USB Wi-Fi interface and carrying case are included.
