8x CHAUVET DJ SlimPAR 64 Package

8x CHAUVET DJ SlimPAR 64 + Bags + Clamps + Controller + Cables & Truss

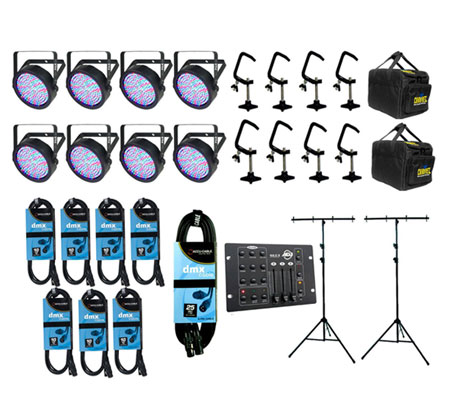

Package Includes

• 8 x Chauvet Slim Par 64 LED PAR
• 2 x Chauvet CHS25
• 8 x Chauvet CLP-03
• 1 x American DJ RGB 3C IR
• 1 x American DJ 25 foot 3 Pin DMX Cable
• 7 x American DJ 10 foot 3 Pin DMX Cable
• 2 x American DJ LTS-6

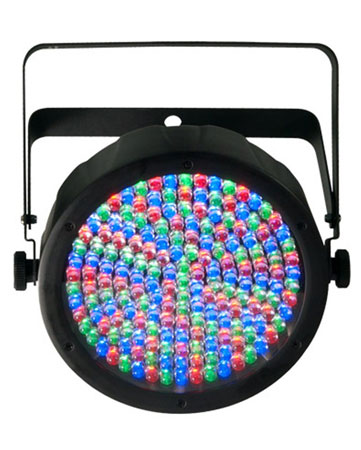

Chauvet Slim Par 64 LED PAR

LED PAR 64 with a slim casing?only 2.5 inches thick?that can go almost anywhere. Boasting 180 red, green and blue LEDs, the fixture offers 3- or 7-channel of DMX control. Or you can use its built-in automated and sound-activated programs and variable speed-pulse effect for use on the fly. It also offers static colors and RGB color mixing with or without DMX and built-in power linking for quick set up and break down.

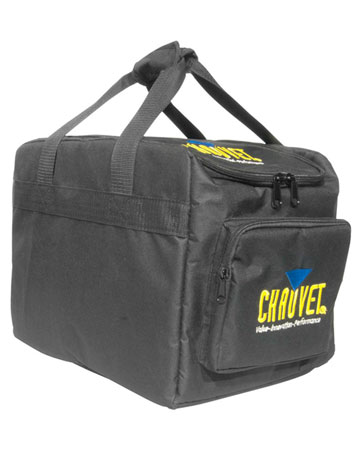

Chauvet CHS25

The CHS-25 VIP Gear Bag is perfect for carrying a small system of the popular SlimPAR 64 and SlimPAR 64 RGBA fixtures along with control and cabling to go along with it. Each bag has padded internal compartments large enough to hold up to 4 SlimPAR 64 fixtures, a small controller and cables to connect the system together. Protect your investment from bumps and scratches with these handsome Chauvet branded gear bags.

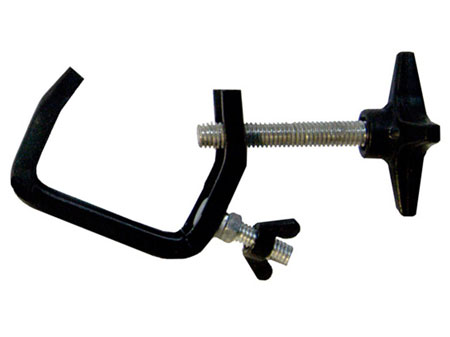

Chauvet CLP-03

Chauvet encourages customers to make safety a priority by utilizing the right clamps and cables for their lighting applications. Made of cast iron or cast aluminum, Chauvet clamps offer a wide range of options in load capacities, mounting and styles.

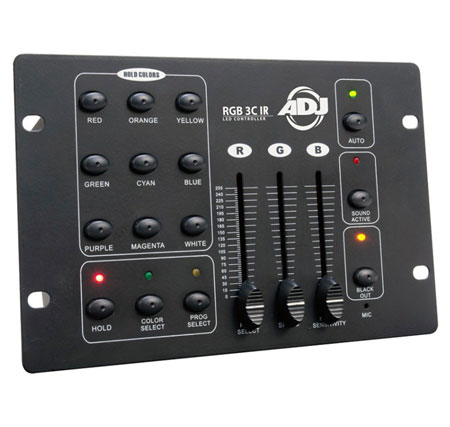

American DJ RGB 3C IR

The RGB 3C IR is a basic 3-channel RGB LED controller. It was designed to control any standard 3 channel RGB fixture where channel 1 is Red, channel 2 is Green and channel 3 is Blue. All LED fixtures must be set to run in DMX mode and be addressed to DMX channel 1. The units control panel includes nine direct access "Static Color" buttons, which contain pre-programmed color presets, 3 manual RGB faders so a desired color could be set on the fly, a Program select button which allows for 7 static colors and 10 chase programs to be accessed via the program select fader, a Sound Active button which activates the 10 chase programs to randomly sequence via an internal microphone, an Auto run button also activates the 10 chase programs to randomly sequence while the speed of the chases can be controlled via the Speed fader. The Hold button will lock all buttons and faders and pause the current scene. The controller will remain locked even when power is switched off and on, and finally a Blackout button to bring all values to zero so there is no output going to your fixtures. It's the ideal control solution for D.J.'s, small night Clubs, and bars that want a simple LED controller to run the show.

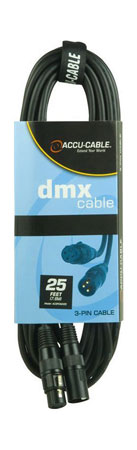

American DJ 25 foot 3 Pin DMX Cable

22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

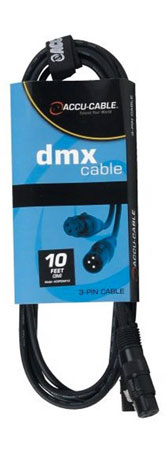

American DJ 10 foot 3 Pin DMX Cable

22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

American DJ LTS-6

The American DJ LTS-6 Aluminum Tripod (9') is a black aluminum stand with a single T-bar for mounting par cans, lighting fixtures, lighting effects and other accessories. It collapses for easy transport, and weighs 11 lbs (5kg). Mounting hardware is included.

Features

Chauvet Slim Par 64 LED PAR

• 3 or 7-channel DMX-512 slim LED PAR can
• Operating modes: 3-channel: RGB control
  7-channel: RGB, macros, run/strobe speed, automatic/sound, dimmer
• Static colors and RGB color mixing with or without DMX controller
• Built-in automated programs via master/slave or DMX with variable speed
• Built-in sound activated programs via master/slave or DMX
• Pulse effect with adjustable speed
• Low-profile lights are 2.5in deep
• Power linking: max 22 units @ 120V (see manual for details)
• Double-bracket yoke doubles as floor stand
• Beam angle: 23°
• Field angle: 38°
• Lux: 3,640 @ 1m
• Light Source: 180 (60 red, 60 green, 60 blue) LEDs
• Power and current: 120V, 60Hz: 17W, 0.3A operating, 0.2A inrush
• AC power: Autoswitching 100V-240V 50/60Hz
• Weight: 2.8lbs (1.3kg)
• Size: 9.7in x 11.1in x 2.5in / 246mm x 282mm x 63mm

Chauvet CHS25

• Affordable, soft bag to transport LED par cans from show to show
• Custom designed to carry up to four CHAUVET® lights, a controller and all connecting cables
• Five internal compartments and two external compartments hold lots of accessories for entertainers on-the-go
• Dividers are removable to accommodate various sized gear
• Designed to fit many different fixtures, including the SlimPAR 64
• Internally padded compartments to help secure and safe guard your investment

Chauvet CLP-03

• Load capacity: 44lbs (20kg)
• Fits: 1in to 2in truss
• Weight: 0.5lbs (0.3kg)
• Size: 6in (152mm)

American DJ RGB 3C IR

• Compact DMX512 controller for RGB LED fixtures
• 3 Manual RGB Faders
• 9 direct access static color buttons
• Program Select Button
• 7 Static Colors in program mode
• 10 Chase Programs
• Manual RGB intensity control mode
• RGB and Auto modes
• On the fly Speed & Fade control of all chase programs
• Sound active Button
• Hold Button to Lock all buttons and Faders and pause current scene
• Strobe Fader
• Blackout button
• ADJ Remote LED RC2 Compatible (sold separately)
• Tech Specs: DMX output connector: 3-pin XLR
• Power In: 9-12V 300mA (Included)
• Power consumption: 3.6 Watts
• Size: 22 x 14 x 6.3cm
• Weight: 0.8kg

American DJ 25 foot 3 Pin DMX Cable

Conductor:

• Number of Pairs: 1
• Total Number of Conductors: 2
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper

Insulation:

• Insulation Material PE Polyethylene

Lay Length:

• Lay Length: 2.5"
• Direction: Left Hand Lay
• Twists: 4.8 per foot

Inner Jacket:

• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Black/White

Outer Shield:

• Outer Shield Trade Name: Duofoil®
• Outer Shield Type: Tape/Braid

Outer Shield Material:

• Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

Outer Jacket:

• Outer Jacket Material: PVC-Polyvinyl Chloride

Overall Nominal Diameter:

• Overall Nominal Diameter: .229"

Mechanical Characteristics:

• Operating Temperature Range: (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight: 31 lbs/1000
• Minimum Bend Radius (Install): 3.2"
• Maximum Recommended Pull Tension: 72 lbs.

Electrical Characteristics:

• Nominal Characteristic Impedence: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 66%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C

American DJ 10 foot 3 Pin DMX Cable

Conductor:

• Number of Pairs: 1
• Total Number of Conductors: 2
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper

Insulation:

• Insulation Material PE Polyethylene

Lay Length:

• Lay Length: 2.5"
• Direction: Left Hand Lay
• Twists: 4.8 per foot

Inner Jacket:

• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Black/White

Outer Shield:

• Outer Shield Trade Name: Duofoil®
• Outer Shield Type: Tape/Braid

Outer Shield Material:

• Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

Outer Jacket:

• Outer Jacket Material: PVC-Polyvinyl Chloride

Overall Nominal Diameter:

• Overall Nominal Diameter: .229"

Mechanical Characteristics:

• Operating Temperature Range: (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight: 31 lbs/1000
• Minimum Bend Radius (Install): 3.2"
• Maximum Recommended Pull Tension: 72 lbs.

Electrical Characteristics:

• Nominal Characteristic Impedence: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 66%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C

American DJ LTS-6

• Extends up to 9ft.
• Stand collapses easily for transport and is ideal for mobile DJs, bands or small stage productions
• LTS-6 comes with T-bar with 8 hanging point bolts
• Includes FS-Adapter - designed to mount one light at a time at the top of the stand
• Weight: 11 lbs.
