Simultaneously:

• Play a combination of digital and analog sources.
• Play up to two digital files controlled by vinyl or CD while recording your mix.
• Or, record two stereo sources when not using vinyl or CD control.
• Cue analog and digital sources.
• Operate standalone as a no-compromise performance mixer.

Applications

• Battle / Live Performance DJ
• Night Club
• Mobile DJ
• Radio / Broadcast DJ
• Mixtape DJ
• Podcasting
• Remix Project Studio / Post Production

Two Input Buses
PGM 1 selects: Analog 1, Analog 2, Digital 1, Digital 2
PGM 2 selects: Analog 3, Analog 4, Digital 1, Digital 2
All analog inputs are phono or line capable
Input Gain and Left/Right Pan controls
3-band, full cut Tone controls with Kill switches
Magnetic faders for Channel Faders and Crossfader
Non-contact magnetic position sensor technology. No travel noise - No bleed - Ever!
Independent Contour and Reverse controls
Microphone Input with Engage switch, Level control and 2-band Tone control
Three sets of Outputs, each with independent Level controls
Main Out on XLR (balanced)
Booth Out on 1/4" TRS (balanced)
Auxiliary Out on RCA (unbalanced)
Assign Program 1, Program 2 or Both to external FlexFx loop
Internal LFO Filter and Echo Effects with six possible insert points
Pre- or Post-channel faders for Program 1 and Program 2
Main Mix
Auxiliary Input Bus
Headphone Cue Monitor includes Cue Pan, Main Mix select and Level
8 Channels of Streaming Audio
16 bit / 44.1 kHz Streaming Audio
Four channels from computer
Stereo source Digital 1 and Digital 2
Four channels to computer
Stereo Record 1 and Record 2
Stereo Recording
Record 1 and Record 2 may record:
Pre- or Post-channel faders for Program 1 or Program 2
Main Mix
Auxiliary Input Bus
Vinyl / CD Control Inputs
Stereo Record 1 may be used for 4-channels of control
Select Analog 1 or Analog 2 for Control Input 1
Select Analog 3 or Analog 4 for Control Input 2
Additional "soft" mixer controls used by Scratch LIVE & internal effects
Foot switch input (Inputs on Tip and Ring; foot switch not included)
Deck 1-2 switch
Group switch
B1 - B6 programmable switches
P1 - P2 programmable Encoders with push switches
J1 - J2 programmable Joysticks with push switches
USB firmware updates
Internal universal switching power supply (100-230 VAC)
Unit size: 13.5"H x 10"W x 4"D (34.3 cm x 25.4 cm x 10.2 cm)
Weight: 12 lb (5.5 kg)

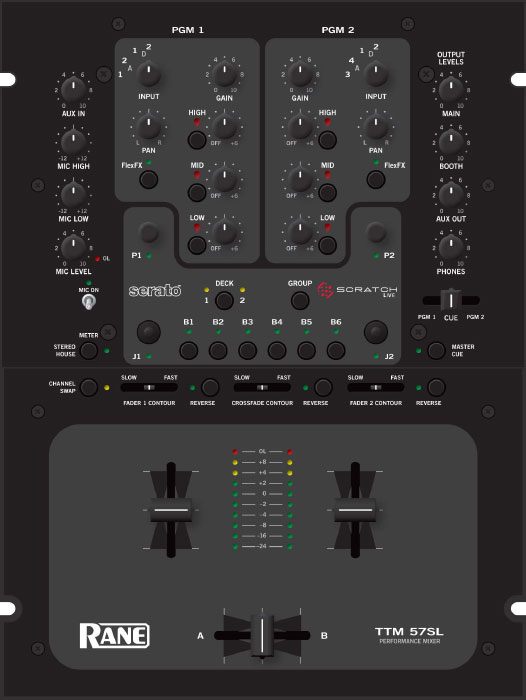

TTM 57SL Configurations Any combination of up to four turntables or CD players, any two of which may be used with control vinyl / CDs!

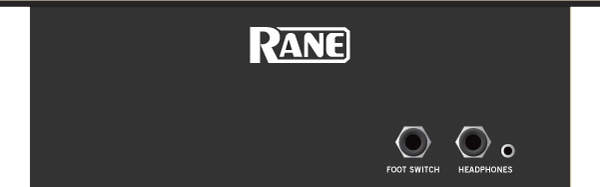

Front

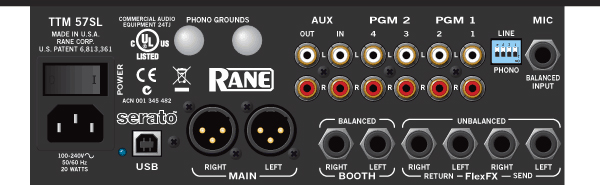

Back
