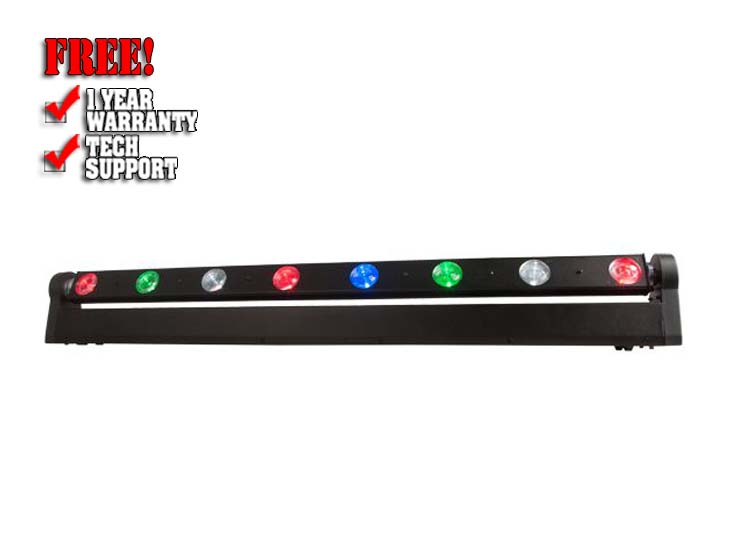

The ADJ Sweeper Beam Quad LED creates exciting lighting effects with it’s quick sweeping beams and it’s 8-Zone RGBW LED chasing, pulsing and strobing LEDs. This unique fixture features 8x 8-Watt bright, Quad LEDs with a narrow 3.4 degrees beam angle, 4 DMX Channel modes and a 4-Channel LED DMX menu.
The Sweeper Beam LED may be controlled via it’s own built-in programs, a DMX Controller or the easy-to-use UC3 Controller. Best when used in multiples, the Sweeper Beam LED is designed for stages, nightclubs and mobile entertainers.
Unique lighting fixture with quick sweeping narrow beams combined with an 8-Zone LED chase
8x 8-Watt RGBW LEDs
4-Button DMX LED Display
3 Operational modes: DMX controller, Master/Slave & Sound Active
4 DMX Channel modes (1, 6, 35 or 39 channels)
Electronic Dimming: 0 - 100%
Includes exciting sound activate built-in programs
LED pulse & strobe effect
270 degree tilt from smooth Stepper Motors
Extremely Long Life (50,000 hr. rated)
Beam angle: 3.4-degrees
Runs extremely cool! - NO Duty Cycles! – Run all night!
Includes mounting brackets to mount on a wall or set on the ground
Safety hook on rear panel
Very low power consumption - connect more units in a single circuit
IEC AC IN/OUT on rear to daisy chain power (up to 4 Sweeper Beam Quad LED’s @ 120V and 7 Sweeper Beam Quad LED’s @ 230V )
Compatible with ADJ UC3 Series easy-to-use controllers (sold Separately)
Power Consumption: 81W maximum
Multi-voltage operation: AC 100-240V 50/60Hz- IEC socket
Dimensions (LxWxH): 38.5”x 3”x 5.25” / 973 x 73 x 132mm
Weight: 14 lbs. / 6.3 kg.
