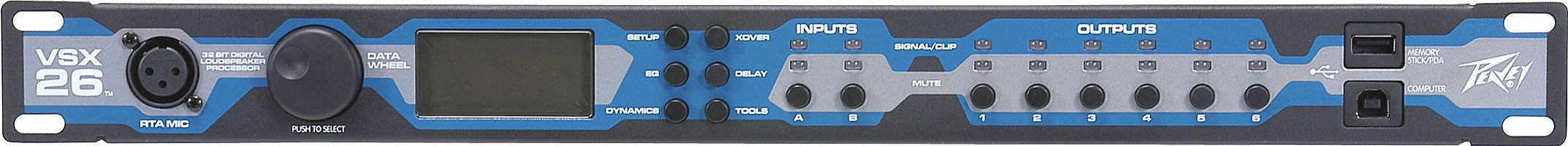

Peavey VSX26

Description:

Take control of every facet of your sound reinforcement with Peavey's new VSX loudspeaker management systems. The VSX 26 and VSX 48 feature exclusive Peavey digital processing technology, high-resolution GUI, upgradeable software and functionality for use in single- or multi-zone applications-an all-in-one solution in a single 1U rack space! Any combination of input to output is user configurable to match your system needs. Symmetrical and asymmetrical crossover configurations are user selectable.

Features:

• 3 inputs/6 outputs
• 48 kHz sample rate, 24-bit 256x over-sampled Delta-Sigma AD, DA
• USB A & B ports for memory storage and computer interface
• XLR inputs and outputs, AES-EBU digital input
• +24 dBu inputs and outputs
• Phantom power +48 volt
• Built-in signal generator (white, pink, sine)
• Computer GUI via USB
• Easy preset and system updates via Internet
• Fully adjustable crossover points
• Easy-to-read LCD screen
• Features per input: 27-band Para-Graphic EQ, Compressor/Limiter, Delay (340 ms)
• Features per output: Crossover/Bandpass filter (Butterworth, Bessel, Linkwitz-Riley), Parametric EQ (5-band, HP, LP Notch, Horn EQ, All-Pass), Compressor/Limiter, Delay with polarity inversion
• 19" W x 1.75" H x 8.5" D
