Eliminatrix R2.91 Video Wall System

Description

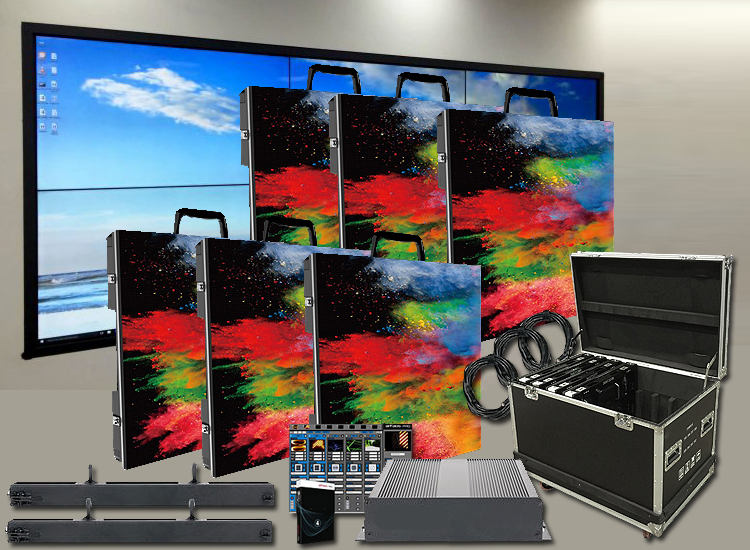

This package includes: 6x R2.91 video panels, 2x video panel hanging bars, 6x data cables, power cable, video processor, video control software, sending box, flight case.

Affordable 6mm LED Video Wall for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship.

Features:

• Pixel Pitch: 2.976
• Configuration: 3in1 (2121)
• Cabinet Pixels: 168*168/dots
• Pixel Density/m²: 112896/dots
• Cabinet Size(mm): 19.68" x 19.68" x 3.22"
• Cabinet Material: Die-cast Aluminum
• Cabinet Weight (kg): 8.4kg
• Color Depth (Bit): 14bit
• Refresh Rate (Hz): =1920
• Driving Mode/scan: 1/21
• Brightness (cd/m2): 1000cd/m²
• Viewing Angle(°) : H/160°; V/160°
• Input voltage(V): AC110v~220v ±10%
• Input Frequency(Hz): 50~60Hz
• Input Max.(W/m²): 600W/m²
• Input Avg.(W/m²): 180W/m²
• Storage/Working Temperature( °C): ?10 - 50 / 0 - 40
• Storage/Working Humidity( RH): 10%~90%
• Protection Grade: IP40/IP40
• Lifespan( hours): 100000

Hanging Bar

Single panel rigging bar or double panels rigging bar with up to 20 panels max vertical hang.

VIDEO PROCESSOR

Features:

• Control Mode: Synchronous Display with Control PC by DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/12 Duty
• Refresh Rate: 1200Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable < 100m or Fiber Optic > 120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet

VIDEO CONTROL SOFTWARE

Features:

• Control video layers with just a few DMX dimmers or MIDI notes
• Work on a single DMX universe or MIDI channel
• Drag & Drop visuals directly on the main interface
• Organize your shows with up to 64 patches of 64 cells
• Control up to 3 parameters per cell via DMX or MIDI
• Optional fade time on trigger
