Optoma X316

Bright projection

• Bright projection – 3200 ANSI lumens
• XGA resolution, 20,000:1 contrast ratio, HDMI input
• Low ownership costs - up to 10,000 hours² lamp life
• Lightweight and portable, carry bag included

Simple to connect to with HDMI connectivity the X316 is ideal for use in a meeting room or classroom. The bright 3200L with 20,000:1 contrast allows you to project bright, crystal clear images with superb colors using DLP®, BrilliantColor™ and Dynamic Eco+ technology.

The X316 also provides you with energy and cost saving features with an incredible lamp life of up to 10,000 hours. It also incorporates a built in speaker, Full 3D technology and optional wireless capabilities allowing you to present wirelessly from a PC or mobile device with ease. Installed or on the move with the included carry bag, the versatile X316 is the perfect projector for all your display needs.

Green Solutions

Eco+ technology from Optoma increases our commitment to reducing the impact we all make on the environment

Dynamic Mode

Saving energy saves money! Dynamic Mode reduces the power consumption to as little as 30%. This intelligent feature can more than double your expected lamp life, lowering the total cost of ownership and reducing maintenance.

Eco AV Mute

Stay in control of your presentation with the Eco AV mute feature. Direct your audience's attention away from the screen by blanking the image when no longer needed. This also instantly reduces the power consumption to 25%, further prolonging the life of your lamp.

Rapid Off

It takes less than 10 seconds for the projector to power up and shutdown, saving both time and energy.

Quick Resume

Save time by not waiting for the projector to cool down before it can power up again. If the projector is accidentally turned off, this feature allows the projector to be instantly powered on again, if selected within a period of 100 seconds.

Full 3D

Using the inherent speed of DLP technology, The Optoma X316. Full 3D projector can display true 3D content form any 3D display device, such as 3D Blu-ray, PS3, Xbox and Sky3D.

Audio Performance

Built-in 2W speaker offers excellent audio support. The X316 is easy to set up without the need for costly external speakers

Brightness Where It Matters

Room lighting can be unpredictable for the business traveller; you never know what to expect. The X316 has a powerful lamp producing 3200 ANSI Lumens, so you can be sure your presentation will be bright and clear.

Cost Saving – Long Lamp Life

Reduce the number of lamp changes with lamp life of up to 10,000 hours² using the Education Cycle.

Clear, Focused Images

Produce a stunning 20,000:1 contrast ratio for pin sharp graphics and crystal clear text using the unique Dynamic mode feature.

Combined with DarkChip3 technology for Texas Instruments, Dynamic mode automatically adjusts the lamp output, based on the brightness information of each frame; to create a stunning high contrast ratio. Bright scenes are crisp and clear, while dark scenes remain detailed with deep blacks which gives exceptional light and shade detail.

Digital Connectivity

Simple and easy – connect using a HDMI cable for a digital audio and video connection to your projector giving you a clear projected image with sound.

Wireless Presenting (optional extra)

Making presentations couldn't be easier using the optional wireless features of the X316. Using the Wireless Adapter you can connect and display presentations and video material wirelessly from a laptop, PC or mobile device.

X316 Specification

• Display Technology Single 0.55" XGA DC3 DMD chip DLP® Technology by Texas Instruments
• Native Resolution XGA 1024 x 768
• Brightness 3200 ANSI Lumens
• Contrast Ratio 20,000:1
• Noise Level (Eco mode) 29dB
• Weight 5.2 lbs (2.35 kg)

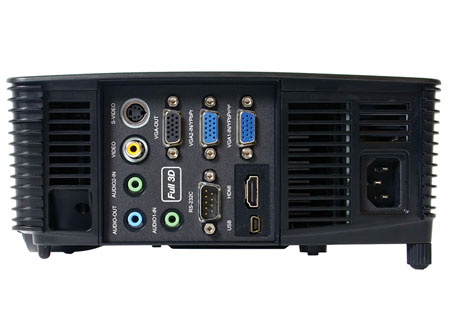

• I/O Connectors HDMI (1.4a 3D support), 2 x VGA (YPbPr/RGB), S-Video, Composite, 2 x Audio In 3.5mm, Audio Out 3.5mm, VGA Out, RS232, USB service
• Maximum Resolution UXGA 1600 x 1200
• Computer Compatibility UXGA, SXGA, XGA, SVGA, VGA, Mac
• Video Compatibility PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J, 3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25,MHz, 4.4MHz, 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz)
• Displayable Colors 1073.4 Million
• Projection Lens F/2.41~2.55; f=21.8~23.98mm, 1.1x Manual Zoom
• Throw Ratio 3 1.95 - 2.15:1
• Projection Screen Size 0.70 - 7.62m (22.9" - 300") Diagonal 4:3
• Projection Distance 1.2 - 12m
• Zoom Type 1.1x Manual
• Aspect Ratio 4:3 Native, 16:9 Compatible
• Offset 115%
• Horizontal Scan Rate 15.3 - 91.1kHz
• Vertical Scan Rate 24 - 85Hz
• Lamp Type 190W
• Lamp Life2 Bright 5000 (hrs)
• Keystone Correction ± 40° Vertical
• Dimensions (W x H x D) 12.4" X 8.8" X 4"

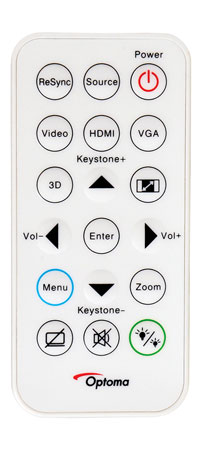

• Remote Control IR remote control
• Power Supply 100-240V, 50-60Hz
• Power Consumption 225W Bright mode / 191W Eco mode (<0.5W Standby)
• Operating Conditions 5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m
• Uniformity 80%
• Security Security bar, Kensington lock, password protection
• Standard Accessories Carry bag, AC power cord, VGA cable, remote control, battery, quick start card, CD user manual
• Optional Accessories DLP® Link™ 3D glasses, wireless, ceiling mount
• RoHS Compliant
• 3D Support Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.
• 3D Compatibility Side-by-Side:1080i50 / 60, 720p50 / 60
• Frame-pack: 1080p24, 720p50 / 60
• Over-Under: 1080p24, 720p50 / 60
• Speaker (Watts) 2
• On Screen Display 19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish, Greek, Norwegian/Danish, Hungarian, Czech, Turkish, Romanian, Farsi and Arabic.
• Optional Wireless Yes
• Warranty 1-Year Limited Parts and Labor, 90-Days on Lamp
• Projection method Front, rear, ceiling mount, table top
