CURRENTLY OUT OF STOCK

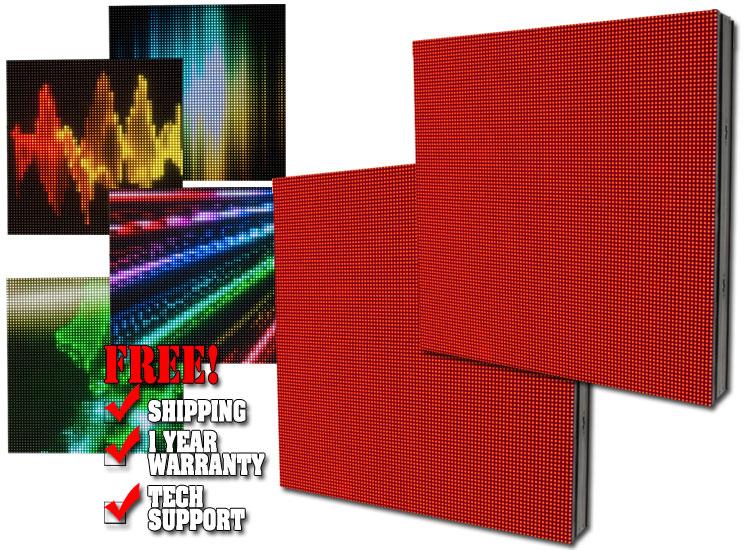

VIDEO PANEL SYSTEM FEATURING TWO CHAUVET PVP S7 VIDEO PANELS AND ONE ROADCASE

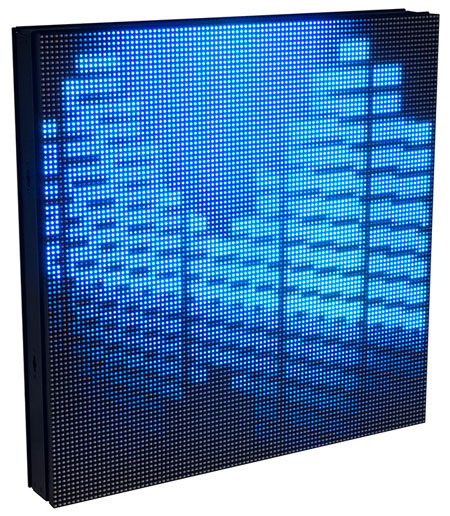

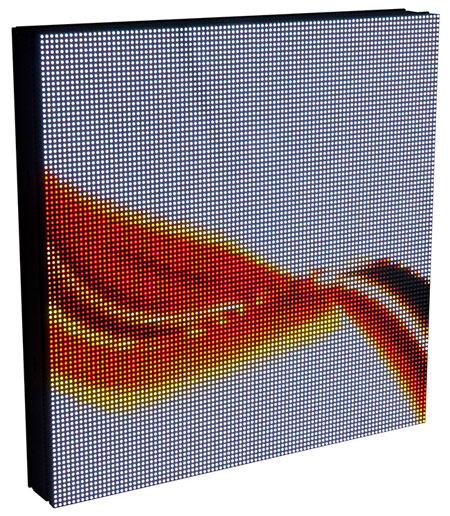

PVP™ S7 is a solid, high definition video panel with black face SMD LEDs and a tight pixel pitch of 7.8 millimeters—ideal for high-resolution graphics and live-action video. Thanks to a high contrast ratio, it achieves equally crisp images in short- and long-viewing applications. As with all PVP™ panels, it is designed for quick setup and teardown. Integrated handles allow a single person to rig each panel, and auto-aligning housings further help speed installation while ensuring consistency of the pixel pitch from interlocked panel to interlocked panel.

• 7.8 mm pixel pitch video panel system featuring superb contrast through the use of blackface SMD LEDs
• Tight binning of LEDs ensures consistent color rendering across panels
• Lightweight and modular system for high-resolution graphics and video
• Easy installation and connectivity using Neutrik® powerCON® and etherCON® connectors
• Solid construction makes these a perfect product for long term installation
• Interlocking with the PVP™ S5 panels to create large wall designs
• Tri-color SMD 3528 LEDs provide better image quality
• Tight pixel pitch allows for equally effective close range and long range viewing
• Designed for touring and permanent indoor installation
• Works with VIP™ Driver and VIP™ Signal Distributor products
• Use with PVP™ Rig Kit and integrated, interlocking hardware for fast and easy setup
• Control Protocol: LINSN
• Data Connectors: Neutrik® etherCON®
• Light Source: 4,096 LEDs (tri-color RGB) SMD 3528, 50,000 hours life expectancy
• Color Wavelength: red (620 to 625 nm), green (520 to 525 nm), blue (465 to 470 nm)
• Pixels: 64 x 64
• Pixel Pitch: 7.8 mm
• Pixel Density: 16,384 /m2
• Viewing Angle: 140°
• Display Refresh Rate: 1,200 Hz
• Transparency: 0%
• Illuminance: 1,500 NITS
• IP Rating: IP40, indoor use
• Cable Length (signal extension): 2.46 ft (0.75 m)
• Cable Length (power): 6 ft (1.83 m)
• Cable Length (power extension): 2.46 ft (0.75 m)
• Power Connection: Edison plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Power Linking: 16 units @ 120 V; 27 units @ 208 V; 28 units @ 230 V
• Maximum Panels/VIP™ Driver: 300
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 102 W, 0.85 A @ 120 V, 60 Hz
• Power and Current: 105 W, 0.50 A @ 208 V, 50 Hz
• Power and Current: 106 W, 0.47 A @ 230 V, 50 Hz
• Weight: 15.8 lb (7.17 kg)
• Dimensions: 19.7 x 19.7 x 2.5 in (500 x 500 x 63 mm)
• Housing Material: Aluminum alloy
• Compatible Mounting Options: PVP™ Rig Kit (truss mounting), or M10 Bolt/Clamp (rear mounting)
• Accessories (required): VIP™ Driver
• Accessories (optional): VIP™ Signal Distributor
• Accessories (optional): VIP™ Media Server
• Accessories (optional): VIP™ 112/5162 Signal Processors
• Approvals: CE
• PDF Manual
