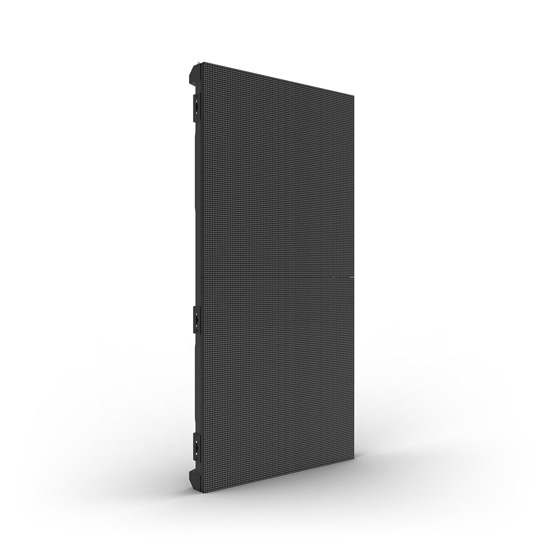

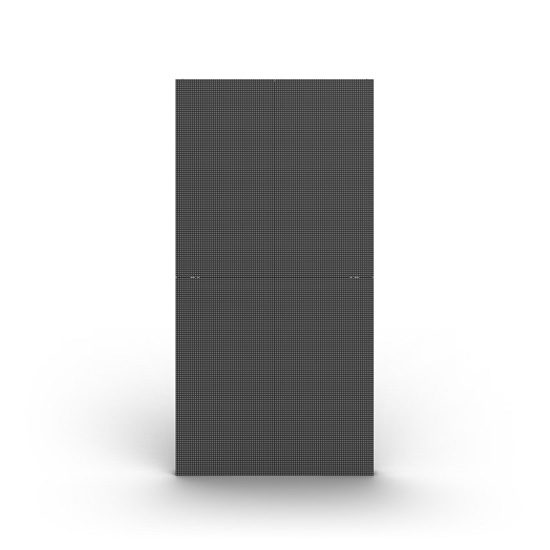

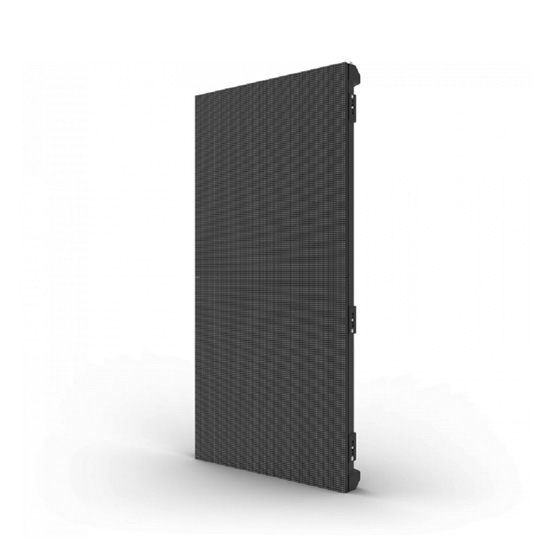

CHAUVET PROFESSIONAL F5IP-5.9 MM Pixel Outdoor Rated LED Video Panel (4 Pack)

Features:

• 5.9 mm pitch high-resolution outdoor video panel works with the VIP Drive 43Nova, using the Novastar control protocol
• High-quality black body LEDs accurately reproduce video at 14-bit grayscale, operating on the A5s receiver card from Novastar
• High-performance digital LED drivers deliver a 1920 Hz refresh rate and a clear, vibrant image
• Intelligent, high speed magnetic LED modules with dedicated memory stores factory calibration, ensuring optimal image quality, color uniformity, and simplifies maintenance by making service fast and easy
• Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance
• 1,000 x 500 x 82.5 mm, 30 lb (13.6 kg) magnesium die-cast housing (500 x 500 mm available) makes this product among the lightest and slimmest in its class without compromising strength, capable of hanging up to 23 panels vertically safely

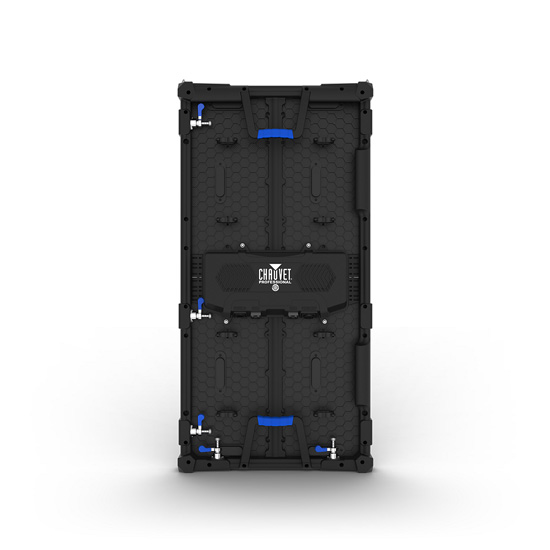

• Specialized frame design allows for overhead hanging, ground stacking, and wall mounting maximizing installation flexibility and aftermarket front and rear service; simply push out modules from the rear using the handles, or use the included service tool from the front
• Front LED surface protective design features prevent damage when handling: 4x stainless steel standing feet to keep the LEDs from touching the floor, specialized LED board design to improve impact resistance up to 3x that of other panels, and resilient led mask design to optimize image viewing angle and uniformity without exposing the LEDs to the front or side impacts
• Strong, magnetic assisted hanging makes setting up the panels fast and easy with a minimal crew
• Optimized heat dissipation ensures an even color across the F5IP
• Dual power supplies increase the stability of the system
• Cable management solutions include angled connectors on panels for easy operation, long cables which can connector horizontally or vertically, and handles on the bottoms of each panel to organize cables and keep them neat
• Rig bars, ground support system, and concave curving hardware available upon request

Optical:

• Light Source: 14,112 LEDs (tri-color RGB) SMD 1921, 50,000 hours life expectancy
• Color Wavelength: red (615 to 630 nm), green (515 to 535 nm), blue (460 to 475 nm)
• Viewing Angle (H/V): 160°/155°
• Calibrated Illuminance: 5,000 NITS
• Maximum Illuminance: 6,000 NITS
• Contrast Ratio: 12,000:1
• Grayscale: 14-bit
• Receiver Card: A5s
• Drive Type: 1/7
• Pixels: 84 x 168
• Pixel Pitch: 5.9 mm
• Minimum Viewing Distance: 20 ft (6 m)
• Pixel Density: 28,224/m²
• Display Refresh Rate: 1,920 Hz (S-PWM)

Construction/Physical:

• Dimensions: 19.69 x 3.25 x 39.37 in (500 x 82.5 x 1000 mm)
• Weight: 30 lb (13.6 kg)
• Threaded Bolt: M12
• Exterior Color: Black
• Housing Material: Magnesium die-cast
• Maximum vertical hang: 23 panels
• Maximum horizontal hang: 17 panels
• Transparency: 0%

Connections:

• Power
  • Connection: Seetronic etherKON®
  • Input: Seetronic Powerkon IP65
  • Output: Seetronic Powerkon IP65
• Data Connectors: Seetronic® etherKON®
• Cable Length
  • (signal extension): 4 ft (1.2 m)
  • (power): 6 ft (1.8 m)
  • (power extension): 4 ft (1.2 m)

Control:

• Control Protocol: Novastar
• Maximum Panels/VIP Drive
  • 43Nova 2: 46/port, 132/Drive (4 ports) (may load up to 184 panels/drive if overlapping video content)
  • 83R Nova: 46/port, 270/Drive (8 ports) (may load up to 368 panels/drive if overlapping video content)
• Maximum Panels Wide/VIP Drive
  • 43 Nova 2: 22 @ 1920 wide resolution
  • 83R Nova: 45 @ 3840 wide resolution
• Maximum Strips Tall/ VIP Drive
  • 43 Nova 2: 6 @ 60Hz
  • 83R Nova: 6 @ 60Hz

Electrical:

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Linking: 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
• Power and Current:
  • 339 W, 2.82 A @ 120 V, 60 Hz
  • 329 W, 1.58 A @ 208 V, 60 Hz
  • 345 W, 1.50 A @ 230 V, 50 Hz
• Power and Current (resting):
  • 20 W, .214 A @ 120 V, 60 Hz
  • 18 W, .217 A @ 208 V, 60 Hz
  • 18 W, .196 A @ 230 V, 50 Hz

Certifications / Qualifications:

• CE, MET, FCC
• IP Rating: IP65, temporary outdoor/wet use
• Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)
• MET Listing Number: E113093-1110, E113093-1125
• US Safety: UL 60950-1
• Canadian Safety: CSA C22.2 No. 60950-1

Specifications:

• Weight : 150 lbs
• Dimensions : 80 X 12 X 120 in

This Package Includes:

• (4) CHAUVET PROFESSIONAL F5IP
• Flight case
• (4) powerCON Linking Cables (2.46ft)
• (4) etherCON Linking Cables (2.46ft)
