ADJ AV4X2 Video Wall Package

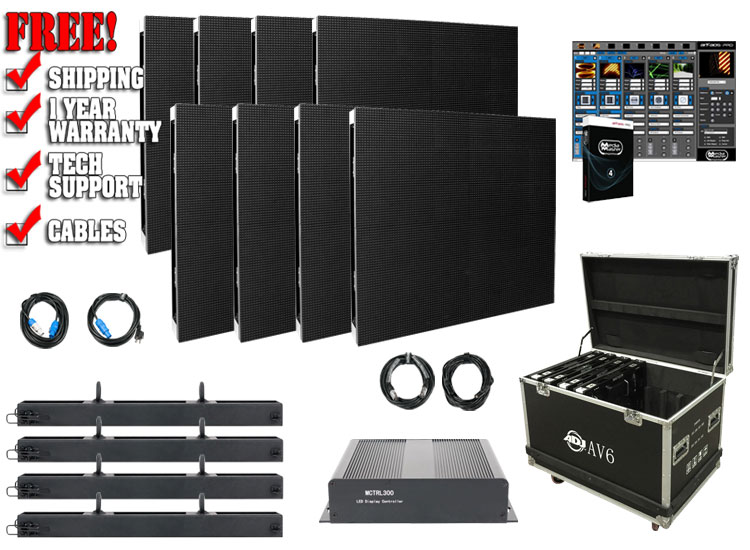

This package includes: 8x AV6, 4x AV6 Rigging Bars, 7x CAT303, 6x PLC3, 1x CAT461, 2x MPC015, 1x MCT RL300, 1x AV6 Flight Case,
1x Media Master Express
Affordable 6mm LED Video Wall for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship.
Features:
- Pixel Pitch: 6.0mm (0.25")
- LED Configuration: 3-in-1 SMD2121 LED
- Pixel Density: 96x96; 27,777 per square meter
- Surface Flatness: Gaps < 0.5mm
- Brightness: 1200 NITS
- View Angle: Horizontal 140°/Vertical 140°
- IP20 (Front and Back) Rating
- Listings: CE, FCC Class A, RoHS, China RoHS
AV6-Bar
Single panel rigging bar for AV6 with up to 20 panels max vertical hang.
AV6 MCT-RL300
Features:
- Control Mode: Synchronous Display with Control PC by DVI
- Frame Update Frequency: 50-60Hz
- Scan Mode: 1/12 Duty
- Refresh Rate: 1200Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Control Distance: Ethernet Cable < 100m or Fiber Optic > 120m
- Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
- Brightness Correction: Pixel, Module, Cabinet
Media Master Express Panel Software
Features:
- Control video layers with just a few DMX dimmers or MIDI notes
- Work on a single DMX universe or MIDI channel
- Drag & Drop visuals directly on the main interface
- Organize your shows with up to 64 patches of 64 cells
- Control up to 3 parameters per cell via DMX or MIDI
- Optional fade time on trigger






|
