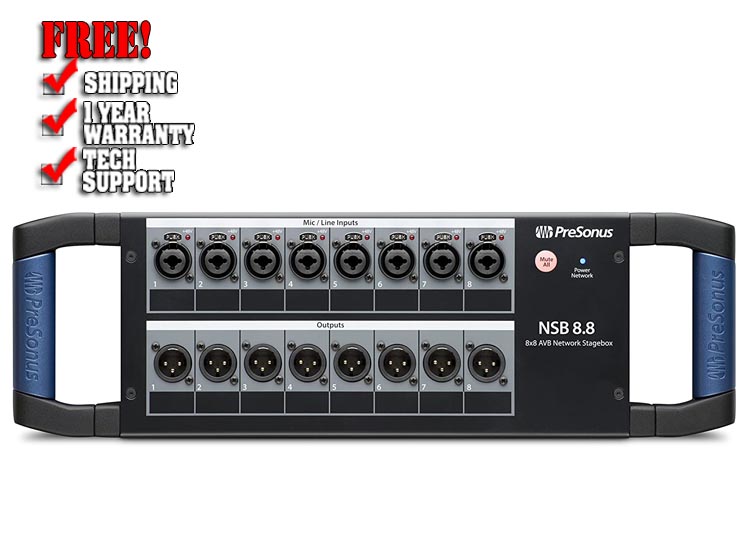

PreSonus NSB 8.8 8x8 AVB-Networked Stage Box

Designed to work seamlessly with PreSonus StudioLive Series III mixers, the PreSonus NSB 8.8 stage box offers 8 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios, as well as 16 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software.

All eight outputs employ locking XLR jacks, while the built-in 2-port AVB switch lets you daisy-chain multiple units. The rugged steel chassis with sturdy handles is designed with a stage box form factor and allows the NSB 8.8 to sit well on the stage and survive the rigors of on-the-road wear and tear. The unit can be rackmounted with an optional rack-ear kit.

Features:

• Rugged stage box enclosure
• 8 locking, remote controllable combo mic/line inputs
• 8 remote-controllable XMAX preamps
• Gain compensation for shared inputs
• 8 locking XLR line outputs

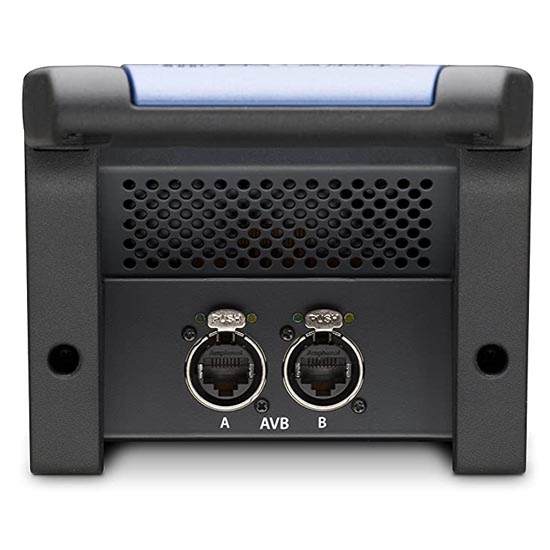

• 2 AVB ports with locking XLR Ethernet jacks
• 16 x 8 AVB (8 direct input channels + 8 gain-compensated input channels)
• Mute All button

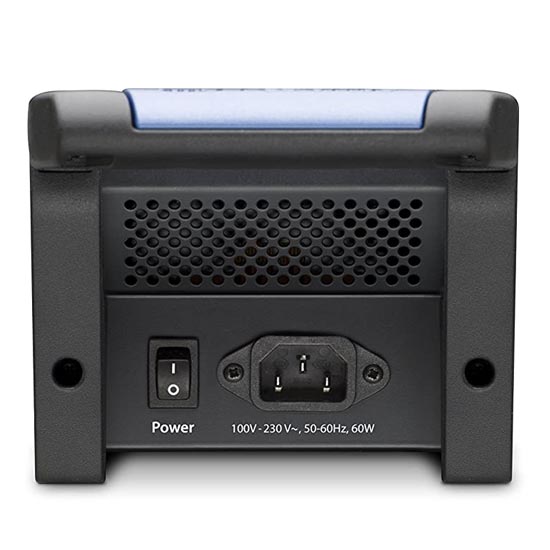

• Locking IEC power jack
• 48V indicators
• Easy setup and control from StudioLive Series III consoles and free PreSonus UC Surface software

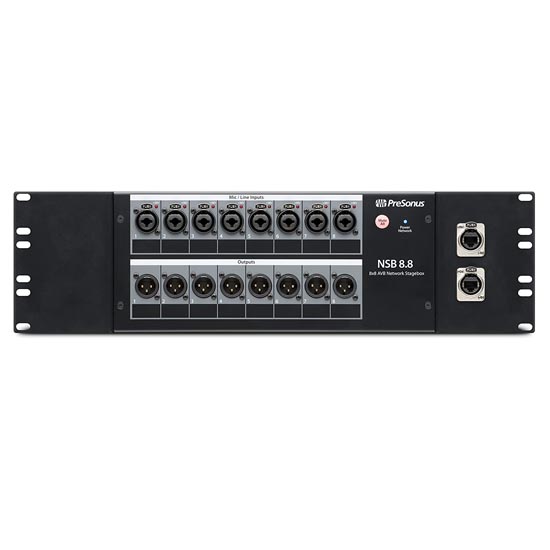

• Optional rack ears (available separately)

Specifications

• Type: Digital Stage Box
• Compatibility: Presonus StudioLive Series III (AVB network)
• Channels: 8 x 8
• Inputs - Mic Preamps: 8 x XLR-1/4" combo (mic/line)
• Phantom Power: Yes
• Outputs - Main: 8 x XLR
• Data I/O: 2 x EtherCon (AVB network)
• Software: Presonus UC Surface control software
• OS Requirements - Mac: Mac, iPad
• OS Requirements - PC: Windows, Android
• Power Source: Locking IEC AC jack
• Height: 5.2"
• Depth: 4.5"
• Width: 16.7"
• Weight: 5.4 lbs.
