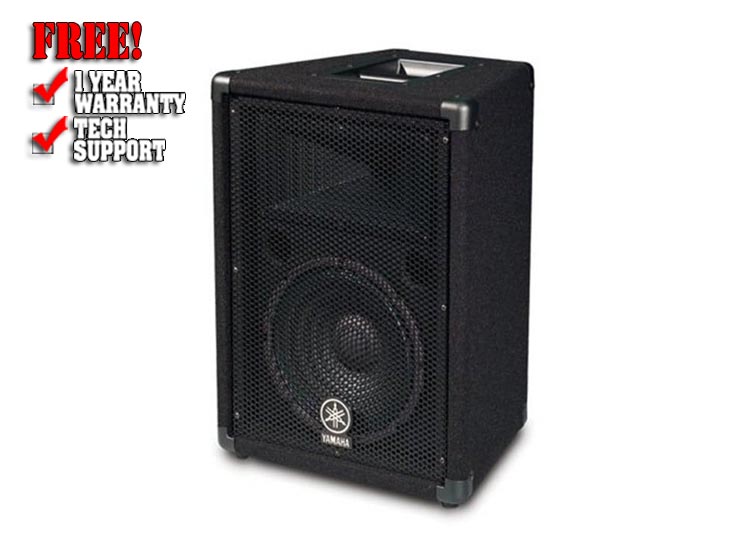

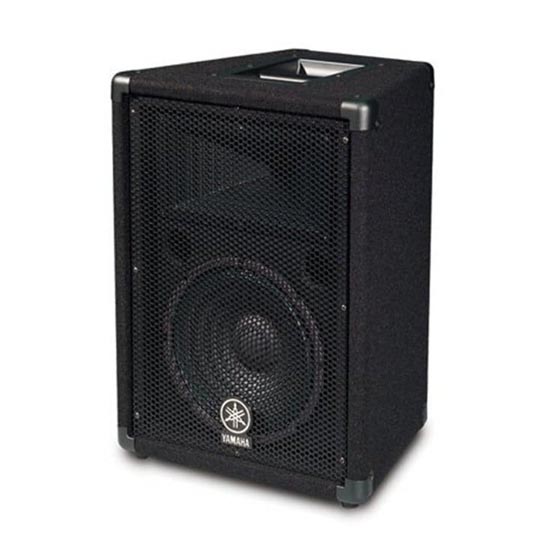

Yamaha BR10 10-inch 2-Way 400W Passive PA Speaker

Description:

Superior Audio Quality with Titanium HF Drivers

The BR series speakers were developed and are produced in the USA to carry on the proven audio quality and reliability of Yamaha's acclaimed Concert Club series. Using parts and components carefully selected for audio quality and reliability, Yamaha has optimized critical design parameters to achieve astounding sound at a very affordable price. In particular, the excellent low-frequency response produced by the bass-reflex system and the broad 90° x 40° high-frequency coverage provided by the titanium-dome horn tweeter are the result of painstaking tuning that achieves an outstanding balance between portability and size.

Ideal for EMX Series Powered Mixers and P Series Power Amps

The BR series speakers provide dual phone jacks for input and parallel connection. You can set up a simple but high-performance PA system just by connecting a pair of these speakers to an EMX series powered mixer. Or you could use BR series speakers in conjunction with P series power amplifiers and an MG series mixing console to create a range of very versatile live sound systems. The YSP (Yamaha Speaker Processing) switch provided on EMX series mixers and P series amplifiers can be used to achieve optimum matching for significantly enhanced sound.

Simple but Sophisticated Design

The BR series carries on the simple yet sophisticated design of the Concert Club series. The front grille has been enhanced in terms of both design and durability. In addition to a carpeted finish, the tough exterior features steel corner protectors and heavy duty metal handles for improved portability. The BR series was designed for the rigors of daily use in a portable sound reinforcement system.

Yamaha BR10 10-inch 2-Way 400W Passive PA Speaker Specifications:

• Powered: No
• LF Driver Size: 1 x 10" Cone
• HF Driver Size: 1" Titanium
• Impedance: 8 ohms
• Power Rating: 250W Program
• Total Power: 500W
• Inputs: 2 x 1/4"
• Frequency Range: 65Hz-20kHz (-10 dB)
• Horizontal Coverage Angle: 90°
• Maximum Peak SPL: 96 dB SPL @ 1m
• Vertical Coverage Angle: 40°
• Enclosure Material: Carpeted Enclosure with Steel corners
• Mounting Options: Pole, Floor Wedge
• Height: 21.1"
• Width: 15.5"
• Depth: 12.8"
• Weight: 31.7 lbs.

Most Popular Accessories & Related Items

<

Yamaha BR12

$314.99

Yamaha BR15

$354.99

Yamaha BR12M

$324.99

Yamaha BR15M

$364.99

>

Frequently Asked Questions (FAQ)

What is the Yamaha BR10 used for?

The Yamaha BR10 is a passive PA speaker used for live sound applications such as DJ setups, small concerts, churches, schools, and stage performances.

Is the Yamaha BR10 active or passive?

The BR10 is a passive speaker, meaning it requires an external power amplifier to operate.

What is the power rating of Yamaha BR10?

It delivers 400W program power handling, making it suitable for small to medium live sound setups.

What size is the woofer in Yamaha BR10?

The speaker features a 10-inch woofer with a high-frequency driver for balanced sound output.

Is Yamaha BR10 good for DJs and events?

Yes, the BR10 is popular among DJs and event setups due to its clear vocals, strong midrange, and reliable performance.

Does Yamaha BR10 produce good bass?

It offers tight and controlled bass for its size, especially when paired with a subwoofer.

What amplifier should I use with Yamaha BR10?

A professional power amplifier delivering around 300W–500W per channel at 8 ohms is recommended for best performance.
