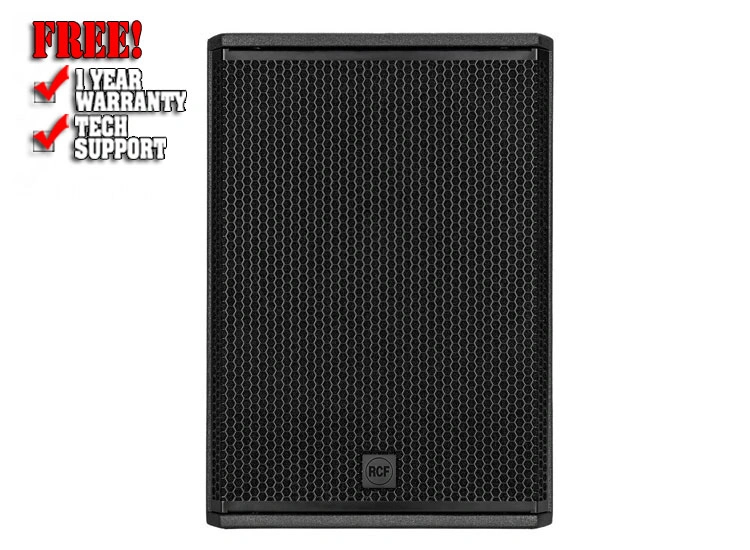

RCF SUB 705-AS MK3 15-inch 1400W Active Subwoofer

Description

▶

▶

Power That Moves

RCF's improvements in transducer design make them stronger and more powerful so the amplifier follows the evolution. With 1400W peak power, the Class-D amplifier manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. The speaker design is energy-efficient so there's no need for a cooling fan. The amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet with no moving parts. The stereo input circuit with crossover features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

SUB 7 Series subwoofers can be configured from the rear panel, and features a full set of commands:

• X-OVER PRESET 80Hz/120Hz
• POLARITY REVERSE
• OUT SIGNAL, LINE / HIGH PASS

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

Tour-Ready Workhorse

The subwoofer is suitable for a wide range of live sound applications. The rugged all-plywood cabinet is easy to carry and stack, due to its light-weight. All are equipped with ergonomic handles with rubber grips for easy set-up and tear down. The M20 threaded pole mount on the top allows the cabinet to support speakers with a pole mount. The heavy-duty polyurea coating, the powder-coated metal grille, and the rugged structure of the cabinet withstand long-term use and transportation. Separate housing for the amplifier guarantees component efficiency and reliability. An acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity. With its frontal vented ports, the subwoofer can also be used in recessed spaces.

RCF SUB 705-AS MK3 15-inch 1400W Active Subwoofer Specifications:

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 40 Hz ÷ 120 Hz Max SPL @ 1m: 131 dB

TRANSDUCERS

• Woofer: 15'', 3.0'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Hi-Pass Frequencies: 110 Hz
• Low-Pass Frequencies: 80 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, EQ, Phase, Xover

POWER SECTION

• Total Power: 1400 W Peak, 700 W RMS
• Low frequencies: 1400 W Peak, 700 W RMS
• Cooling: Convection
• Connections: VDE

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Handles: One each side
• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 598 mm / 23.54 inches
• Width: 420 mm / 16.54 inches
• Depth: 590 mm / 23.23 inches
• Weight: 27.5 kg / 60.63 lbs

SHIPPING INFORMATION

• Package Height: 648 mm / 25.51 inches
• Package Width: 638 mm / 25.12 inches
• Package Depth: 478 mm / 18.82 inches
• Package Weight: 32.4 kg / 71.43 lbs

Most Popular Accessories & Related Items

<

RCF SUB 702-AS MK3

$999.99

RCF SUB 708-AS MK3

$1389.99

RCF SUB 905-AS MK3

$1899.99

RCF ART 910-AX

$899.99

RCF ART 710-A MK5

$549.99

>

Frequently Asked Questions (FAQ)

What is the power output of the RCF SUB 705-AS MK3?

The RCF SUB 705-AS MK3 delivers 1400W peak power for deep, powerful bass performance.

Is the RCF SUB 705-AS MK3 good for DJs?

Yes, this active subwoofer is ideal for DJs, live events, clubs, and professional sound systems.

Does the RCF SUB 705-AS MK3 have a built-in amplifier?

Yes, it features a built-in Class-D amplifier for reliable and efficient audio performance.

What size woofer does the RCF SUB 705-AS MK3 use?

The subwoofer includes a high-performance 15-inch woofer for deep bass response.

Is the RCF SUB 705-AS MK3 portable?

Yes, its compact design and built-in handles make it easy to transport.

Can I connect the RCF SUB 705-AS MK3 to powered speakers?

Yes, it works well with powered PA speakers and professional audio systems.
