RCF HDL 30-A

ACTIVE TWO-WAY LINE ARRAY MODULE

• 2200W Two Way Amplifier
• 137 dB Max SPL
• Exclusive FiRPHASE technology on-board
• RDNet Control and Management

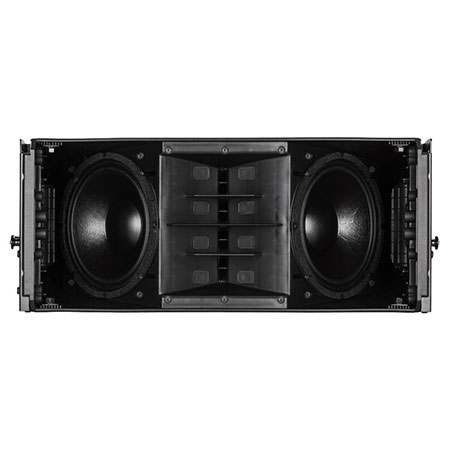

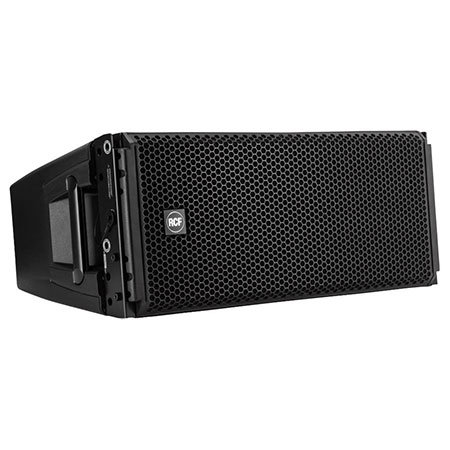

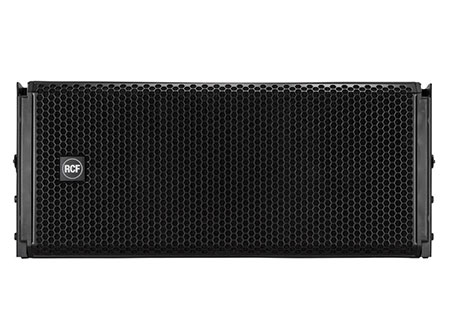

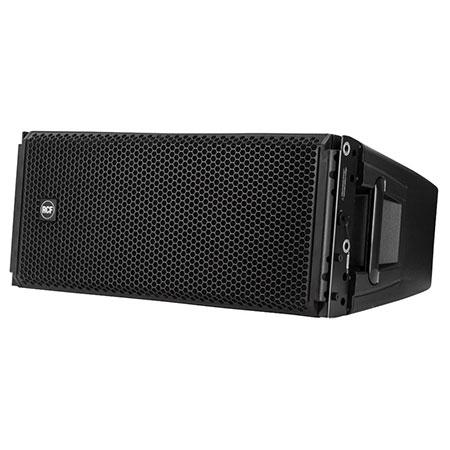

The RCF HDL 30-A is a powerful, compact, bi-amped 2-way active line-array system engineered for medium to large-scale events, both indoors and outdoors. Designed to deliver outstanding performance, it is equipped with two high-output 10-inch woofers and a precision 4-inch titanium compression driver for exceptional clarity and projection.

Its advanced time-coherent waveguide is the result of extensive acoustic research, ensuring consistent coverage and superior vocal intelligibility. The HDL 30-A is the first line-array system housed in a composite cabinet, featuring zero-degree phase response and an ultra-linear amplitude profile for accurate sound reproduction across the listening area.

Powered by an integrated 2200-watt Class-D amplifier, the system delivers pristine audio performance with a maximum sound pressure level of up to 137 dB SPL. State-of-the-art RCF transducers with neodymium magnets provide high efficiency while keeping the enclosure remarkably lightweight, making setup, transport, and flying fast and effortless.

For extended low-frequency performance, the HDL 38-AS is the ideal flyable subwoofer companion, perfectly matched to complement the HDL 30-A array system in professional touring and installation applications.

RCF HDL 30-A Features

• 2200W Two Way Amplifier
• 137 dB Max SPL
• 48 kHz, 32 bit DSP processing
• 1.4" Titanium Compression Driver, 4.0" voice coil
• 2 x 10" Neodymium Woofers, 2.5" voice coil
• Exclusive FiRPHASE technology on-board
• RDNet Control and Management
• 680 Hz Crossover Point

RCF HDL 30-A Specification

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 50 Hz - 20000 Hz
• Max SPL @ 1m: 137 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 15°

TRANSDUCERS

• Compression Driver: 1 x 1.4'' neo, 4.0'' v.c
• Woofer:2 x 10'' neo, 2.5'' v.c

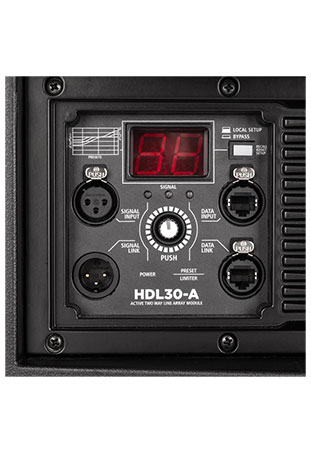

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: +4 dBu

PROCESSOR SECTION

• Crossover Frequencies: 680 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Preset, RDNet bypass
• RDNet: Onboard

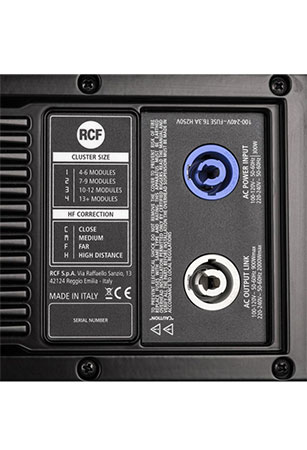

POWER SECTION

• Total Power: 2200 W Peak, 1100 W RMS
• High frequencies: 600 W Peak, 300 W RMS
• Low frequencies: 1600 W Peak, 800 W RMS
• Cooling: Forced
• Connections: Powercon IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

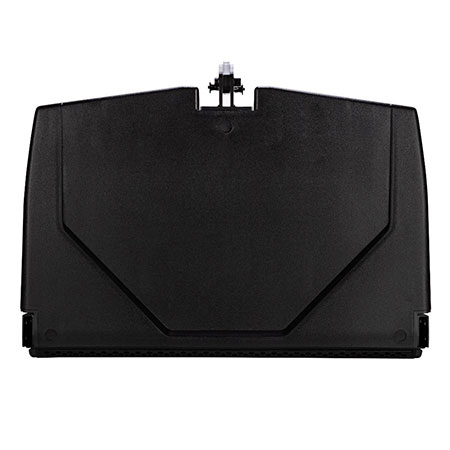

• Cabinet/Case Material: PP Composite
• Hardware: Array fittings
• Handles: 2 Side
• Grille: Steel
• Color: Black

SIZE / WEIGHT

• Height: 293 mm / 11.54 inches
• Width: 705 mm / 27.76 inches
• Depth: 502 mm / 19.76 inches
• Weight: 25 kg / 55.12 lbs

SHIPPING INFORMATION

• Package Height: 365 mm / 14.37 inches
• Package Width: 800 mm / 31.5 inches
• Package Depth: 550 mm / 21.65 inches
• Package Weight: 28.2 kg / 62.17 lbs

  What is the RCF HDL 30-A?
A: The RCF HDL 30-A is a compact, bi-amped, 2-way active line-array loudspeaker designed for medium to large-scale events, suitable for both indoor and outdoor applications.

  What type of events is the HDL 30-A best suited for?
A: It is ideal for concerts, live performances, festivals, corporate events, houses of worship, and professional touring or rental applications where high output and clarity are required.

  What drivers are used in the HDL 30-A?
A: The system features dual 10-inch woofers for powerful low-mid response and a high-performance 4-inch titanium compression driver for clear, detailed high frequencies.

  How powerful is the built-in amplifier?
A: The HDL 30-A is powered by an integrated 2200-watt Class-D amplifier, delivering clean, efficient power with a maximum SPL of up to 137 dB.

  What is the advantage of the time-coherent waveguide?
A: The time-coherent waveguide ensures phase-aligned sound dispersion, resulting in consistent coverage, improved vocal intelligibility, and a smooth frequency response across the audience area.

  What makes the cabinet design unique?
A: The HDL 30-A is the first line-array system built with a composite enclosure that provides zero-degree phase response and an ultra-linear amplitude response while remaining lightweight and durable.

  Are neodymium drivers used in this system?
A: Yes, the HDL 30-A uses premium RCF transducers with neodymium magnets, offering high efficiency, reduced weight, and superior performance.

  Is the HDL 30-A easy to transport and fly?
A: Despite its high acoustic output, the system is remarkably lightweight, making it easy to handle, transport, and fly in array configurations.
