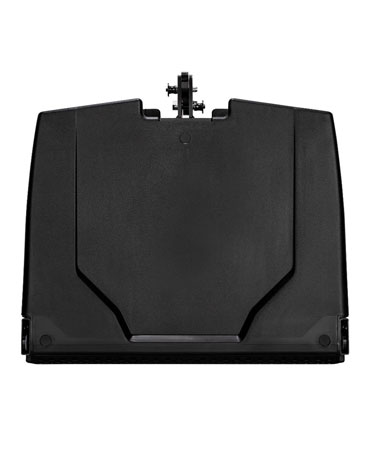

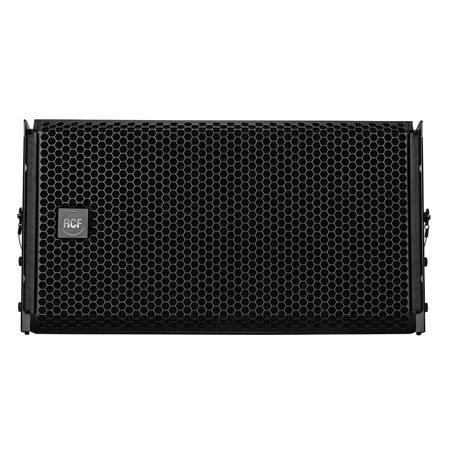

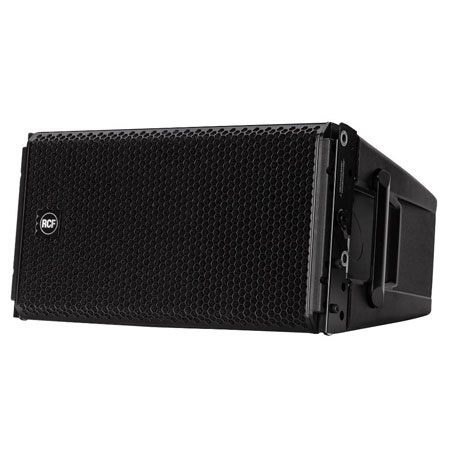

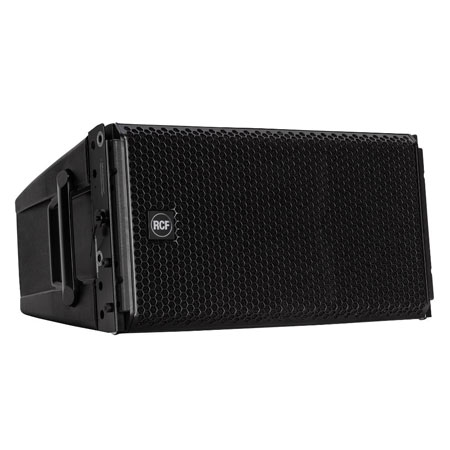

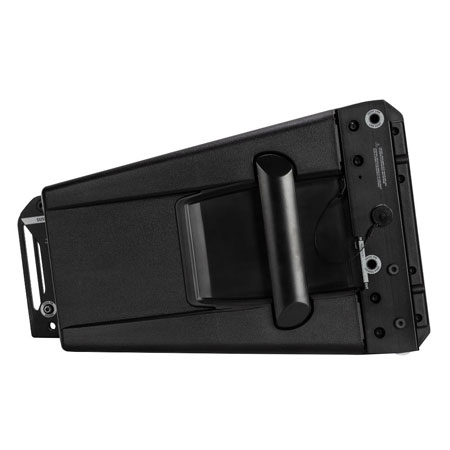

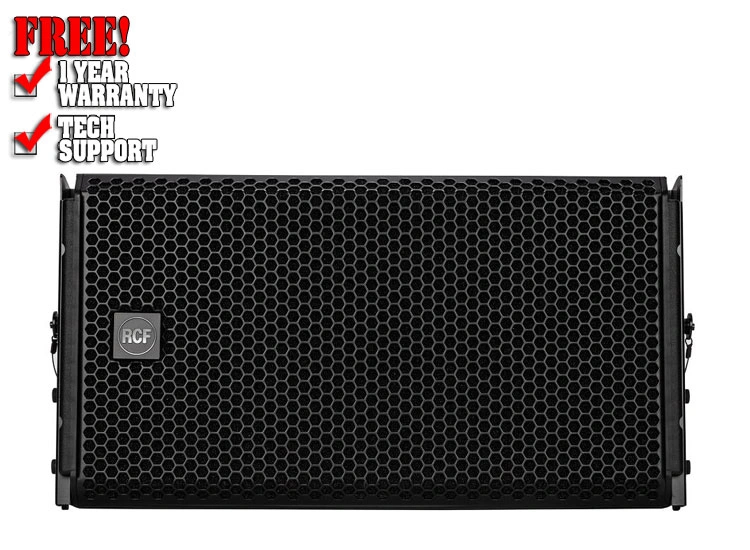

RCF HDL 28-A

ACTIVE TWO-WAY LINE ARRAY MODULE

• 2200W Two Way Amplifier
• 135 dB Max SPL
• 48 kHz, 32 bit DSP processing
• RDNet Networked Management

The RCF HDL 28-A is a compact, bi-amped, 2-way active touring line-array system engineered for a wide range of indoor and outdoor applications, with a strong focus on outstanding vocal intelligibility. Designed to deliver powerful, precise sound in a lightweight form factor, it is ideal for touring professionals, live events, and fixed installations.

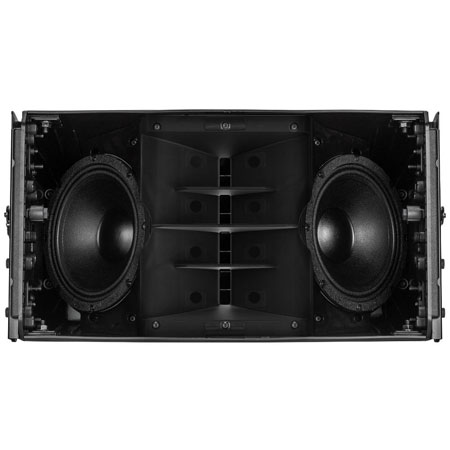

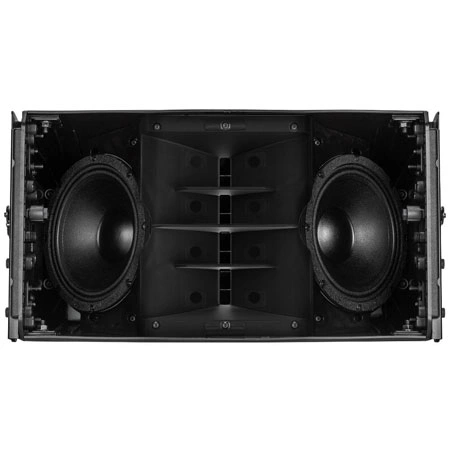

Equipped with dual 8-inch woofers and a high-performance 3-inch titanium compression driver, the HDL 28-A ensures exceptional clarity and definition across the frequency spectrum. Its advanced, time-coherent waveguide is the result of extensive research and development, providing consistent coverage and accurate phase alignment.

Built on the proven design philosophy of the HDL 30-A series, the HDL 28-A features a rugged composite enclosure, zero-degree phase response, and an ultra-linear amplitude response for natural, distortion-free sound reproduction. A powerful 2200-watt Class-D amplifier delivers impressive output levels, achieving up to 135 dB SPL while maintaining excellent audio clarity.

The system utilizes state-of-the-art transducers from RCF, incorporating lightweight neodymium magnets to reduce overall weight without compromising performance. Despite its high acoustic output, the HDL 28-A remains remarkably easy to handle, transport, and fly.

For extended low-frequency performance, the HDL 36-AS serves as the ideal flyable subwoofer companion, perfectly complementing the HDL 28-A array system for full-range, high-impact sound reinforcement.

RCF HDL 28-A Features

• 2200W Two Way Amplifier
• 135 dB Max SPL
• 48 kHz, 32 bit DSP processing
• RDNet Networked Management
• 2 x 8" Neodymium Woofers, 2.5" voice coil
• 1.4" Titanium Compression Driver, 3.0" voice coil
• Exclusive FiRPHASE technology on-board
• 750 Hz Crossover Point

RCF HDL 28-A Specification

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 50 Hz - 20000 Hz
• Max SPL @ 1m: 135 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 15°

TRANSDUCERS

• Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
• Woofer: 2 x 8'' neo, 2.5'' v.c

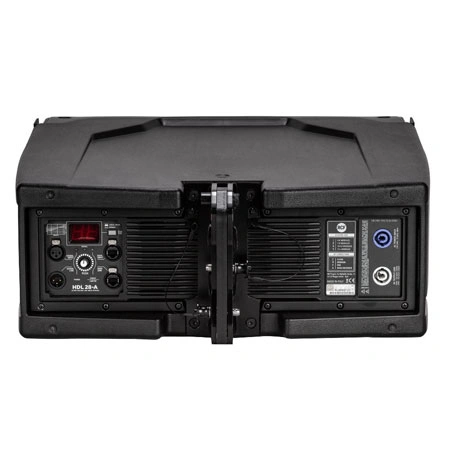

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: +4 dBu

PROCESSOR SECTION

• Crossover Frequencies: 750 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Preset, RDNet bypass
• RDNet: Onboard

POWER SECTION

• Total Power: 2200 W Peak, 1100 W RMS
• High frequencies: 600 W Peak, 300 W RMS
• Low frequencies: 1600 W Peak, 800 W RMS
• Cooling: Forced
• Connections: Powercon IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: PP Composite
• Hardware: Array fittings
• Handles: 2 Side
• Grille: Steel
• Color: Black, White

SIZE / WEIGHT

• Height: 294 mm / 11.57 inches
• Width: 569 mm / 22.4 inches
• Depth: 491 mm / 19.33 inches
• Weight: 20.6 kg / 45.42 lbs

SHIPPING INFORMATION

• Package Height: 375 mm / 14.76 inches
• Package Width: 650 mm / 25.59 inches
• Package Depth: 500 mm / 19.69 inches
• Package Weight: 23.6 kg / 52.03 lbs

  What is the RCF HDL 28-A?
A: The RCF HDL 28-A is a compact, bi-amped, 2-way active touring line-array loudspeaker designed for professional sound reinforcement in both indoor and outdoor environments. It is optimized for high output, clarity, and excellent vocal intelligibility.

  What applications is the HDL 28-A best suited for?
A: The HDL 28-A is ideal for:

• Live concerts and touring productions
• Corporate events and conferences
• Houses of worship
• Outdoor festivals
• Permanent installations
• Rental and production companies

  How powerful is the built-in amplifier?
A: The HDL 28-A includes a high-efficiency 2200-watt Class-D amplifier, delivering exceptional clarity and dynamics with a maximum sound pressure level of up to 135 dB SPL.

  Is the HDL 28-A suitable for outdoor use?
A: Yes. The cabinet is built from a durable composite material designed to withstand demanding touring and outdoor conditions while maintaining consistent acoustic performance.

  How heavy is the HDL 28-A?
A: Despite its high acoustic output, the HDL 28-A is remarkably lightweight thanks to its neodymium transducers and composite enclosure, making it easy to transport, rig, and fly.

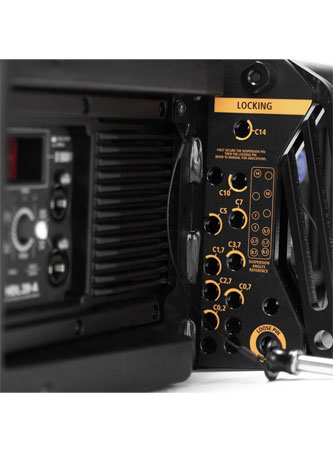

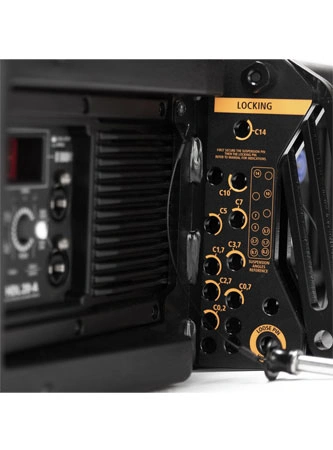

  Can the HDL 28-A be flown in an array system?
A: Yes. The HDL 28-A is designed specifically for flying in line-array configurations, offering fast and secure rigging for professional setups.

  What subwoofer pairs best with the HDL 28-A?
A: The HDL 36-AS is the ideal flyable subwoofer companion, providing extended low-frequency performance and seamless integration with the HDL 28-A array system.

  Does the HDL 28-A require an external amplifier or controller?
A: No. The HDL 28-A is a fully active system with onboard amplification and DSP, eliminating the need for external amplifiers or processors.
