Product Description for the RCF dB Technologies DVX DM12

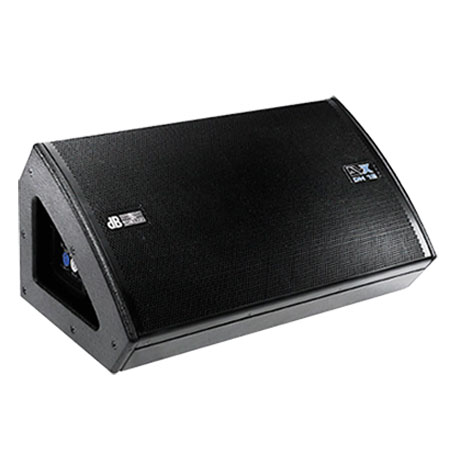

The DVX DM12 is an active bi-amped stage monitor. Powerful, assertive, and engineered for professional applications, it is the perfect choice for midsized to large stages.

Featuring a discrete, unobtrusive design, the ultra low-profi le enclosure sports a high-performance 12" neodymium woofer paired with a 1.4" neodymium compression driver and rotatable aluminum CD horn precision matched for on-stage monitoring.

Unlike conventional multifunctional speakers, the DVX DM 12 is a prograde performer developed specifically for use as a floor monitor. Optimized to resist feedback even at extremely high levels, it delivers the true-to-nature response and dynamic balance that today's artists demand.

The integrated digipro digital power amps deliver the requisite output. The switched-mode power supplies with PFC ensure touring rigs get all the juice they need to perform at their peak even when a venue's mains power is weak and voltage is low.

Key Features:

Active Stage Monitor 1500 Watt
The onboard controller encompasses an active equalizer, active x-over including phase and time alignment, limiters, andswitchable system presets that adapt the monitor's performance to suit the given application.

Made of rugged multiplex and coated with tough black lacquer, the cabinet sets up at two different angles.

It is also equipped with a pole mount, enabling the DVX DM12to be set on a tripod or speaker pole.

Specifications:

TECHNICAL DATA

• Speaker Type: 2-Way Active Stage Monitor

ACOUSTICAL DATA

• Frequency Response [-10dB]: 55 - 20.000 Hz
• Frequency Response [+/- 3dB]: 68 - 19.000 Hz
• Max SPL: 131 dB
• HF: 1.4 "
• Type HF: Neodymium Compression Driver
• Voice Coil HF: Titanium 2.5 "
• Directivity: 40x90
• Horn: CD Horn Aluminium
• Rotatable Horn: Yes
• LF: 12 "
• Type LF: Neodymium
• Voice Coil LF: 3 "

AMPLIFIER

• Amp Technology: Digipro®
• Amp Class: Class D
• Power RMS: 750 W
• Peak Power: 1500 W
• Cooling: Convection

PROCESSOR

• Controller: DSP 24 Bit/48 kHz
• System Presets: Flat, Monitor
• Limiter: RMS, Peak. Thermal, Multiband
• Crossover Frequency MF-HF: 1320 Hz
• Slope MF-HF: 24 dB/Octave

INPUT MECHANICS

• Housing: Multiplex birch plywood
• Housing Design: Low Profile Multifunctional
• Angles Up: 35, 55 °
• Rigging Points: 6x M10 4x Quick-Relase Pins
• Width: 660 mm (14.8 in)
• Height: 305 mm (25 in)
• Depth: 378 mm (15.8 in)
• Weight: 17.5 kg (55.12 lbs)
