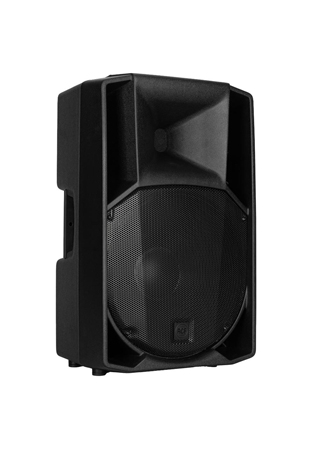

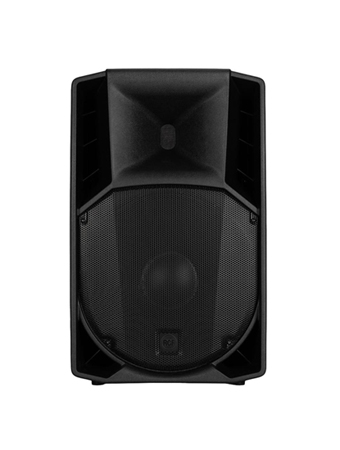

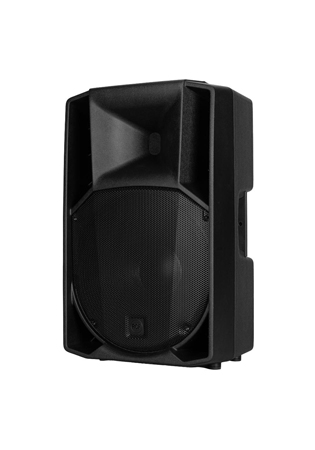

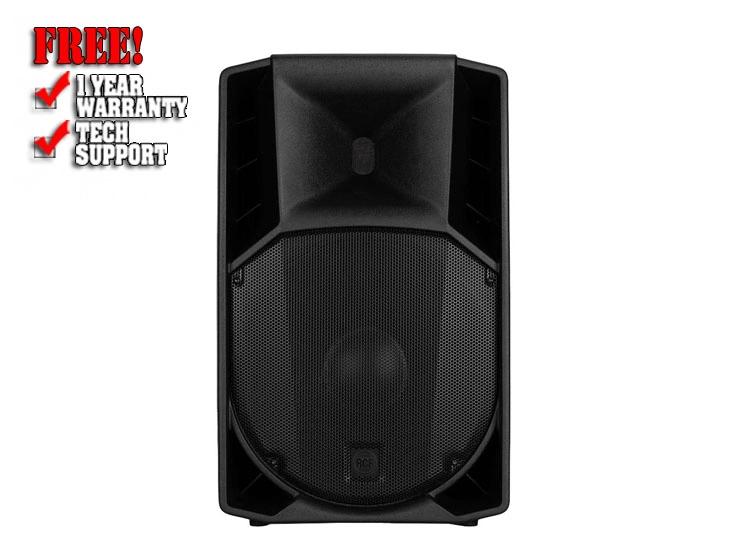

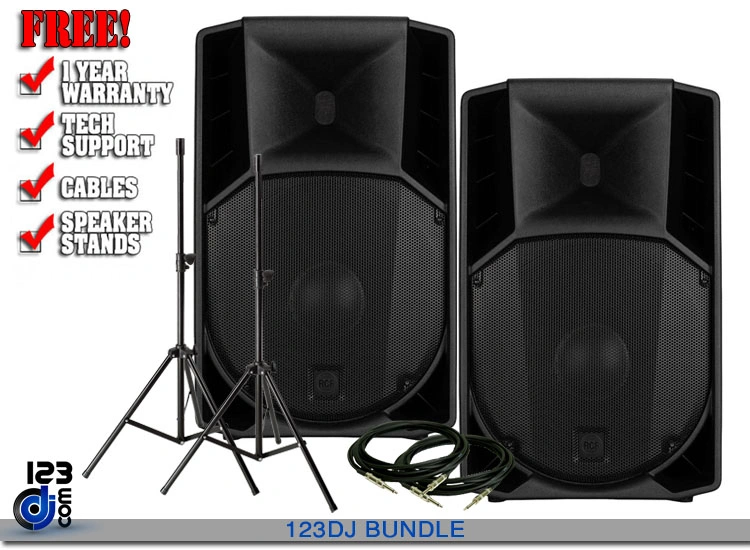

RCF ART 735-A MK5 15-inch 1400W Powered Speaker

Description

RCF ART 735-A MK5 is a unique product in its category. The 3,0" compression driver offers unique vocal clarity and sound projection. The 15" woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

Powerful Class D Amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

Superior Transducers

The ND840 Compression Driver in pure Titanium with a 3" voice coil allows a crossover point at only 800 Hz. This allows a better impulse response, fast decay, and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.

Potent Woofer

The low-frequency transducer is a high-power 15'' woofer with a 3" voice coil that delivers tight, punchy bass. Reproduction of the mid-bass frequencies is accurate, transparent, and free from distortion.

Experience The Depths of Sound

XBoost unlocks the profound low frequencies concealed within ART speakers. With a simple activation from the speaker's rear panel, immerse yourself in a rich tapestry of bass that pounds with exceptional clarity and control. Whether you're seeking subtle background music or an enriched sonic experience for your mix, XBoost delivers an astonishing perception of deepened bass, ensuring that every note retains its pristine essence and keeping the woofer excursion under control.

Your Ideal Stage Partner

The ART 7 speakers are the perfect choice for musicians and sound provider alike. Their cabinets are molded from a proprietary polypropylene composite engineered to quell vibrations, even at the highest volume levels. This translates to exceptional reliability and resilience under rigorous stage conditions.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Bring ART With You

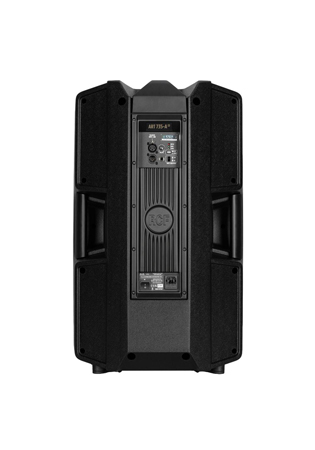

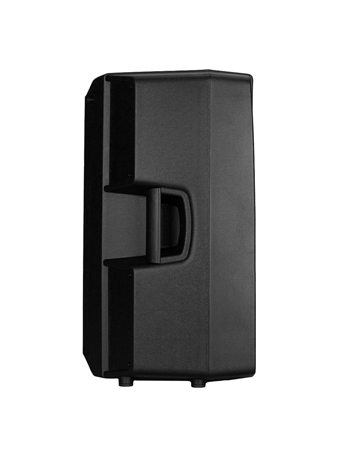

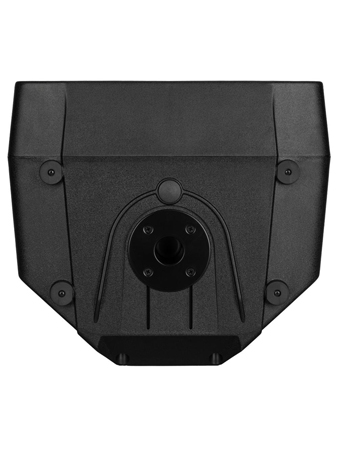

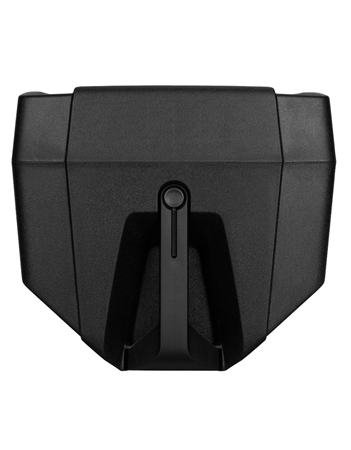

The sturdy, ergonomic cabinet is easy to carry, thanks to either the handle at the top or the practical handles on both sides. The base of each speaker includes a steel pole socket for mounting on a stand or on a subwoofer pole. Stability and safety are assured. The rear of the cabinet is shaped to also be used as a floor monitor. Internal reinforcement prevents any deformation of the cabinet.

RCF ART 735-A MK5 15-inch 1400W Powered Speaker Features:

• 132 dB Max SPL
• 1400 WATT 2-way peak power
• 90° x 60°, Wide dispersion constant directivity horn
• Innovative DSP Processing
• 3,0" Titanium diaphragm Compression Driver
• 15" Woofer
• FiRPHASE Technology
• XBOOST Low Frequencies Enhancer

RCF ART 735-A MK5 15-inch 1400W Powered Speaker Specifications:

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 45 Hz ÷ 20000 Hz
• Max SPL @ 1m: 132 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 60°

TRANSDUCERS

• Compression Driver: 1 x 1.0'' neo, 3.0'' v.c
• Woofer: 15'', 3.0'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu
• Mic. Input Sensitivity: -32 dBu

PROCESSOR SECTION

• Crossover Frequencies: 800
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, MIC/Line

POWER SECTION

• Total Power: 1400 W Peak
• High frequencies: 400 W Peak
• Low frequencies: 1000 W Peak
• Cooling: Convection
• Connections: VDE

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Hardware: 2 x M10
• Handles: 1 on top, 1 each side
• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 708 mm / 27.87 inches
• Width: 437 mm / 17.2 inches
• Depth: 389 mm / 15.31 inches
• Weight: 21.4 kg / 47.18 lbs

SHIPPING INFORMATION

• Package Height: 750 mm / 29.53 inches
• Package Width: 500 mm / 19.69 inches
• Package Depth: 440 mm / 17.32 inches
• Package Weight: 24.4 kg / 53.79 lbs

Most Popular Accessories & Related Items

<

RCF ART 732-A MK5

$899.99

RCF ART 745-A MK5

$1299.99

RCF ART 715-A MK5

$699.99

RCF ART 712-A MK5

$599.99

RCF ART 710-A MK5

$549.99

RCF ART 708-A MK5

$499.99

>

Frequently Asked Questions (FAQ)

What is the power output of the RCF ART 735-A MK5?

The RCF ART 735-A MK5 delivers up to 1400W peak power, providing powerful, clean, and distortion-free professional audio performance.

Is the RCF ART 735-A MK5 suitable for DJs and live events?

Yes, it is ideal for DJs, clubs, weddings, concerts, and live events thanks to its high SPL output and deep bass response.

What size woofer does the RCF ART 735-A MK5 have?

It features a 15-inch high-performance woofer designed for strong low frequencies and punchy bass output.

Does the RCF ART 735-A MK5 include DSP processing?

Yes, it includes advanced DSP processing for improved sound clarity, system protection, and optimized audio performance.

Can I use the RCF ART 735-A MK5 without an external amplifier?

Yes, it is a fully active powered speaker with a built-in amplifier, so no external amp is required.

What makes the RCF ART 735-A MK5 different from smaller speakers?

The 15-inch woofer delivers deeper bass, higher output, and better coverage for medium to large venues compared to smaller speakers.

Is the RCF ART 735-A MK5 good for outdoor events?

Yes, it performs exceptionally well for outdoor events, mobile DJ setups, and professional live sound applications.
