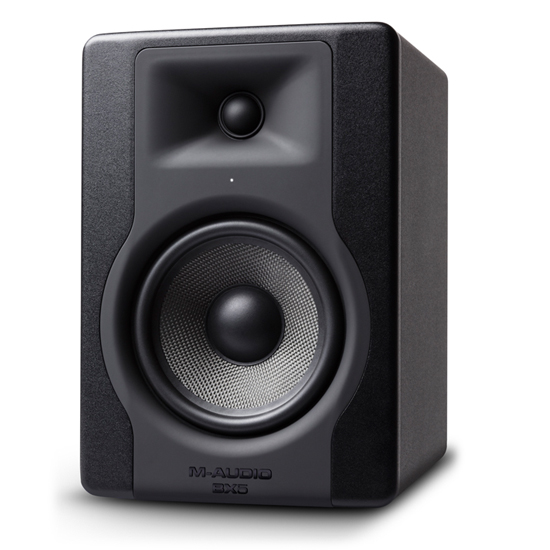

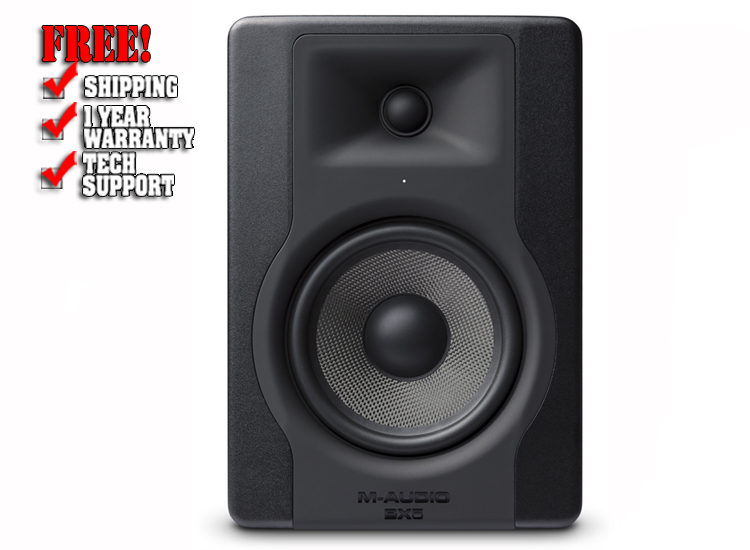

M-Audio BX5 D3 5" Powered Studio Monitor

Low-quality Monitoring = Low-quality Mix

This studio monitor pumps 100 powerful watts through a 5" military-grade Kevlar woofer and 1" silk dome tweeter to deliver the clarity and detail you need to make proper mixing decisions. A custom waveguide ensures accurate dispersion for an incredibly tight soundstage. An optimized rear-mounted port produces defined low-end response with bass extension down to 52Hz. And if your room's a problem, you can adapt the BX5 D3 to your space with the Acoustic Space Control.

Built to deliver critical detail, nuance, and dynamic accuracy

The BX5 D3 was meticulously engineered to provide accurate sound reproduction. A high-current, high-headroom Class A/B amplifier drives a 5" military-grade Kevlar woofer and 1" silk dome tweeter. The speaker features a bi-amplified design, so it exhibits a sound that's both powerful and precise. A rear-mounted port was built to a specific length and diameter to produce deep, defined bass. A custom waveguide eliminates unwanted high-frequency scatter, ensuring that the BX5 D3's imaging is spot on. And don't worry about positioning ? a front-panel LED shines brightly when the BX5 D3 is at the ideal monitor angle.

Tailor your studio monitor to your mixing environment

Every room is different, and the BX5 D3 takes this into account. Its Acoustic Space Control tailors your monitor to your mix space, ensuring that you experience honest, accurate sound. Thanks to this useful feature, you can eliminate those pesky low frequencies and tame problematic standing waves. Use a set of these monitors, and you'll be amazed at how your mixes sound ? they'll sound great in the studio, on your earbuds, and in your car.

Features

• 100W active studio monitor with 5" military-grade Kevlar low-frequency driver and 1" silk dome tweeter
• Bi-amplified design delivers a sound that's both powerful and precise
• Custom waveguide ensures accurate dispersion for an incredibly tight soundstage
• Optimized rear-mounted port produces defined low-end response with bass extension down to 52Hz
• Acoustic Space Control tailors your monitor to your mix space
• Volume control for dialing in the perfect playback level
• Balanced combo input allows for flexible installation
• Front-panel LED shines brightly when the speaker is positioned at an ideal angle

Specification:

• Powered: Yes
• Power Configuration: Bi-amped
• LF Driver Size: 5" woofer
• LF Driver Type: Kevlar with rubber surround
• HF Driver Size: 1" tweeter
• HF Driver Type: Silk dome
• LF Driver Power Amp: 60W
• HF Driver Power Amp: 40W
• Total Power: 100W Class AB
• Frequency Response: 52Hz-35kHz
• Crossover Frequency: 2.5kHz
• Maximum Peak SPL: 110 dB SPL

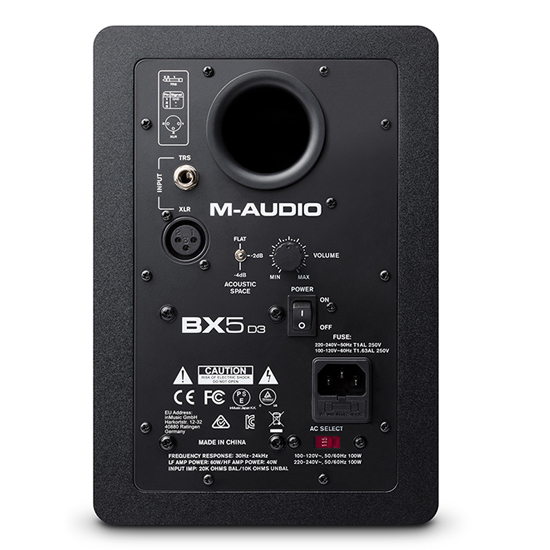

• Input Types: 1 x 1/4" TRS, 1 x XLR
• Features: Acoustic space bass response switch
• Enclosure Type: Rear Ported
• Enclosure Material: Vinyl laminated MDF
• Height: 10"
• Width: 6.9"
• Depth: 7.8"
• Weight: 12.3 lbs.
• Manufacturer Part Number: BX5 D3
