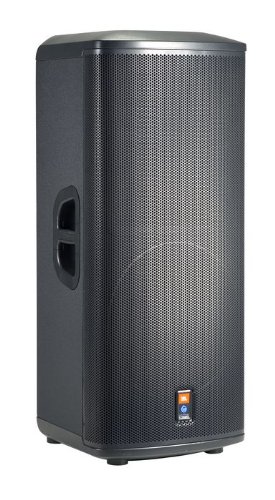

PRX535

Differential Drive® woofer
Horn loaded mid range for sonic accuracy and enhanced pattern control
1.5" annual polymer diaphragm compression driver
Class-D, Crown® digital amplifier lightweight, compact, multi channel, heritage
DSP input section with crossover, dynamic limiting, component optimization, selectable system EQ
Professional XLR line and ¼" Mic/Instrument inputs, with loop through
Illuminated logo for clear Power-On status
Integrated pole mount socket
DuraFlex™ coated plywood construction
Polypropylene end-caps enhance durability
Wrap around heavy duty steel grille provides protection without obstructing performance.
Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
Frequency Range: 39 Hz – 20 kHz
Frequency Response: 46 Hz – 20 kHz
Nominal Impedance: 64 K Ohms (balanced), 32 K Ohms (unbalanced)
Power Capacity: 1300 W peak
Rated Maximum SPL: 134 dB SPL peak
Coverage Pattern: 90° x 50° nominal
Dimensions (H x W x D): 1070 mm x 440 mm x 465 mm (42 in x 17.25 in x 18.25 in)
Weight: 33.5 kg (74 lb)
High Frequency Driver: 1 x JBL 2408H, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
Low Frequency Driver: 1 x JBL 265F, 380 mm (15 in) Differential Drive® woofer
Image of back
