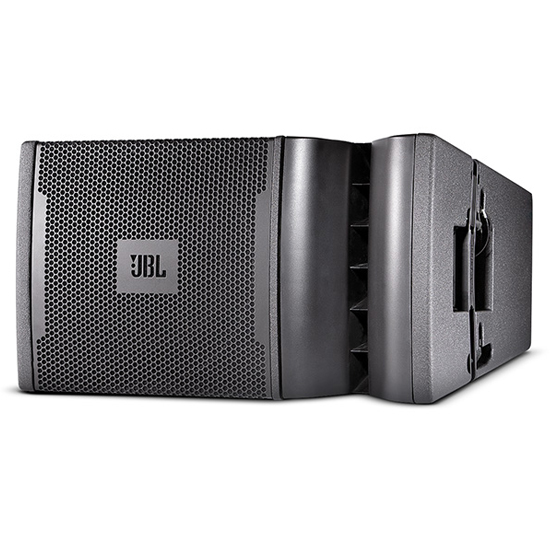

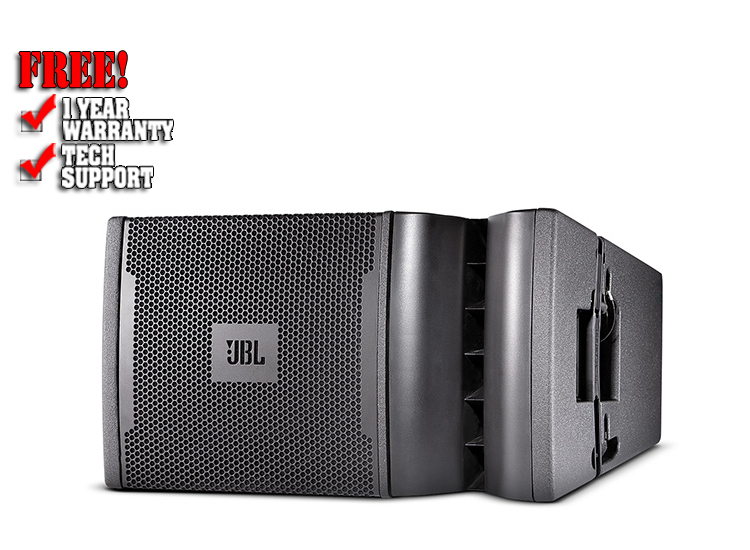

JBL VRX932LAP

Dual 10-inch Powered Line Array Loudspeaker

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

Features

• Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
• JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
• VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
• Constant Curvature waveguide for unprecedented array coherence.
• Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
• Array Configuration Selector permits "array shading".

Specifications

• Power Rating : 1750 Watts Peak875 Watts Continuous
• Frequency Range (-10dB) : 57 Hz - 20 kHz
• Dimensions (H x W x D) : 349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in)
• Frequency Response : 75 Hz - 20 kHz (+/-3db)
• Maximum SPL (1m) : 136 dB SPL
• Coverage Pattern : 100 x 15 nominal
• DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) : LF: 750 Watts, HF: 125 Watts
• DPC-2 Output Section : LF: Dual-Bridged Technology™, Class D

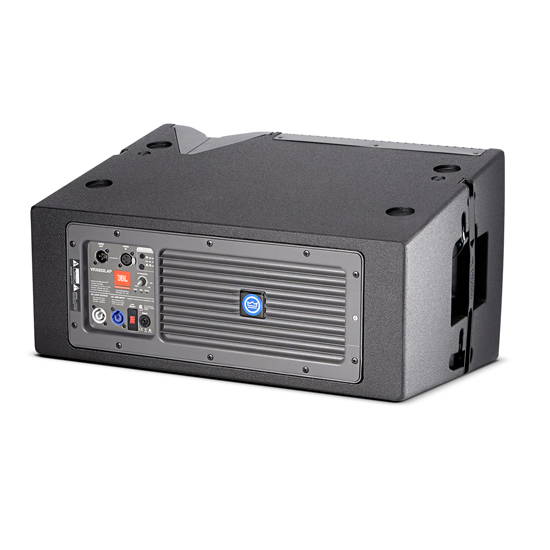

• Inputs : XLR with loop through
• LF Driver : 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
• HF Driver : 3 x JBL 2408J, 38 mm (1.5 in)
• User Controls : Input Attenuator (0-16 dB)
• Signal Processings : DSP based, resident in Input Module
• AC Power Operating Range : 90-132 VAC or 216-264 VAC, 50/60 Hz
• AC Input Connector : Neutrik PowerCon (NAC 3MPA)
• AC Loop Through Connector : Neutrik PowerCon (NAC 3MPB)
• AC Current Requirements : 6A per system at 120V, 3A per system at 240V
• Enclosure : 25/15 mm, 11-ply birch plywood
• Suspension / Mounting : Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
• Finish : Black DuraFlex™ finish
• Grille : Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
• Net Weight (each) : 24 kg (52 lb)
• Optional Accessories : VRX-AF: Suspension array frame
• Outputs : 1 x XLR
• System Type : Constant Curvature 12" Two-Way Powered Line Array System
• Nominal Impedance : NA - amplification is integrated
