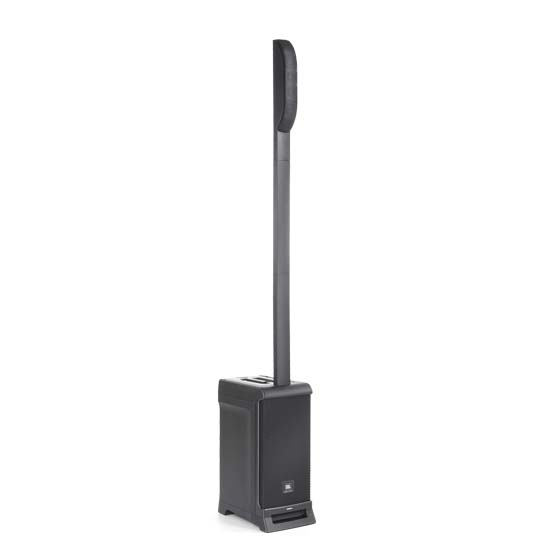

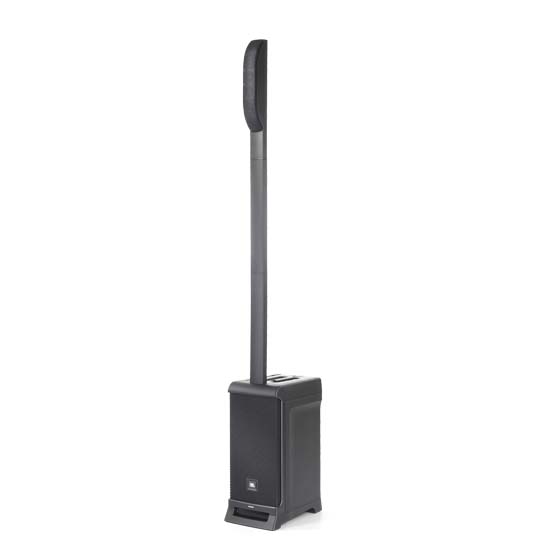

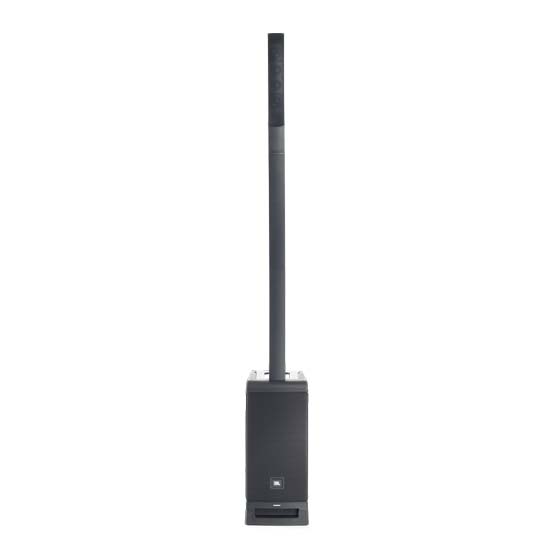

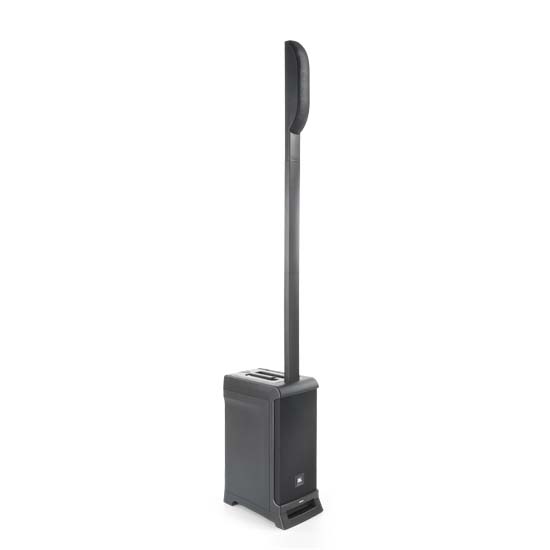

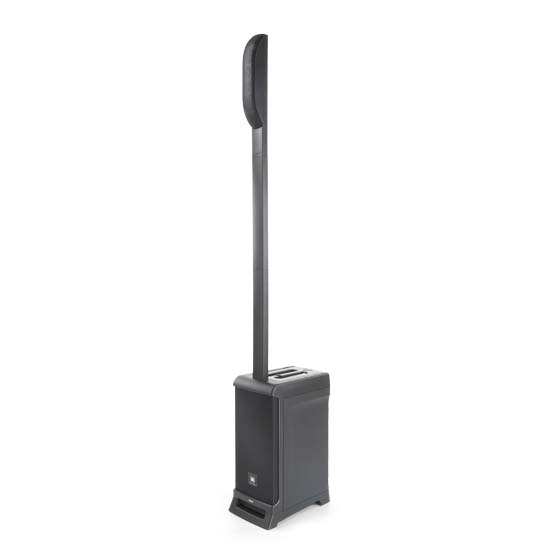

JBL IRX ONE

All-in-One Column PA with Built-In Mixer and Bluetooth Streaming

Advanced Acoustic Technology and Seamless Coverage

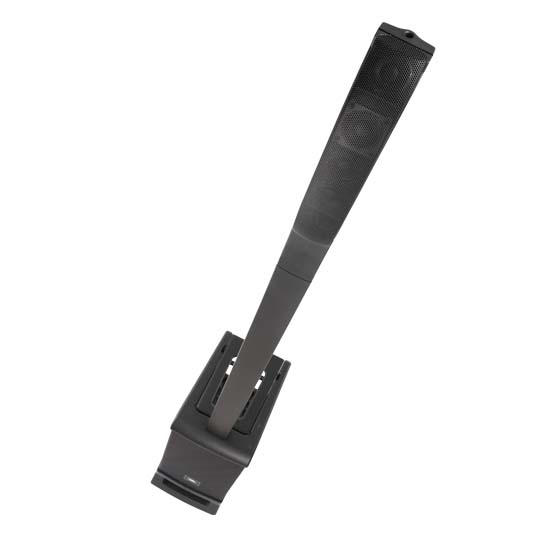

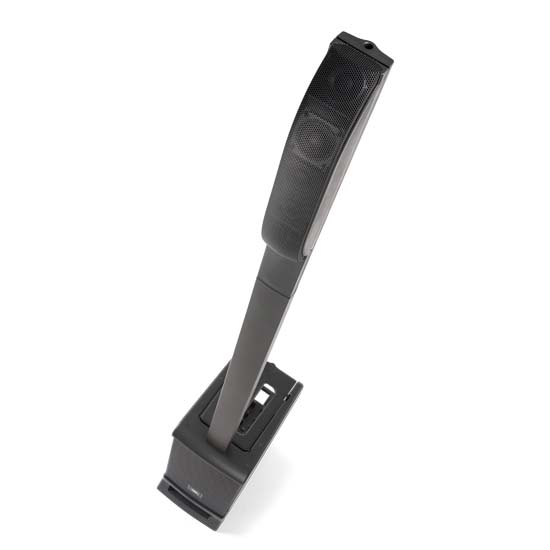

IRX ONE utilizes concert line array-inspired directivity control, resulting in a custom-tuned, C-shaped array. Featuring six 2" high-frequency drivers, the array delivers rich clarity, a wide sweet spot and seamless front-to-back coverage. The advanced 8" woofer features a bass-reflex design to ensure low-frequency response down to 40 Hz.

Ergonomically-Optimized Design

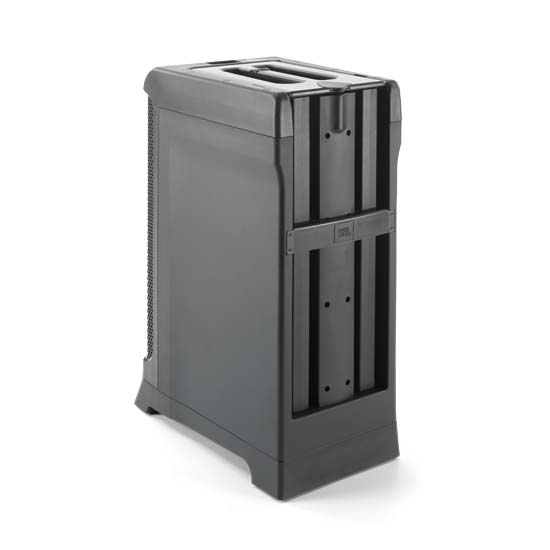

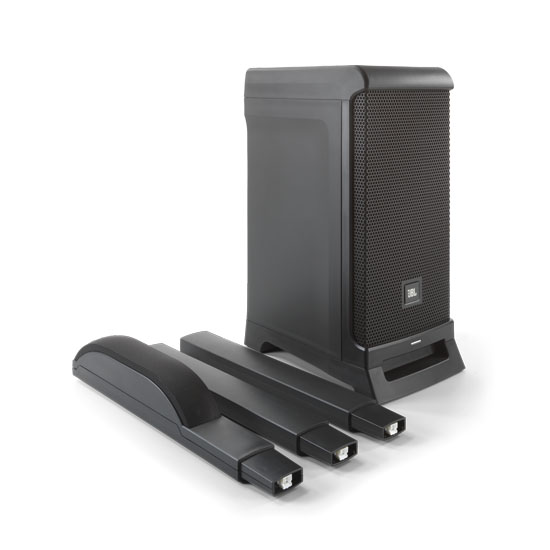

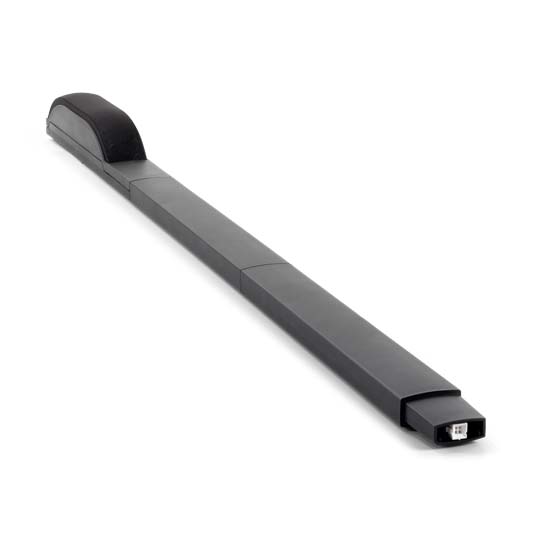

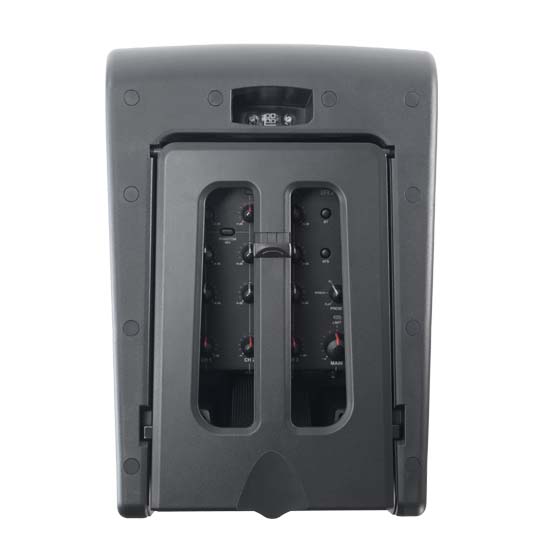

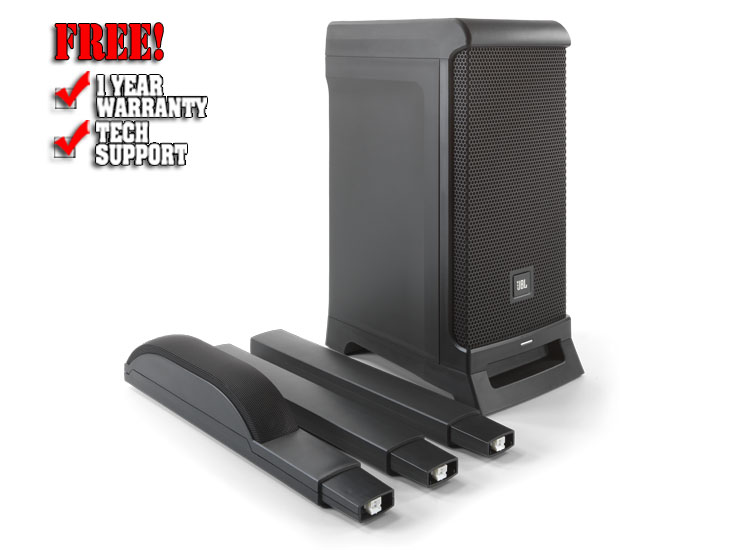

IRX ONE is easy to carry with one hand; sets up and tears down in seconds; and the ergonomically-optimized carry handle minimizes wrist strain. Additionally, column spacers and the array cabinet conveniently fit into the back of the base unit.

Simple-to-Manage 3-Channel Mixer

IRX ONE features a 3-channel mixer that supports the most popular connections, including ¼" and XLR inputs with included 48V phantom power and ¼" balanced mix-out. dbx automatic feedback suppression (AFS), 5 EQ presets and Soundcraft audio ducking ensure a professional experience from start to finish.

Integrated Bluetooth 5.0 Audio Streaming

Using the latest Bluetooth 5.0 audio streaming chipset, IRX ONE delivers premium audio performance and long-distance streaming.

Built for Durability

IRX ONE is built for long-lasting durability that includes JBL's rigorous 100-hour stress test, stringent road tests, and a complete three-year warranty.

Common Applications

JBL IRX ONE was created to be so simple-to-use that anyone from educators and presenters to hospitality or house of worship users can feel comfortable and confident using this system. Musicians, buskers and singer/songwriters also appreciate the plug-and-play design that gets them up and running and sounding great, right away.

Specifications:

• SYSTEM TYPE: Powered Column PA Speaker
• WOOFER SIZE: 8 Inch
• TWEETER SIZE: 2 Inch
• TWEETER COUNT: 6
• MAX SPL: 118dB(peak)
• FREQ RANGE -10: 40Hz ~ 20KHz @ 4pi
• FREQ RANGE -3: 50Hz ~ 18KHz @ 4pi
• HOR DISPERSION: 160°
• VERT DISPERSION: 80°
• POWER RATING: 1300W Peak
• AC POWER INPUT: 100V - 120V or 220 - 240V
• INPUT IMPEDENCE:
  • 4.4kΩInput Mic
  • 1MΩ balanced Hi-Z Jack
• INPUT GAIN MIC: 55dB
• INPUT GAIN HI Z: 48dB
• CROSSOVER FREQ: 260Hz
• I/O:
  • 2 - Mic/line XLR Combo
  • 1 - HiZ In - 6.3mm jack
  • 1 - Mix Out - 6.3mm jack
  • 1 - Bluetooth SBC
• CABINET: PP
• GROSS WEIGHT: 18.39kg(40.5 lbs)
• NET WEIGHT: 15.5 kg (34.1 lbs)
• PRODUCT DIMS: (L x W x H):267 x 400 x 597 mm (10.5 x 15.73 x23.5 in)
• SHIPPING DIMS:(L x W x H):395 x 519 x 725 mm(15.6 x 20.4 x 28.6 in)
