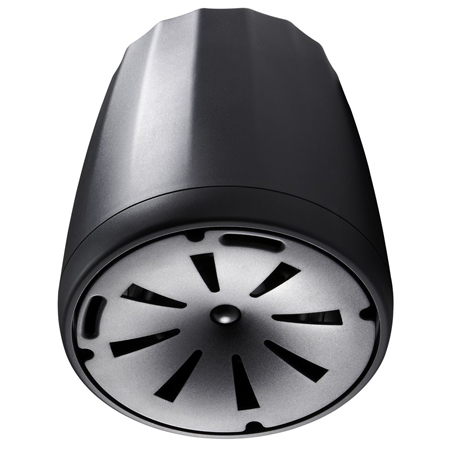

JBL Control 65 P/T Compact Pendant Speaker

Description

JBL Control 65 P/T Compact Fullrange Speaker

Control 65P/T incorporates JBL's exclusive RBI Radiation Boundary Integration technology to provide very consistent, wide coverage throughout the listening space.

Features:

• RBI Radiation Boundary Integrator Technology
• 120 conical coverage
• 5.25" (130 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
• 75 Watts, 8 ohms and 60W multi-tap transformer

Specifications:

• Frequency Response (-10 dB): 55 Hz-20 kHz
• Frequency Range (+-3 dB): 78 Hz-18 kHz
• Power Capacity: 75 Watts Continuous Pink Noise Power(with 300 Watts peaks); 150 Watts Continuous Program Power
• Nominal Sensitivity: 86 dB
• Nominal Coverage Angle: 120 degrees (+20degrees/-10degrees)
• Directivity (Q): 5.3
• Directivity Index (DI): 7.2 dB
• Rated Maximum SPL @ 1m: 105 dB continuous pink noise, 111 dB peak
• Rated Impedance: 8 ohms
• Transformer Taps: 70V: 60W, 30W, 15W and 7.5W, 100V: 60W, 30W, 15W
• Transformer Insertion Loss: 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
• LF Driver: 130 mm (51/4 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
• HF Driver: 20 mm (3/4 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
• Enclosure Material: High impact polystyrene

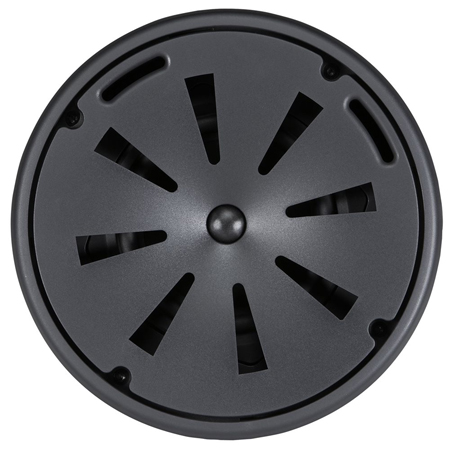

• Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
• Environmental : Exceeds Mil Spec 810 for humidity, salt spray, temperature and UV. IP44 capability per IEC 529 – splashproof rating.

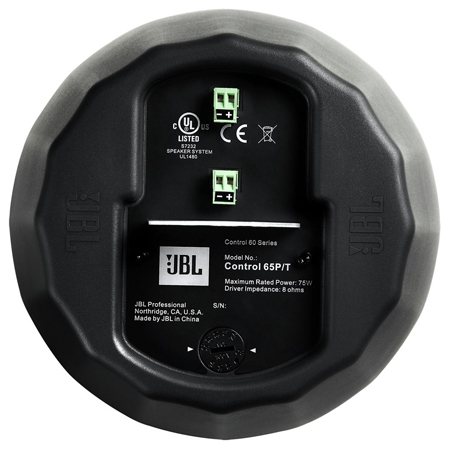

• Termination: Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
• Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
• Safety Agency Ratings: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 and Class 3426-81.
• Dimensions: 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
• Net Weight (ea): 3.7 kg (8 lbs)
• Included Accessories: Two suspension cable systems (see "Suspension", above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors
