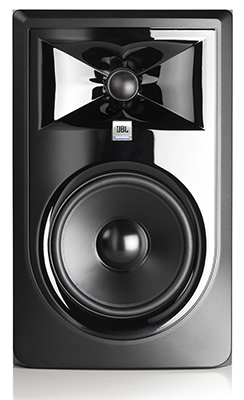

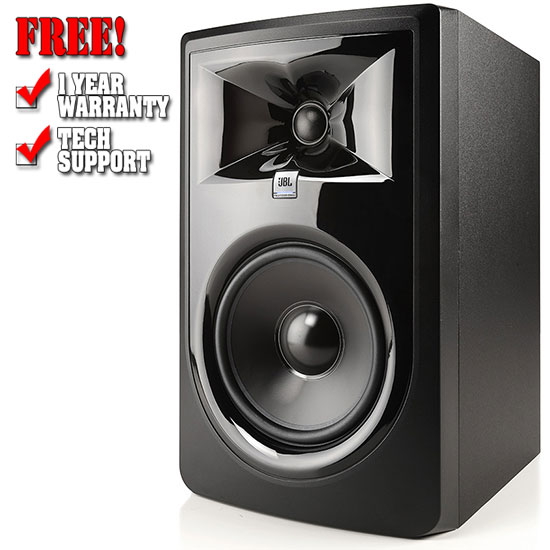

JBL 306P MkII 6-inch Powered Studio Monitor

Description:

The next-generation JBL 306P MkII powered studio monitor brings legendary JBL performance to every studio. Featuring the revolutionary Image Control Waveguide and refined transducers, it delivers stunning detail, precise imaging, a wide sweet spot, and impressive dynamic range—perfect for modern production environments.

JBL 306P MkII 6-inch Powered Studio Monitor Features

• Patented Image Control Waveguide for detailed imaging and a broad sweet spot
• Next-generation JBL transducers for improved transient response and linearity
• Slip Stream™ low-frequency port for enhanced bass performance
• Dual Class-D amplifiers delivering 112W total power
• Boundary EQ for room-based low-frequency adjustments
• HF Trim switch for high-frequency tuning
• XLR and 1/4" TRS inputs with input sensitivity switch
• Designed with JBL Linear Spatial Reference criteria
• 100-hour full-power tested for reliability
• Sleek, modern design

Why Choose MkII?

The JBL 3 Series gained global recognition for quality and value. The MkII version enhances performance with improved transducers, added features, and refined design—delivering better sound and broader usability for modern studios.

Patented Image Control Waveguide

Experience exceptional detail and depth with JBL's Image Control Waveguide. It ensures seamless transition between drivers, providing accurate imaging, a wide sweet spot, and consistent sound—even off-axis.

Your Mix is Only as Good as Your Monitors

The 306P MkII features a 6.5" woofer and 1" neodymium tweeter for deep bass and detailed highs. Enhanced design improvements ensure low distortion, better dynamics, and accurate sound reproduction for critical listening.

Big Sound Out of the Box

With dual Class-D amplifiers, the 306P MkII delivers powerful output and wide dynamic range. Perfect for music production, podcasting, and content creation—just plug in and start working.

Tailored Sound for Your Studio

Adjust your sound with Boundary EQ and HF Trim controls to match your room acoustics. This ensures accurate monitoring whether placed on desks or near walls.

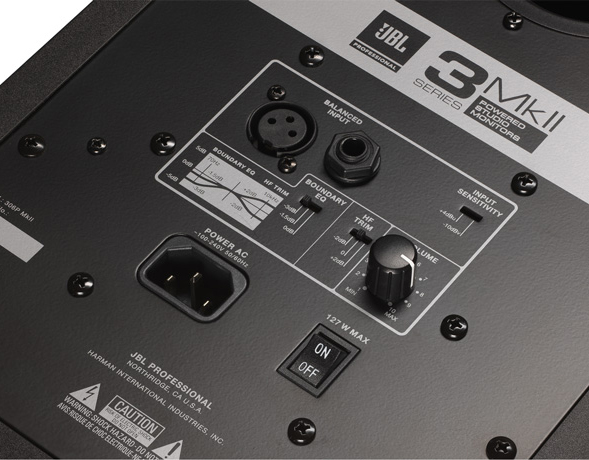

Flexible Connectivity

Equipped with balanced XLR and 1/4" TRS inputs, along with adjustable input sensitivity, the 306P MkII integrates easily into any professional setup.

JBL Professional Reliability

Backed by over 70 years of JBL expertise, the 306P MkII undergoes rigorous 100-hour testing to ensure long-lasting performance and consistent sound quality.

JBL 306P MkII 6-inch Powered Studio Monitor Specifications

• LF Driver Size: 165mm (6.5")
• HF Driver Size: 25mm (1")
• HF Driver Type: Soft dome
• Crossover: 1425Hz 4th order acoustic Linkwitz-Riley
• OK for Use Near Magnetically Sensitive Equipment: Yes
• Input Sensitivity (-10dBV Input): 92dB / 1m
• Power Configuration: Bi-amplified
• HF Driver Power Amp: 56W, Class-D
• LF Driver Power Amp: 56W, Class-D
• Frequency Response (±3dB): 47Hz – 20kHz
• Frequency Range (-10dB): 39Hz – 24kHz
• Low Frequency Extension (-10dB): 39Hz
• Maximum Continuous SPL: 92dB
• Maximum Peak SPL: 110dB
• Maximum Peak Input Level (-10dBV / +4dBu): +6dBV / +20.3dBu
• System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
• Electrical Distortion Criteria: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
• Signal to Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
• Coverage (Horizontal x Vertical): 120° x 90°
• Analog Input Types: 1 x XLR female, 1 x TRS female, balanced
• HF Trim Control: -2dB, 0dB, +2dB
• Boundary EQ: LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
• AC Input Voltage: 100 – 240VAC (±10%), 50 / 60Hz
• Enclosure Type: Ported
• Enclosure Construction: 15mm MDF
• Enclosure Finish: Matte black PVC
• Baffle Construction: Injection-molded structural ABS
• Cabinet Dimensions (H x W x D): 361 x 224 x 282mm (14.2" x 8.8" x 11.1")
• Display Carton (H x W x D): 408 x 285 x 328mm (16.1" x 11.2" x 12.9")
• Shipping Carton (H x W x D): 418 x 292 x 338mm (16.5" x 11.5" x 13.3")
• Net Weight: 6.1 kg (13.42 lbs)
• Shipping Gross Weight: 7.25 kg (15.95 lbs)

Most Popular Accessories & Related Items

<

JBL 305P MkII

$199.99

JBL 308P MKII

$279.99

JBL LSR310S

$469.99

JBL 305P MkII Pair

$228.99

>

Frequently Asked Questions (FAQ)

What is the JBL 306P MkII 6-inch powered studio monitor?

The JBL 306P MkII is a professional 6-inch powered studio monitor designed for accurate sound reproduction in music production, mixing, and home studio environments.

Is the JBL 306P MkII a powered speaker?

Yes, it is a powered (active) studio monitor with built-in dual Class-D amplifiers, so no external amplifier is required.

How much power does the JBL 306P MkII deliver?

The monitor delivers 112 watts of total power through a bi-amplified system, providing strong output and dynamic range.

What makes the JBL 306P MkII suitable for studio use?

It features JBL's Image Control Waveguide, offering precise imaging, a wide sweet spot, and accurate sound, which is essential for mixing and production work.

What connectivity options does the JBL 306P MkII offer?

The monitor includes balanced XLR and 1/4-inch TRS inputs, making it compatible with audio interfaces, mixers, and professional audio equipment.

Can the JBL 306P MkII be used in home studios?

Yes, its compact size and accurate sound performance make it ideal for home, project, and professional studios.
